In running state, multiple kinds of state parameters can be displayed. The running display parameter
list is user defined, and each state variable function code can be added to the running display
parameter list as needed. A function code which has been added to the running display parameter list
can also be deleted or shifted.

5.3.3 Displaying fault information

The VFD enters fault alarm display state once fault signal is detected, and the keypad displays fault
code and fault information with TRIP indicator on the keypad turning on. Fault reset operation can be
carried out via STOP/RST key, control terminal or communication command.
The fault code will be kept displaying until fault is removed.

5.4 Operating the VFD through the keypad

You can perform various operations on the VFD by using the keypad, including entering/exiting menu,
parameter selection, list modification and parameter addition.

5.4.1 Entering/exiting menus

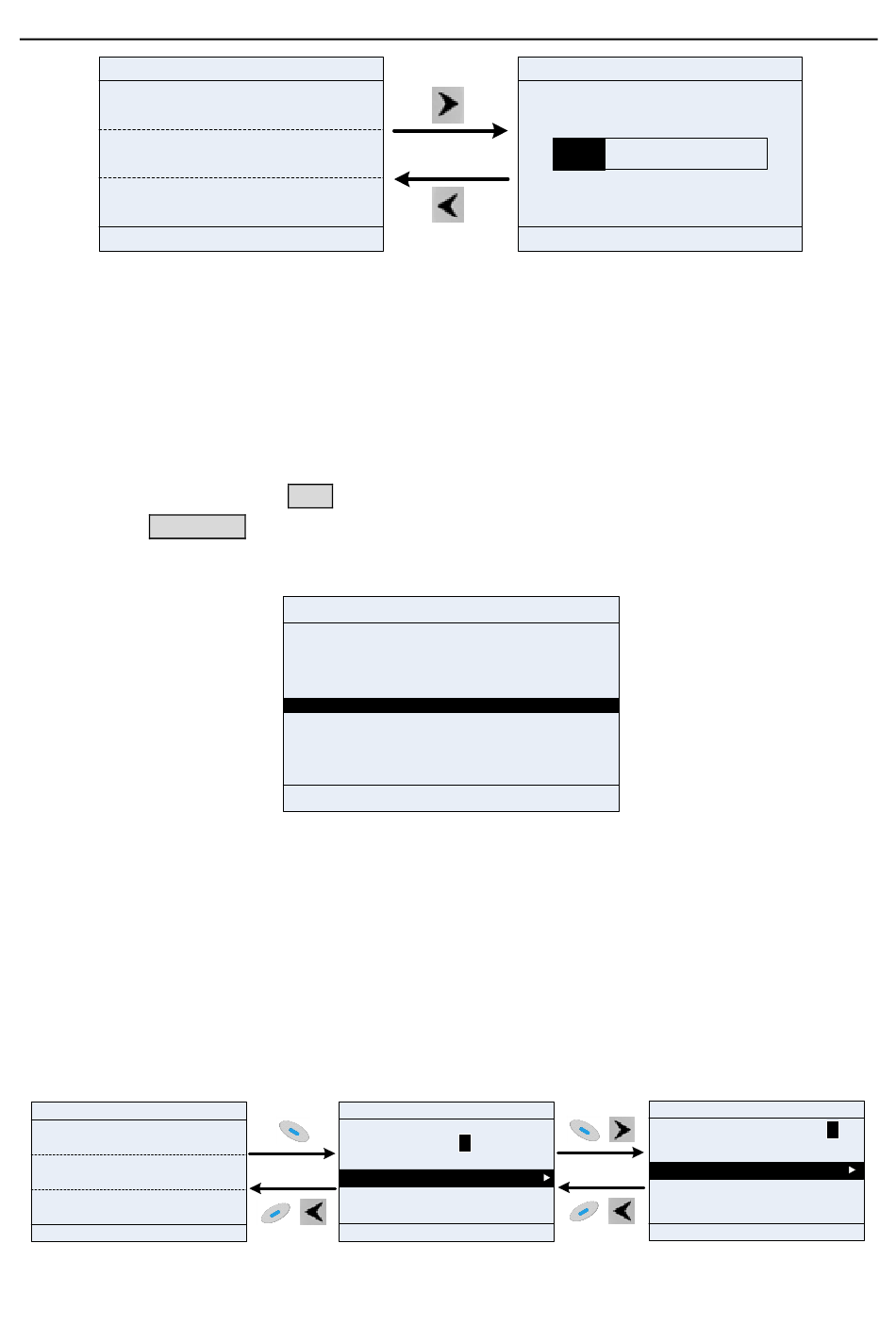

The keypad displays three main menus at the home interface by default: Parameter, About, and
Menu. The following figure shows how to enter the Parameter main menu and how to operate under
this main menu.
16:02:35 Fwd Local Ready
Set Freq
50.00
P17.00 Hz
DC Bus Volt
540.0
P17.11 V
HDIB/A/S4/3/2/1
000000
P17.12
Parameter About
The following figure shows how to enter the Menu main menu and operate under this main menu.
Local Run GD350
540.00
540.0
378
About
Menu
Figure 5-6 Running parameter display state
16:02:35
Fwd
Present fault type:
Fault code：
19：Current detection fault (ItE)
Back
Figure 5-7 Fault alarm display state
16:02:35
GD350
Function group:
P00: Basic Function
Back
Menu
Figure 5-8 Enter/exit menu diagram 1
16:02:35
DC Bus Volt
V
0.0
Back
Local GD350
Fault
19
Home
OK
Fwd Local Ready GD350
P00
Home Sele
