Goodrive350 series high-performance multifunction VFD
Item
2)
(3)
(4)
(5)
(6)
(7)

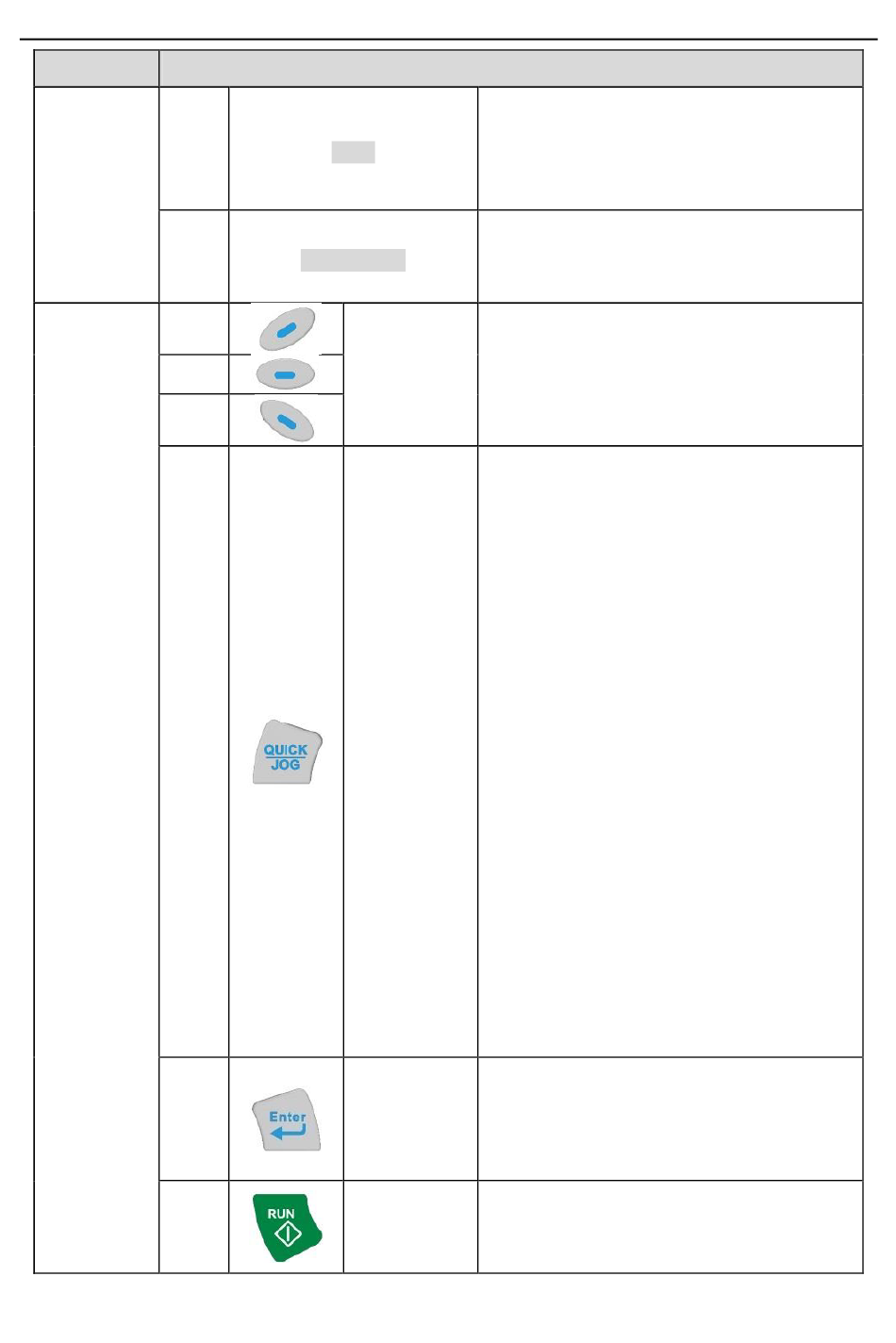

Key area
(8)
(9)
Instruction
TRIP
QUICK/JOG
Function key
Short-cut key
Confirmation
key
Running key
-35-
Fault indicator;
LED on – in fault state
LED off – in normal state
LED blinking – in pre-alarm state
Short-cut key indicator, which displays
different state under different functions, see
definition of QUICK/JOG key for details
The function of function key varies with the
menu;
The function of function key is displayed in
the footer
Re-definable. It is defined as JOG function
by default, namely jogging. The function of
short-cut key can be set by the ones of
P07.02, as shown below.
0: No function
1: Jogging (linkage indicator (3); logic : NO);
2: Reserved
3: FWD/REV switchover (linkage indicator
(3); logic: NC)
4: Clear UP/DOWN setting (linkage indicator
(3) logic: NC)
5: Coast to stop (linkage indicator (3); logic:
NC)
6: Switching running command reference
mode in order (linkage indicator (3); logic:
NC)
7: Reserved
Note: After restoring to the default value,
the default function of short-cut key (7) is
1.
The function of confirmation key varies with
menus, such as confirming parameter setup,
confirming parameter selection, and entering
the next menu.
Under keypad operation mode, the running
key is used for running operation or
autotuning operation.
Basic operation guidelines
