Goodrive350 series high-performance multifunction VFD
Indicator definition
Indicator Definition
LED1 State indicator
LED4 Power indicator
LED5
LED6 Error indicator
For details about the operation, see the Goodrive350 Series VFD Communication Expansion Card
Operation Manual.

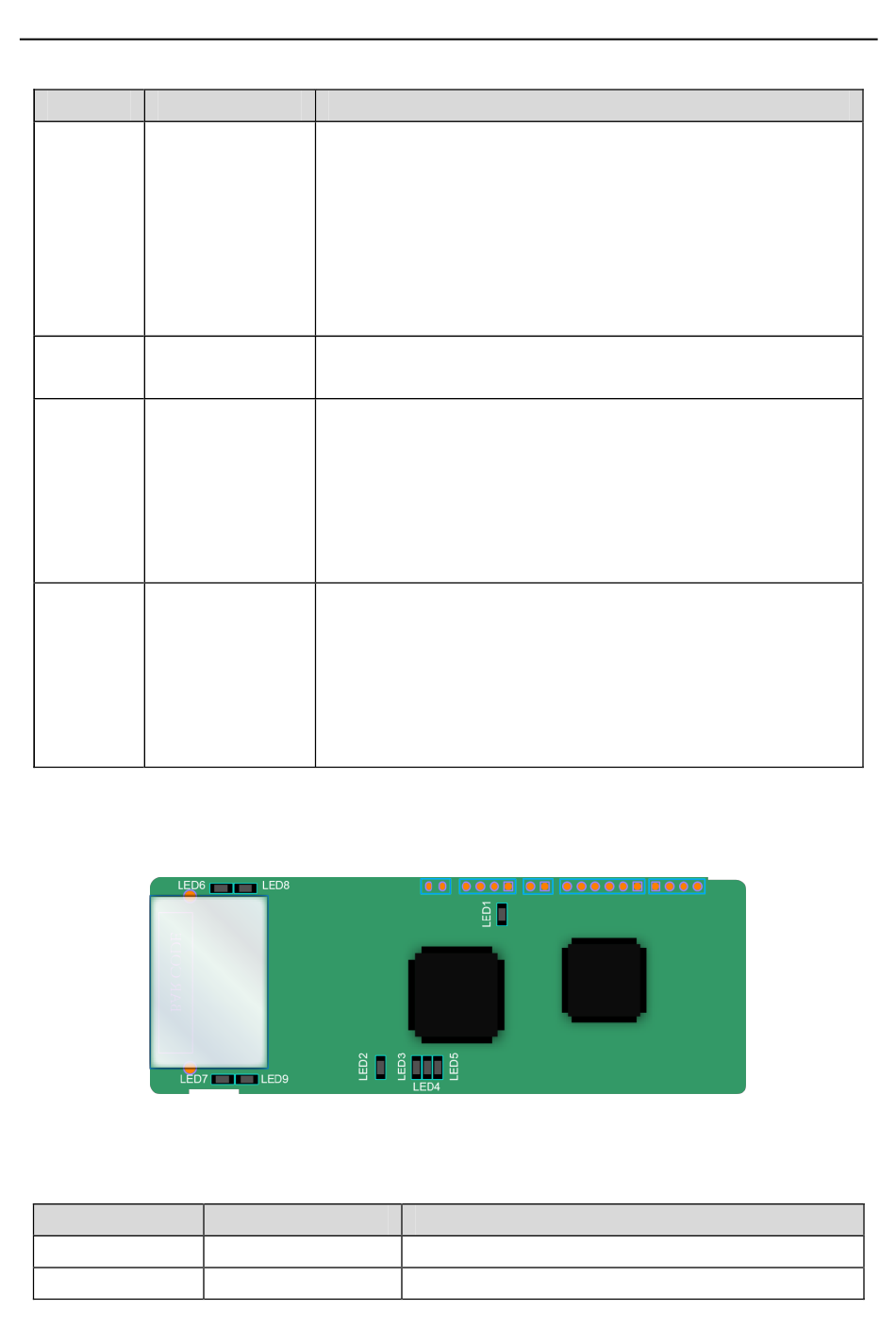

A.6.5 PROFINET communication card (EC-TX509)
The terminal CN2 adopts a standard RJ45 interface, where CN2 is the dual RJ45 interface, and these
two RJ45 interfaces are not distinguished from each other and can be interchangeably inserted. They
are arranged as follows:
Pin
1
2
On: The communication card is establishing a connection with
the control board.
Blinking periodically: The communication card is properly
connected to the control board (the period is 1s, on for 0.5s,
and off for the other 0.5s).
Off: The communication card is disconnected from the control
board.
On: The control board feeds power to the communication
card.
On: The communication card is running.
Off: A fault occurs. Check whether the reset pin of the
Running communication card and the power supply are properly
indicator connected.
Blinks: The communication card is in the pre-operation state.
Blinks once: The communication card is in the stopped state.
On: The CAN controller bus is off or a fault occurs on the
VFD.
Off: The communication card is in the working state.
Blinks: The address setting is incorrect.
Blinks once: A received frame is missed or an error occurs
during frame receiving.
Name
TX+
TX-
Function
Description
Transmit Data+
Transmit Data-
-352-
Expansion cards
