Input reactor

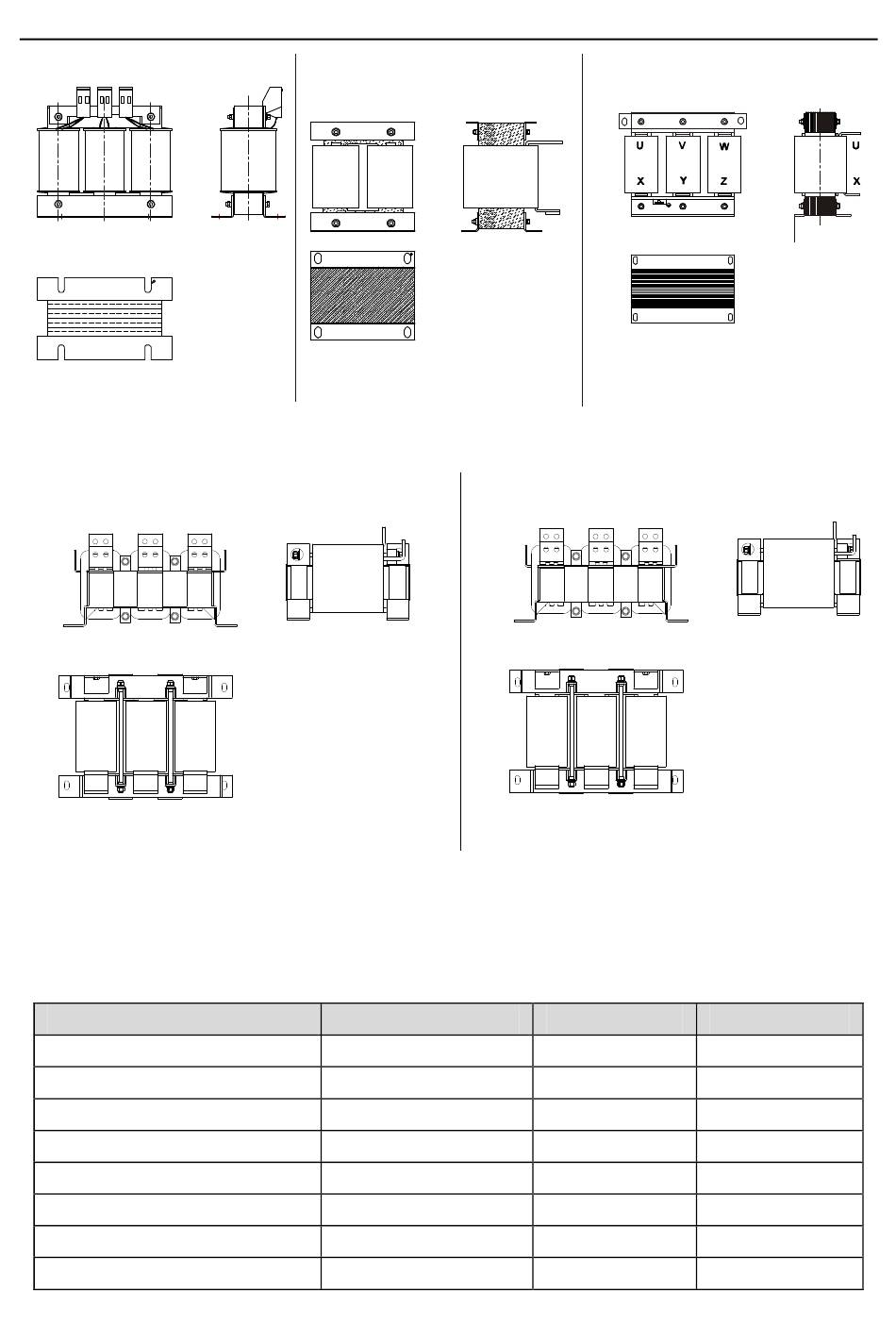

Figure D-1 Vertical reactor diagram for 380V 315kW and lower and 660V 350kW and lower
R S
(X) (Y)
Input reactor
Figure D-2 Horizontal reactor diagram for 380V 350–500kW and 660V 400–630kW
D.6.1 For a single VFD
VFD model
GD350-1R5G-4
GD350-2R2G-4
GD350-004G-4
GD350-5R5G-4
GD350-7R5G-4
GD350-011G-4
GD350-015G-4
GD350-018G-4
T
(Z)
Table D–7 Reactors for AC 3PH 380V (-15%)–440V (+10%)
DC reactor
Input reactor
ACL2-1R5-4
ACL2-2R2-4
ACL2-004-4
ACL2-5R5-4
ACL2-7R5-4
ACL2-011-4
ACL2-015-4
ACL2-018-4
-404-
Optional peripheral accessories
Output reactor
U
V W
(X) (Y) (Z)
Output reactor
DC reactor Output reactor
/
/
/
/
/
/
/
Standard
OCL2-1R5-4
OCL2-2R2-4
OCL2-004-4
OCL2-5R5-4
OCL2-7R5-4
OCL2-011-4
OCL2-015-4
OCL2-018-4
