If the remote IP host successfully pings to the SmartSwitch Remote Access Module, then
continue with the next step.
If the remote IP host CANNOT ping to the SmartSwitch Remote Access Module, refer to
Routing over a WAN Remote LAN Interface Connection
3. Determine if a remote IP host can access the local IP host through the SmartSwitch Remote
Access Module over the WAN connection. On the remote IP host type:
ping 100.0.0.2 <return>
If the remote IP host successfully pings to the local IP host, then IP routing over the WAN
Remote LAN interface is operational. Repeat the above steps for each WAN Remote LAN
interface through which you wish to get access.
If the remote IP host CANNOT ping to the local IP host, refer to
LAN Interface Connection
V IP R
ERIFYING OUTING
To verify that IP routing is properly operational over a WAN UnNumbered interface, the
SmartSwitch Remote Access Module must be operational and available to initiate connections.

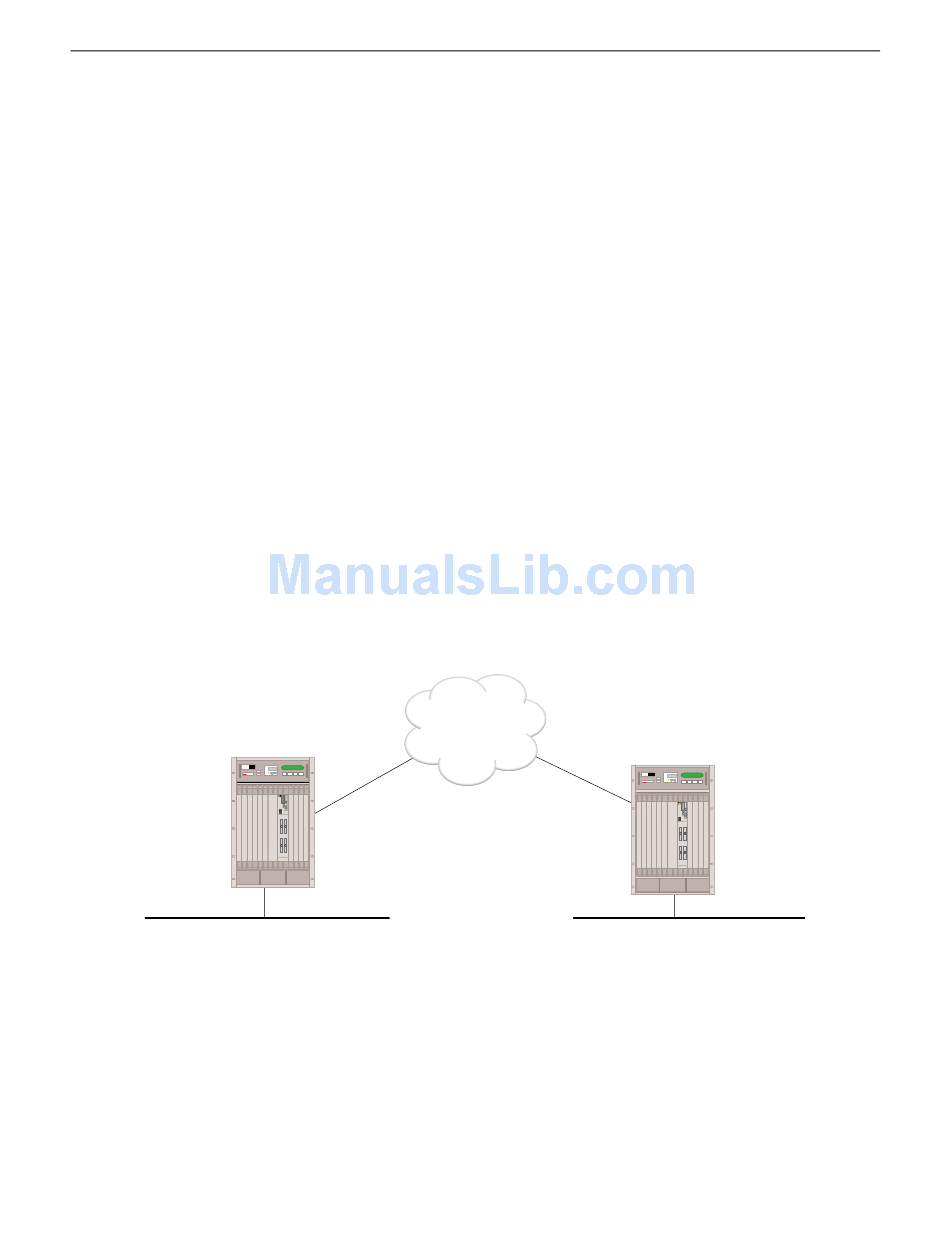

Below is an example of a configuration used to verify IP routing over a WAN UnNumbered
interface. It uses IP addresses specific to the example. Substitute the IP addresses of your network
when you perform the IP routing verification steps. It also uses the "ping" command. The "ping"
command sends a packet to a specified host, waits for a response, and reports success or failure.
MMAC-Plus with
SmartSWITCH
Remote Access Module
MMAC PLUS
C a b l e t r o n
Systems
The steps to verify the operation of IP routing over a WAN UnNumbered interface are:
1. Determine if SITE1 can access SITE2 over the WAN connection. On system A type:
ip ping 192.1.0.2 <return>
If the ping is successful, then continue with the next step.
If system A CANNOT ping to system B, refer to
Connection in the Problem Diagnosis chapter.
in the Problem Diagnosis chapter.
O WAN U N
VER A N UMBERED
ISDN
"SITE1"
100.0.0.1
Verifying IP Routing Over Interfaces
of the Problem Diagnosis chapter.
IP Routing over a WAN Remote
I
NTERFACE
MMAC-Plus with
SmartSWITCH
Remote Access Module
MMAC PLUS
C a b l e t r o n
Systems
"SITE2"
192.1.0.2
IP Routing over a WAN UnNumbered Interface
9W006 and 9W007
S V
YSTEM ERIFICATION
IP
