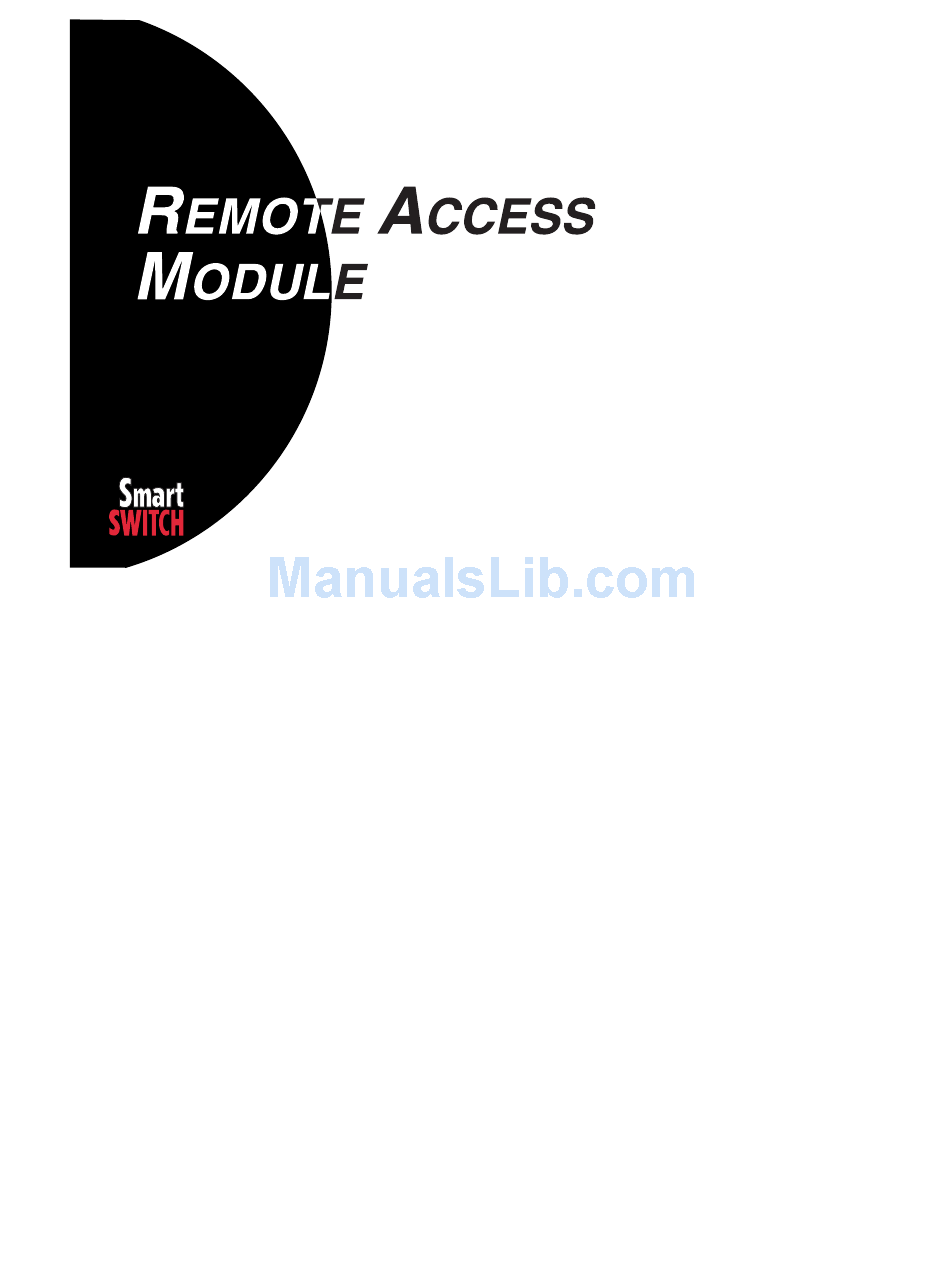

Cabletron Systems SmartSwitch 9W006 Quick Start Manual

Remote access module release 7.2
Hide thumbs Also See for SmartSwitch 9W006:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
C
A
B
L
E
T
R
O
N
S
Y
S
T
E
M
S
Q
S
UICK
TART
Release 7.2
Cabletron Systems
(603) 332-9400 phone
(603) 337-3075 fax
support@ctron.com

Advertisement

Table of Contents
loading

Related Manuals for Cabletron Systems SmartSwitch 9W006

Summary of Contents for Cabletron Systems SmartSwitch 9W006

  • Page 1 UICK TART Release 7.2 Cabletron Systems (603) 332-9400 phone (603) 337-3075 fax support@ctron.com...
  • Page 2 QUICK START Only qualified personnel should perform installation procedures. CAUTION NOTICE You may post this document on a network server for public use as long as no modifications are made to the document. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice.
  • Page 3 Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense. 9W006 and 9W007...
  • Page 4 QUICK START WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DOC NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 5: Table Of Contents

    Starting SFVRA-CFG 21 Configuring a Site Template 21 Adding the Sites 21 Configuring Connection Group Information 24 Configuring IP Information 27 Generating Configuration Updates 30 Downloading Configuration Updates 31 Necessary Configuration for the Remote Devices 31 Index 33 9W006 and 9W007...

  • Page 6: Using Quick Start

    SING UICK TART Quick Start is recommended only for those users who are experienced with hardware and software installation procedures. Quick Start is divided into the following sections: • Installing the Module Provides you with information to help you install the your SmartSwitch Remote Access Module so that it is running and ready for configuration.

  • Page 7: Installing The Module

    9W006 & 9W007 D OCUMENTATION This guide, the 9W006 & 9W007 Remote Access Module Quick Start, provides abbreviated installation and configuration instructions. It is intended to help you quickly get your module up and running. Instructions for setting up specific types of remote devices are also included. The Quick Start and the User’s Guide are included on the 9W006 &9W007 Remote Access Module CD-ROM.
  • Page 8 If you will be using any of the above features, you will need to use CFGEDIT to configure your module. In result, you will need to refer to supplemental user documentation provided on the 9W006 &9W007 Remote Access Module CD-ROM for configuration, verification, and diagnosis instructions (and any other activities that use SFVRA-CFG). This documentation is the CyberSWITCH Central Site User Documentation.

  • Page 9: Hardware Installation

    U.S. and European installations need a Mod-Tap adapter for each PRI port. We include an illustration of the 9W006-400. You may find this illustration helpful for locating the module’s Ethernet and PRI ports. Instructions for each cabling requirement follow the illustration.
  • Page 10 RJ-45 to RJ-45 Mod-Tap adapter that will convert between the two wiring systems. SmartSwitch Remote Access Module PRI/TI Ejector Tabs 9W006-400 External Floppy Drive Connector RS232 Console Connector Parallel Port PRI Ports The 9W006-400 MMAC Smart SWITCH MMAC...

  • Page 11: Resetting The Smartswitch Remote Access Module

    SmartSwitch Remote Access Module after the first time Mod-Tap Adapter insert one end of PRI cable here, other end into PRI service drop EMOTE CCESS ODULE NSTALLING THE ODULE Accessing the Module Adapter RJ-45 Pinout 9W006 and 9W007...

  • Page 12: Accessing A New Module

    QUICK START CCESSING A ODULE The two methods of accessing a new module are: • access through a PC using a terminal application • access by Telneting to the module using the initial default IP address Once you have used one of the two methods to access to the module, you should: •...

  • Page 13: Remote Access Using Telnet

    IP address for a new module is 192.186.254.254, but you should have configured a IP address for the module during the initial access. set up Telnet access, then TFTP the system software NSTALLING THE ODULE Upgrading the Software Initial Access password, enter 9W006 and 9W007...

  • Page 14: Installing And Launching Sfvra-Cfg

    You will be prompted to change the status for each configuration element. Enable the TFTP Server and assign file access rights to Admin. Use a TFTP client application to PUT the UPGRADE.OSW file from the 9W006/9W007 Remote Access Module CD-ROM to the \SYSTEM directory on the module that you want to upgrade.
  • Page 15 Insert the SFVRA Manager Setup CD into the CD-ROM drive. d. Click on Install SFVRA Configuration Manager. From the displayed screen, select which SFVRA-CFG components you want to install. Follow the onscreen instructions to complete the installation. NSTALLING THE ODULE Installing and Launching SFVRA-CFG User Documentation 9W006 and 9W007...
  • Page 16 QUICK START Install the SFVRA-CFG database. SFVRA-CFG uses Microsoft (MS) SQL Server (6.5 or later) for its database. The database is created by the SC Database Setup utility. You may choose to run this utility when installing the software. If you choose not to run the utility when installing the software, you may run it later. To do this, from the Start Menu\Programs\SFVRA - Configuration Manager, select SC Database Setup.
  • Page 17 After you complete the configuration, you will need to use SFVRA-CFG first to generate updated configuration files and then to download the files to the module. Note that when the updated files are downloaded, they overwrite the module’s existing configuration files. NSTALLING THE ODULE Installing and Launching SFVRA-CFG 9W006 and 9W007...

  • Page 18: Module Connectivity

    ODULE ONNECTIVITY VERVIEW The SmartSwitch Remote Access Module can communicate with various CyberSWITCH products in addition to other modules via a PPP connection. We will use an example configuration to describe how to set up an IP network with a SmartSwitch Remote Access Module and other remote devices including a CSX1204, a CSX100, and a modem user device.

  • Page 19: Assigning Ip Addresses

    Connect a PC with a terminal application to the module or CSX1204 using the supplied null modem cable. Connect one end of the cable to the device’s RS232 console port and the other end to the PC’s communication port. assign a new IP address for each. ODULE ONNECTIVITY Assigning IP Addresses 9W006 and 9W007...

  • Page 20: Configuration Using Sfvra-Cfg

    Note that in addition to the module, SFVRA-CFG can also be used for the following Cabletron product lines that share a similar software architecture: • 9W006 • 9W007 In accordance with the above information, we will be using SFVRA-CFG to configure site Central and site Rem_1204.

  • Page 21: Starting Sfvra-Cfg

    The initial steps to configuring a site are as follows: From the menu bar, click on Functions then click on Sites, or click Click on Add. ODULE ONNECTIVITY Configuration Using SFVRA-CFG on the toolbar. on the toolbar. on the toolbar. 9W006 and 9W007...
  • Page 22 Configuring Site Central’s System Information Click on the Systems tab. Click on Add System. Select 9W006 -220 for the module’s Product Code. Click on Add. To configure the site’s circuit information: Double click on the system ID of the system we just configured.
  • Page 23 Click on Add. We will next configure the site’s system information. Configuring Site Rem_100’s System Information Click on the Systems tab. Click on Add System. Select CSX100 for the system’s Product Code. Click on Add. ODULE ONNECTIVITY Configuration Using SFVRA-CFG 9W006 and 9W007...

  • Page 24: Configuring Connection Group Information

    QUICK START _1204 DDING At the initial Site window, click on Add. We can now configure site properties and systems. Configuring Site Rem_1204’s Properties Enter Rem_1204 as the Site Name. Select Local User Table as the site’s User Database. Select DEFAULT for the Site Template. Enter Rem_1204 for the Device Authentication Name.
  • Page 25 This is true for the dial out number used by site Rem_1204 to call into site Central. To modify the number: From the Connection Group window shown below, click on Edit Group Connections. ODULE ONNECTIVITY Configuration Using SFVRA-CFG on the 9W006 and 9W007...
  • Page 26 QUICK START As shown below, we will then see a window displaying all of our group’s connections. Double click on the second connection to display the site Central/Rem_1204 connection information. From the displayed window you may add, edit, or delete phone numbers. Site Rem_1204 has a Centrex system.

  • Page 27: Configuring Ip Information

    For our example network, we will need to configure a LAN subnet for sites Central and Rem_1204. Each subnet will include a LAN interface and a static route. We will use the IP subnet view. Configuration Using SFVRA-CFG IP subnet information, then we would need to return to 9W006 and 9W007 ODULE ONNECTIVITY...
  • Page 28 QUICK START ’ LAN IP S ONFIGURING ENTRAL From the menu bar click on Functions then click on IP Network, then on Subnets, or click on the toolbar. Click on Add. Complete the Properties information. Enter CentLAN for the Subnet Name. b.
  • Page 29 Make sure Use Wan UnNumbered Interface is enabled with a check mark, then select Central as the Next Hop Site Name. Click OK, then return to the initial IP subnet window so that we can configure our next subnet. ODULE ONNECTIVITY Configuration Using SFVRA-CFG 9W006 and 9W007...

  • Page 30: Generating Configuration Updates

    QUICK START _1204’ LAN IP S ONFIGURING From the main IP subnet menu, click on Add. Complete the Properties information. Enter RemCSX for the Subnet Name. b. Enter 231.231.220.0 for the Subnet Address (the subnet’s IP address). Enter a Subnet Mask of 255.255.255.192. This will allocate a smaller number of IP addresses to this subnet.

  • Page 31: Downloading Configuration Updates

    SFVRA-CFG (in our example this includes sites Rem_Modem and Rem_100): • Site Central’s phone numbers so that the remote device can dial out to Central. These phone numbers are: 95551111 and 95551112. Necessary Configuration for the Remote Devices PDATES EMOTE EVICES ODULE ONNECTIVITY 9W006 and 9W007...
  • Page 32 QUICK START • A gateway with an IP address of 231.231.231.1. This will allow them to be assigned an IP address from the IP address pool we set up for Central. • For authentication purposes, the CHAP password we configured for the remote sites must match the CHAP password configured on the remote sites.

  • Page 33: Index

    ODBC Driver password PRI cabling 13, 20 pswd remote device configuration restarting the module SFVRA-CFG application configuring with database features not supported by installing launching site templates sites software upgrade static routes 15, 16 17, 21 9W006 and 9W007 NDEX...
  • Page 34 QUICK START subnet address definition mask definition system information Telnet using for initial access using for remote access 12, 19 terminal application upgrading software user database user documentation descriptions VCCI notice SmartSwitch Remote Access Module...
