BCM5718 Programmer's Guide
PCI Configuration Space
BusX
DeviceY
Function Z
Register Base Address
Register Data Register
Broadcom
®
January 29, 2016 • 5718-PG108-R

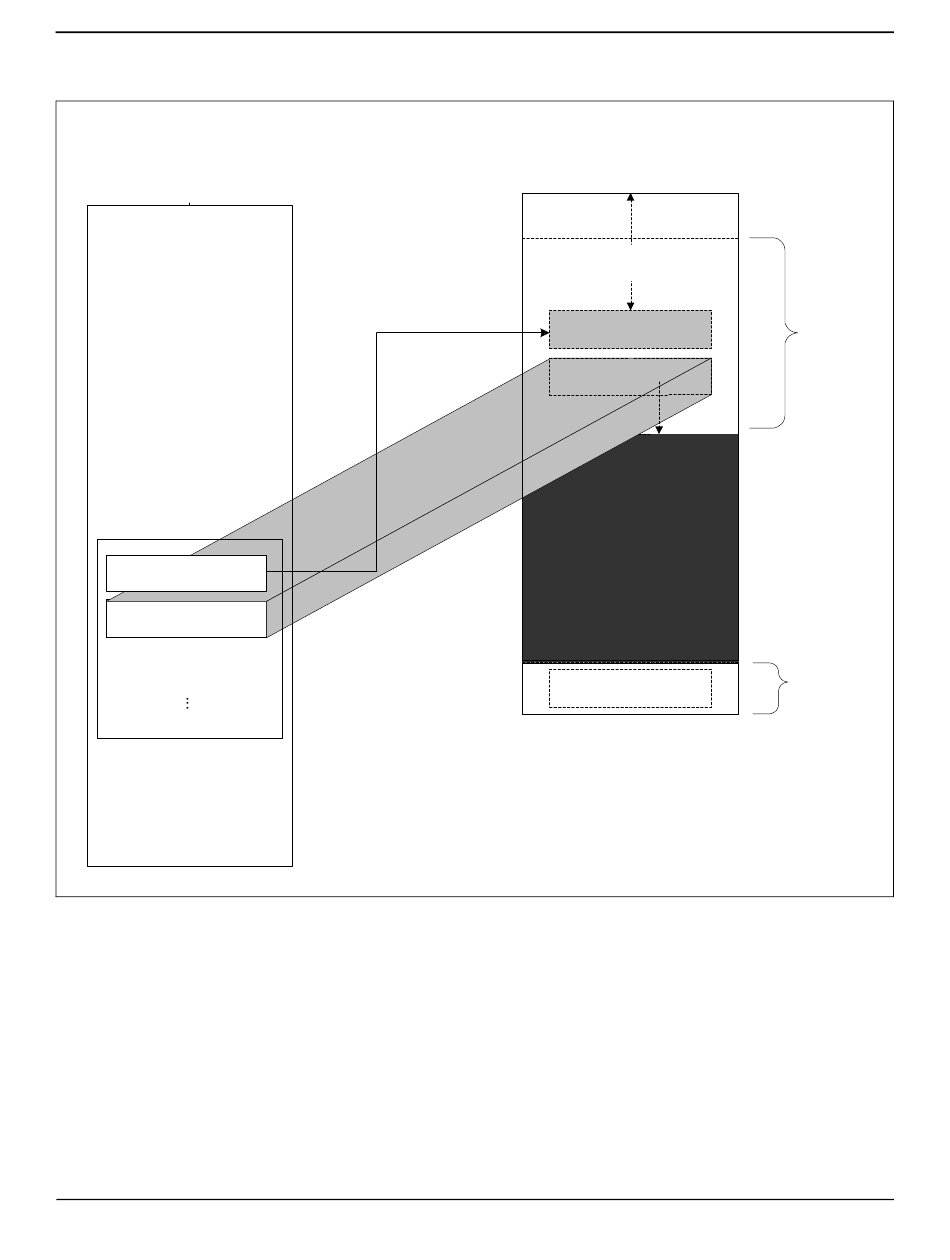

Figure 34: Register Indirect Access
Register Indirect Access
0x00000000
0x00000400
0x00008000
0x00038000
0x00038800
BCM57XX Ethernet Controller
Register Block
Address may be
located anywhere
Address may be
located anywhere
Not Accessible
via Register
Indirect Mode
Configuration Space
BCM57XX
Ethernet
Controller
Registers
Rx CPU
ROM
Page 174
