Chapter 6: Maintenance and Troubleshooting
t
rOUbleshOOting
W C
arning odes

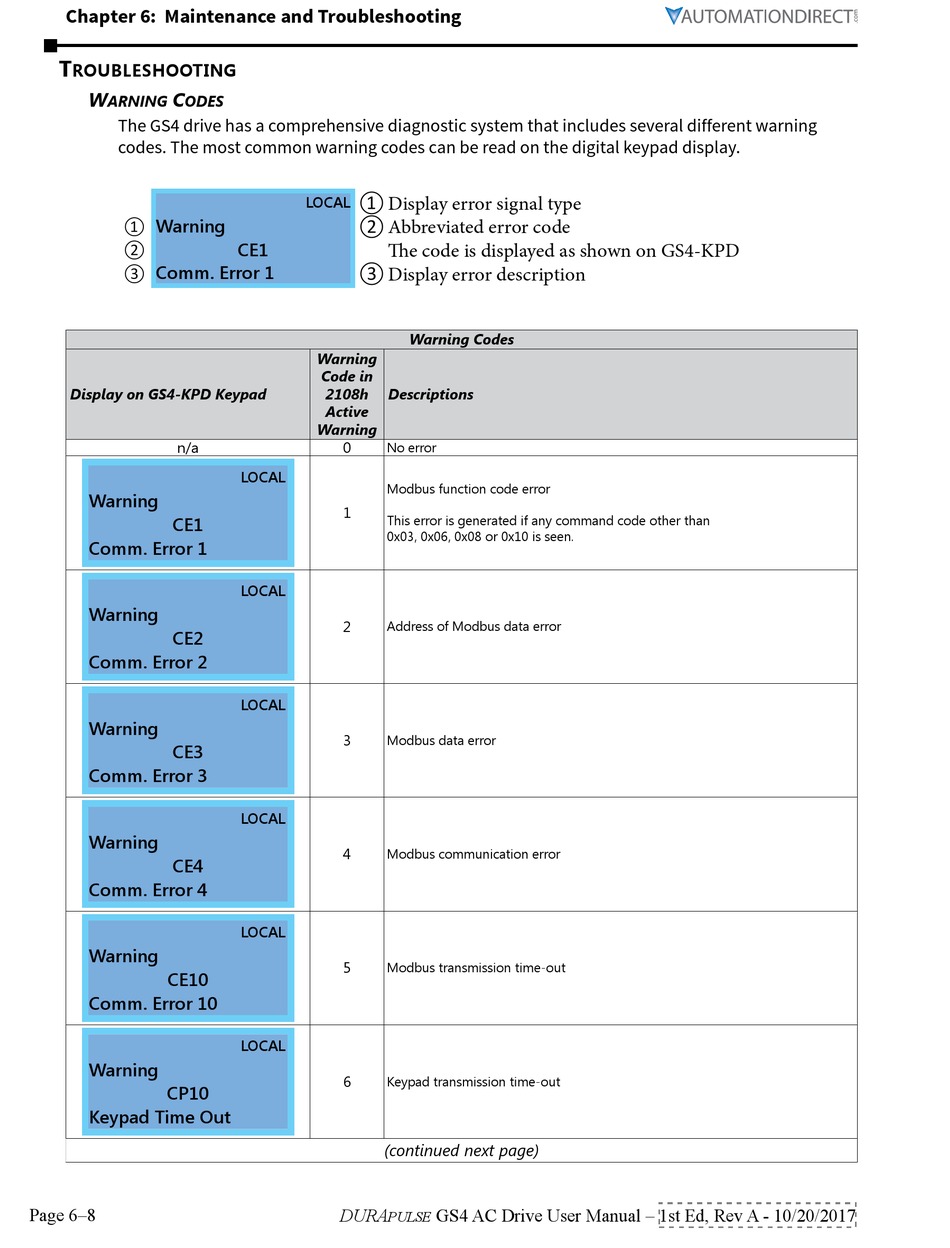

The GS4 drive has a comprehensive diagnostic system that includes several different warning
codes. The most common warning codes can be read on the digital keypad display.
Warning
①
②
Comm. Error 1
③
Display on GS4-KPD Keypad
n/a
Warning
CE1
Comm. Error 1
Warning
CE2
Comm. Error 2
Warning
CE3
Comm. Error 3
Warning
CE4
Comm. Error 4
Warning
CE10
Comm. Error 10
Warning
CP10
Keypad Time Out
Page 6–8
① Display error signal type
LOCAL
② Abbreviated error code
CE1 The code is displayed as shown on GS4-KPD
③ Display error description

Warning Codes

Warning
Code in
2108h Descriptions
Active
Warning
0
No error
LOCAL
Modbus function code error
1
This error is generated if any command code other than
0x03, 0x06, 0x08 or 0x10 is seen�
LOCAL
2
Address of Modbus data error
LOCAL
3
Modbus data error
LOCAL
4
Modbus communication error
LOCAL
5
Modbus transmission time-out
LOCAL
6
Keypad transmission time-out
(continued next page)
DuRA
pulse
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
