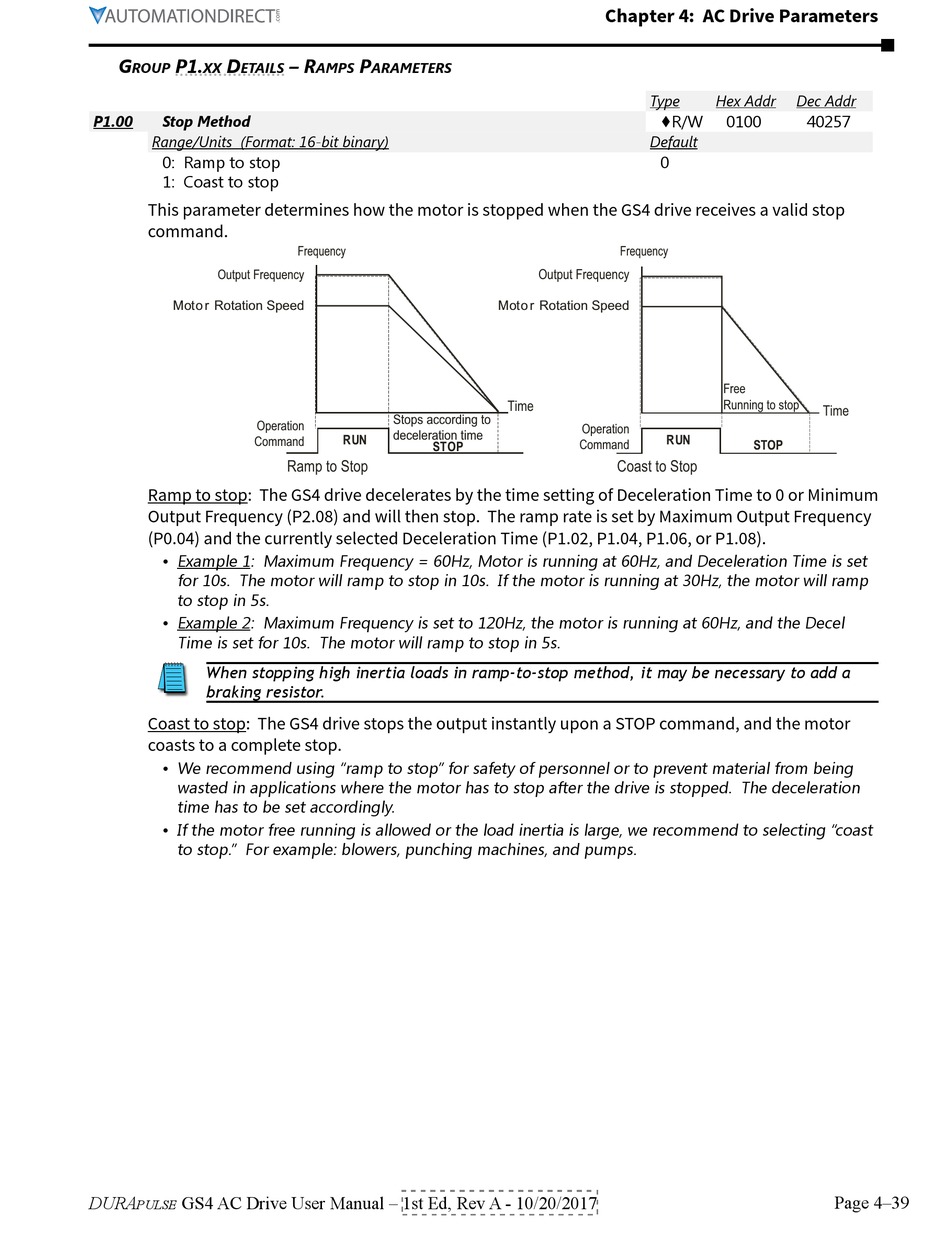

Automation Direct DURApulse GS4 User Manual page 133

g P1. d
rouP xx etails
P1.00 Stop Method
Range/Units (Format: 16-bit binary)
0: Ramp to stop
1: Coast to stop
This parameter determines how the motor is stopped when the GS4 drive receives a valid stop
command.
Output Frequency
Moto r Rotation Speed
Operation
Command
Ramp to stop: The GS4 drive decelerates by the time setting of Deceleration Time to 0 or Minimum
Output Frequency (P2.08) and will then stop. The ramp rate is set by Maximum Output Frequency
(P0.04) and the currently selected Deceleration Time (P1.02, P1.04, P1.06, or P1.08).
• Example 1: Maximum Frequency = 60Hz, Motor is running at 60Hz, and Deceleration Time is set
for 10s� The motor will ramp to stop in 10s� If the motor is running at 30Hz, the motor will ramp
to stop in 5s�
• Example 2: Maximum Frequency is set to 120Hz, the motor is running at 60Hz, and the Decel
Time is set for 10s� The motor will ramp to stop in 5s�
When stopping high inertia loads in ramp-to-stop method, it may be necessary to add a
braking resistor.
Coast to stop: The GS4 drive stops the output instantly upon a STOP command, and the motor
coasts to a complete stop.
• We recommend using "ramp to stop" for safety of personnel or to prevent material from being
wasted in applications where the motor has to stop after the drive is stopped� The deceleration
time has to be set accordingly�
• If the motor free running is allowed or the load inertia is large, we recommend to selecting "coast
to stop�" For example: blowers, punching machines, and pumps�
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
– r P
aMPs araMeters
Frequency
Stops according to
deceleration time
RUN
STOP
Ramp to Stop
Chapter 4: AC Drive Parameters
Type
♦R/W
Default
0
Frequency
Output Frequency
Moto r Rotation Speed
Time
Operation
RUN
Command
Coast to Stop
Hex Addr Dec Addr
0100 40257
Free
Running to stop
Time
STOP
Page 4–39
