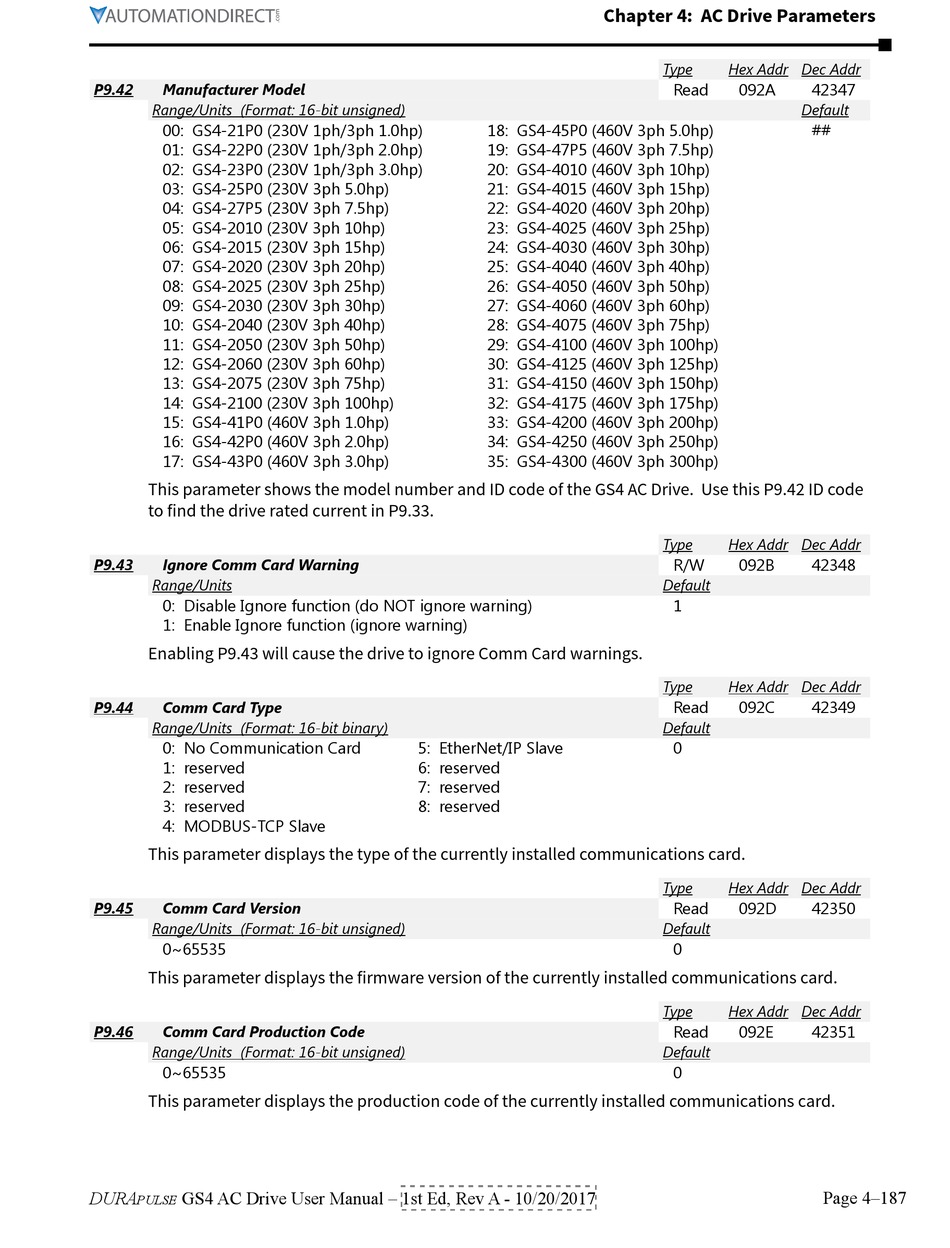

Automation Direct DURApulse GS4 User Manual page 281

P9.42 Manufacturer Model
Range/Units (Format: 16-bit unsigned)
00: GS4-21P0 (230V 1ph/3ph 1�0hp)
01: GS4-22P0 (230V 1ph/3ph 2�0hp)
02: GS4-23P0 (230V 1ph/3ph 3�0hp)
03: GS4-25P0 (230V 3ph 5�0hp)
04: GS4-27P5 (230V 3ph 7�5hp)
05: GS4-2010 (230V 3ph 10hp)
06: GS4-2015 (230V 3ph 15hp)
07: GS4-2020 (230V 3ph 20hp)
08: GS4-2025 (230V 3ph 25hp)
09: GS4-2030 (230V 3ph 30hp)
10: GS4-2040 (230V 3ph 40hp)
11: GS4-2050 (230V 3ph 50hp)
12: GS4-2060 (230V 3ph 60hp)
13: GS4-2075 (230V 3ph 75hp)
14: GS4-2100 (230V 3ph 100hp)
15: GS4-41P0 (460V 3ph 1�0hp)
16: GS4-42P0 (460V 3ph 2�0hp)
17: GS4-43P0 (460V 3ph 3�0hp)
This parameter shows the model number and ID code of the GS4 AC Drive. Use this P9.42 ID code
to find the drive rated current in P9.33.
P9.43 Ignore Comm Card Warning
Range/Units
0: Disable Ignore function (do NOT ignore warning)
1: Enable Ignore function (ignore warning)
Enabling P9.43 will cause the drive to ignore Comm Card warnings.
P9.44 Comm Card Type
Range/Units (Format: 16-bit binary)
0: No Communication Card
1: reserved
2: reserved
3: reserved
4: MODBUS-TCP Slave
This parameter displays the type of the currently installed communications card.
P9.45 Comm Card Version
Range/Units (Format: 16-bit unsigned)
0~65535
This parameter displays the firmware version of the currently installed communications card.
P9.46 Comm Card Production Code
Range/Units (Format: 16-bit unsigned)
0~65535
This parameter displays the production code of the currently installed communications card.
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
18: GS4-45P0 (460V 3ph 5�0hp)
19: GS4-47P5 (460V 3ph 7�5hp)
20: GS4-4010 (460V 3ph 10hp)
21: GS4-4015 (460V 3ph 15hp)
22: GS4-4020 (460V 3ph 20hp)
23: GS4-4025 (460V 3ph 25hp)
24: GS4-4030 (460V 3ph 30hp)
25: GS4-4040 (460V 3ph 40hp)
26: GS4-4050 (460V 3ph 50hp)
27: GS4-4060 (460V 3ph 60hp)
28: GS4-4075 (460V 3ph 75hp)
29: GS4-4100 (460V 3ph 100hp)
30: GS4-4125 (460V 3ph 125hp)
31: GS4-4150 (460V 3ph 150hp)
32: GS4-4175 (460V 3ph 175hp)
33: GS4-4200 (460V 3ph 200hp)
34: GS4-4250 (460V 3ph 250hp)
35: GS4-4300 (460V 3ph 300hp)
5: EtherNet/IP Slave
6: reserved
7: reserved
8: reserved
Chapter 4: AC Drive Parameters
Type Hex Addr Dec Addr
Read 092A
Type Hex Addr Dec Addr
R/W 092B
Default
1
Type Hex Addr Dec Addr
Read 092C
Default
0
Type Hex Addr Dec Addr
Read 092D
Default
0
Type Hex Addr Dec Addr
Read 092E
Default
0
42347
Default
##
42348
42349
42350
42351
Page 4–187
