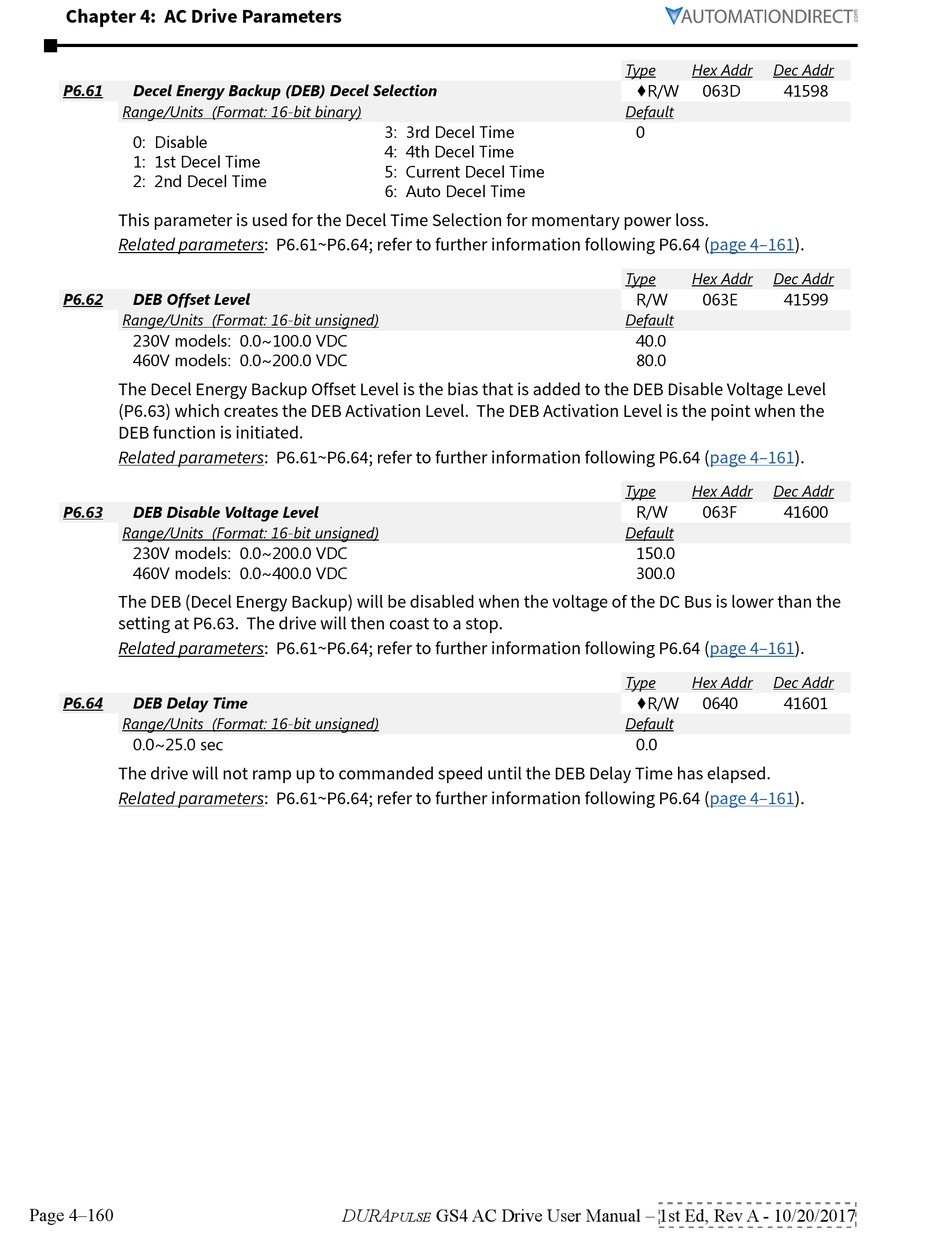

Automation Direct DURApulse GS4 User Manual page 254

Chapter 4: AC Drive Parameters
P6.61 Decel Energy Backup (DEB) Decel Selection
Range/Units (Format: 16-bit binary)
0: Disable
1: 1st Decel Time
2: 2nd Decel Time
This parameter is used for the Decel Time Selection for momentary power loss.
Related parameters: P6.61~P6.64; refer to further information following P6.64
P6.62 DEB Offset Level
Range/Units (Format: 16-bit unsigned)
230V models: 0�0~100�0 VDC
460V models: 0�0~200�0 VDC
The Decel Energy Backup Offset Level is the bias that is added to the DEB Disable Voltage Level
(P6.63) which creates the DEB Activation Level. The DEB Activation Level is the point when the
DEB function is initiated.
Related parameters: P6.61~P6.64; refer to further information following P6.64
P6.63 DEB Disable Voltage Level
Range/Units (Format: 16-bit unsigned)
230V models: 0�0~200�0 VDC
460V models: 0�0~400�0 VDC
The DEB (Decel Energy Backup) will be disabled when the voltage of the DC Bus is lower than the
setting at P6.63. The drive will then coast to a stop.
Related parameters: P6.61~P6.64; refer to further information following P6.64
P6.64 DEB Delay Time
Range/Units (Format: 16-bit unsigned)
0�0~25�0 sec
The drive will not ramp up to commanded speed until the DEB Delay Time has elapsed.
Related parameters: P6.61~P6.64; refer to further information following P6.64
Page 4–160
3: 3rd Decel Time
4: 4th Decel Time
5: Current Decel Time
6: Auto Decel Time
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr Dec Addr
♦R/W 063D 41598
Default
0
(page 4–161).
Type Hex Addr Dec Addr
R/W 063E 41599
Default
40�0
80�0
(page 4–161).
Type Hex Addr Dec Addr
R/W 063F 41600
Default
150�0
300�0
(page 4–161).
Type Hex Addr Dec Addr
♦R/W 0640 41601
Default
0�0
(page 4–161).
