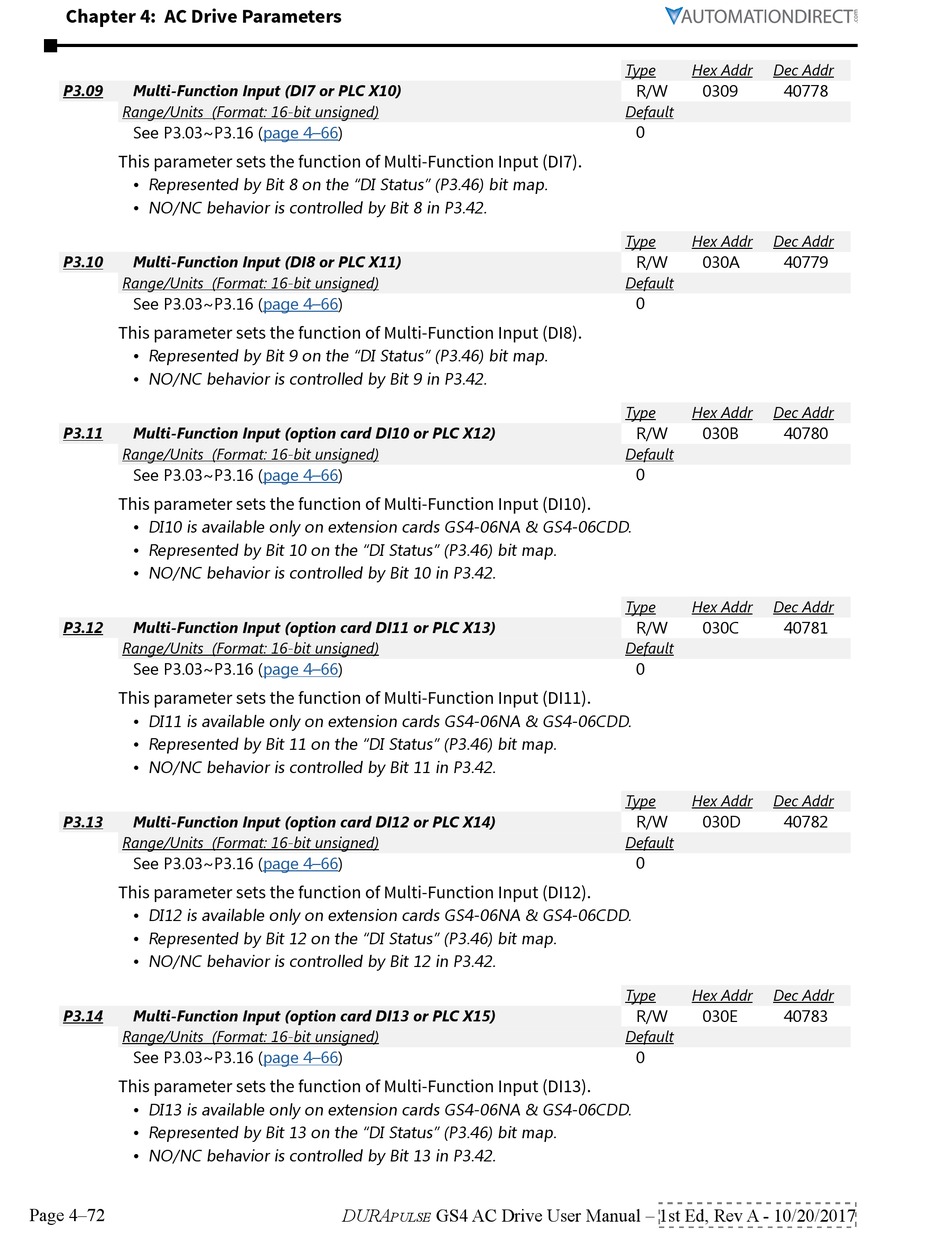

Automation Direct DURApulse GS4 User Manual page 166

Chapter 4: AC Drive Parameters
P3.09 Multi-Function Input (DI7 or PLC X10)
Range/Units (Format: 16-bit unsigned)
See P3�03~P3�16
This parameter sets the function of Multi-Function Input (DI7).
• Represented by Bit 8 on the "DI Status" (P3�46) bit map�
• NO/NC behavior is controlled by Bit 8 in P3�42�
P3.10 Multi-Function Input (DI8 or PLC X11)
Range/Units (Format: 16-bit unsigned)
See P3�03~P3�16
This parameter sets the function of Multi-Function Input (DI8).
• Represented by Bit 9 on the "DI Status" (P3�46) bit map�
• NO/NC behavior is controlled by Bit 9 in P3�42�
P3.11 Multi-Function Input (option card DI10 or PLC X12)
Range/Units (Format: 16-bit unsigned)
See P3�03~P3�16
This parameter sets the function of Multi-Function Input (DI10).
• DI10 is available only on extension cards GS4-06NA & GS4-06CDD�
• Represented by Bit 10 on the "DI Status" (P3�46) bit map�
• NO/NC behavior is controlled by Bit 10 in P3�42�
P3.12 Multi-Function Input (option card DI11 or PLC X13)
Range/Units (Format: 16-bit unsigned)
See P3�03~P3�16
This parameter sets the function of Multi-Function Input (DI11).
• DI11 is available only on extension cards GS4-06NA & GS4-06CDD�
• Represented by Bit 11 on the "DI Status" (P3�46) bit map�
• NO/NC behavior is controlled by Bit 11 in P3�42�
P3.13 Multi-Function Input (option card DI12 or PLC X14)
Range/Units (Format: 16-bit unsigned)
See P3�03~P3�16
This parameter sets the function of Multi-Function Input (DI12).
• DI12 is available only on extension cards GS4-06NA & GS4-06CDD�
• Represented by Bit 12 on the "DI Status" (P3�46) bit map�
• NO/NC behavior is controlled by Bit 12 in P3�42�
P3.14 Multi-Function Input (option card DI13 or PLC X15)
Range/Units (Format: 16-bit unsigned)
See P3�03~P3�16
This parameter sets the function of Multi-Function Input (DI13).
• DI13 is available only on extension cards GS4-06NA & GS4-06CDD�
• Represented by Bit 13 on the "DI Status" (P3�46) bit map�
• NO/NC behavior is controlled by Bit 13 in P3�42�
Page 4–72
(page 4–66)
(page 4–66)
(page 4–66)
(page 4–66)
(page 4–66)
(page 4–66)
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr Dec Addr
R/W 0309 40778
Default
0
Type Hex Addr Dec Addr
R/W 030A 40779
Default
0
Type Hex Addr Dec Addr
R/W 030B 40780
Default
0
Type Hex Addr Dec Addr
R/W 030C 40781
Default
0
Type Hex Addr Dec Addr
R/W 030D 40782
Default
0
Type Hex Addr Dec Addr
R/W 030E 40783
Default
0
