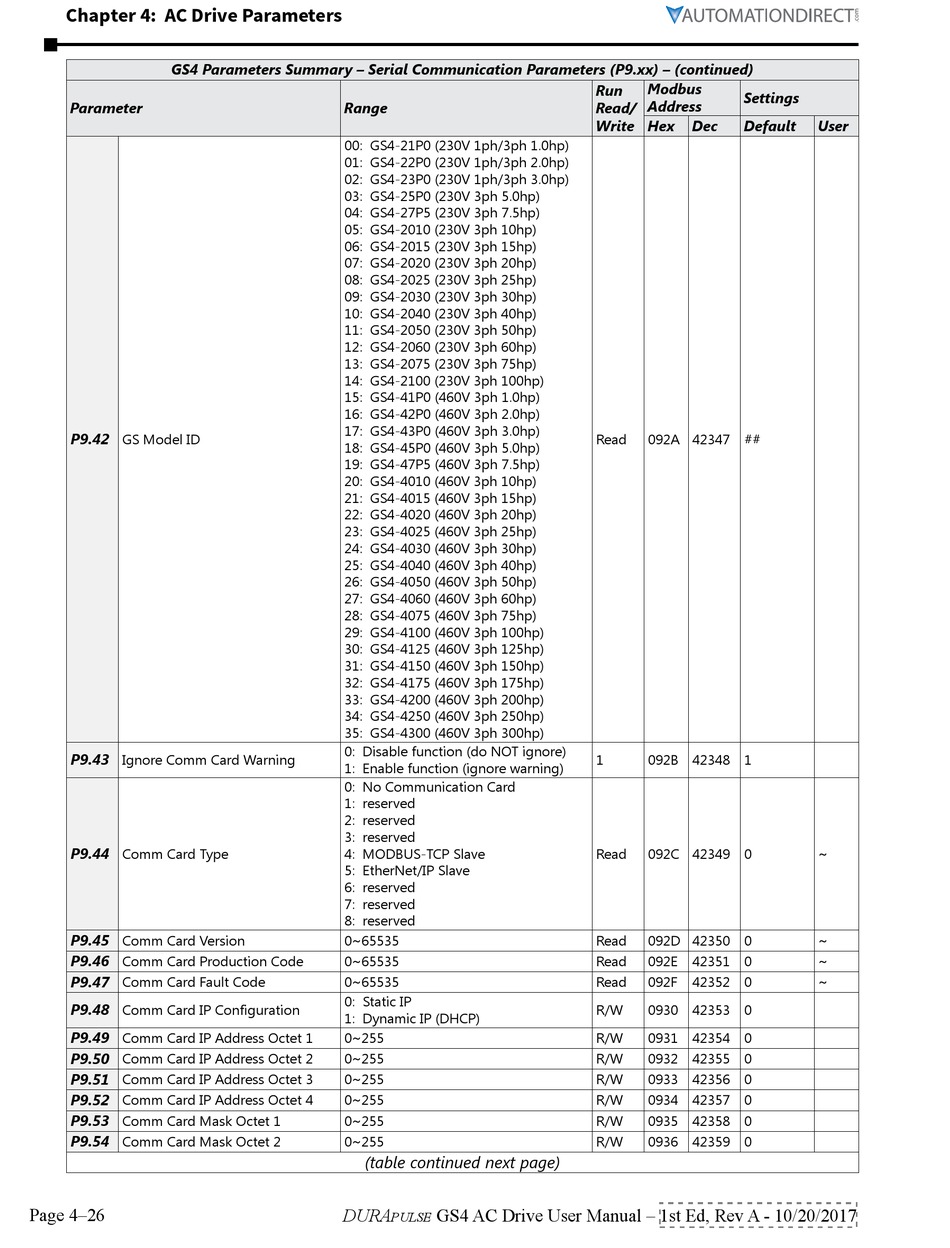

Chapter 4: AC Drive Parameters
GS4 Parameters Summary – Serial Communication Parameters (P9.xx) – (continued)
Parameter
P9.42
GS Model ID
P9.43
Ignore Comm Card Warning
P9.44
Comm Card Type
P9.45
Comm Card Version
P9.46
Comm Card Production Code
P9.47
Comm Card Fault Code
P9.48
Comm Card IP Configuration
P9.49
Comm Card IP Address Octet 1
P9.50
Comm Card IP Address Octet 2
P9.51 Comm Card IP Address Octet 3
P9.52
Comm Card IP Address Octet 4
P9.53
Comm Card Mask Octet 1
P9.54
Comm Card Mask Octet 2
Page 4–26
Range
00: GS4-21P0 (230V 1ph/3ph 1�0hp)
01: GS4-22P0 (230V 1ph/3ph 2�0hp)
02: GS4-23P0 (230V 1ph/3ph 3�0hp)
03: GS4-25P0 (230V 3ph 5�0hp)
04: GS4-27P5 (230V 3ph 7�5hp)
05: GS4-2010 (230V 3ph 10hp)
06: GS4-2015 (230V 3ph 15hp)
07: GS4-2020 (230V 3ph 20hp)
08: GS4-2025 (230V 3ph 25hp)
09: GS4-2030 (230V 3ph 30hp)
10: GS4-2040 (230V 3ph 40hp)
11: GS4-2050 (230V 3ph 50hp)
12: GS4-2060 (230V 3ph 60hp)
13: GS4-2075 (230V 3ph 75hp)
14: GS4-2100 (230V 3ph 100hp)
15: GS4-41P0 (460V 3ph 1�0hp)
16: GS4-42P0 (460V 3ph 2�0hp)
17: GS4-43P0 (460V 3ph 3�0hp)
18: GS4-45P0 (460V 3ph 5�0hp)
19: GS4-47P5 (460V 3ph 7�5hp)
20: GS4-4010 (460V 3ph 10hp)
21: GS4-4015 (460V 3ph 15hp)
22: GS4-4020 (460V 3ph 20hp)
23: GS4-4025 (460V 3ph 25hp)
24: GS4-4030 (460V 3ph 30hp)
25: GS4-4040 (460V 3ph 40hp)
26: GS4-4050 (460V 3ph 50hp)
27: GS4-4060 (460V 3ph 60hp)
28: GS4-4075 (460V 3ph 75hp)
29: GS4-4100 (460V 3ph 100hp)
30: GS4-4125 (460V 3ph 125hp)
31: GS4-4150 (460V 3ph 150hp)
32: GS4-4175 (460V 3ph 175hp)
33: GS4-4200 (460V 3ph 200hp)
34: GS4-4250 (460V 3ph 250hp)
35: GS4-4300 (460V 3ph 300hp)
0: Disable function (do NOT ignore)
1: Enable function (ignore warning)
0: No Communication Card
1: reserved
2: reserved
3: reserved
4: MODBUS-TCP Slave
5: EtherNet/IP Slave
6: reserved
7: reserved
8: reserved
0~65535
0~65535
0~65535
0: Static IP
1: Dynamic IP (DHCP)
0~255
0~255
0~255
0~255
0~255
0~255
