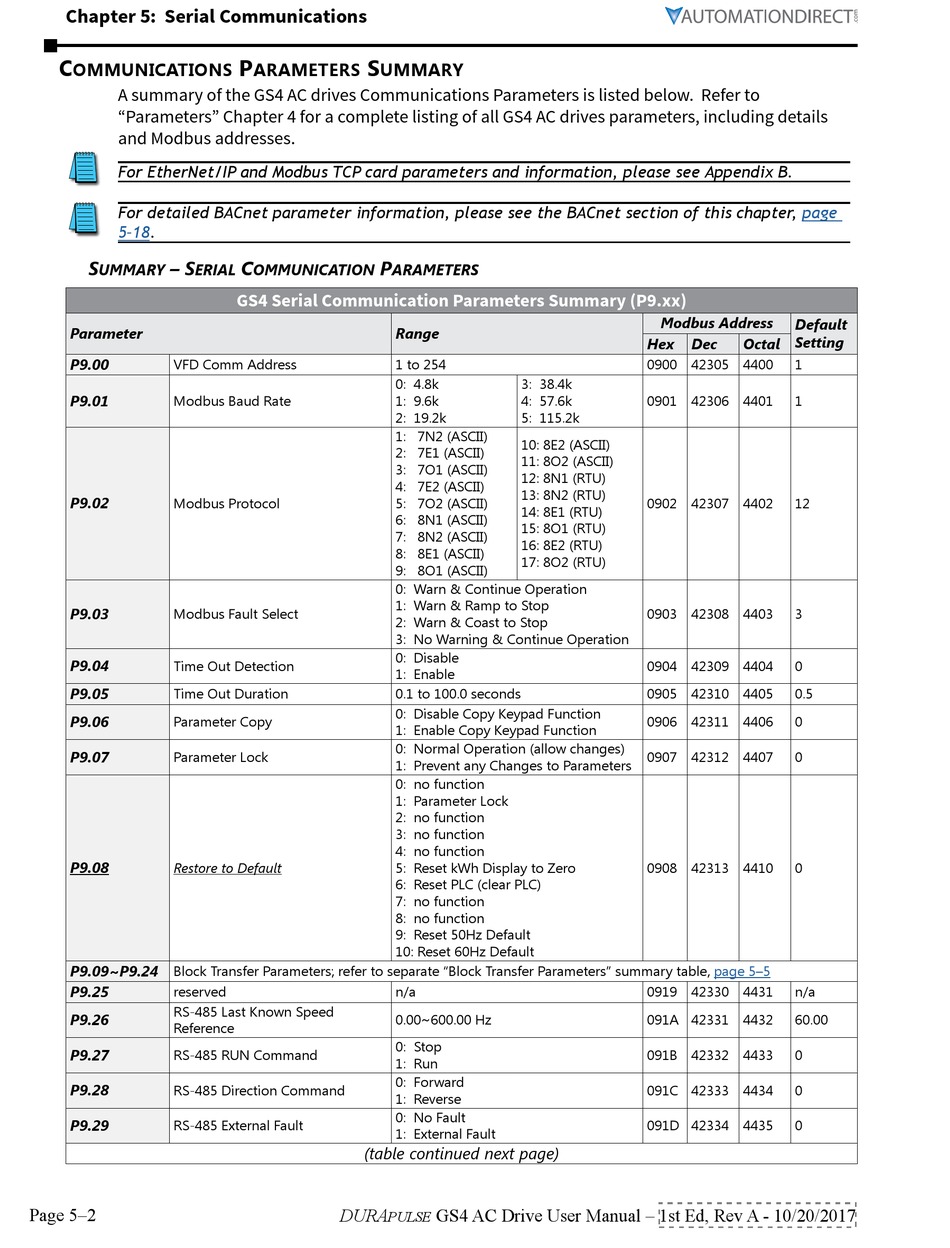

Chapter 5: Serial Communications
C
OMMUniCatiOns
A summary of the GS4 AC drives Communications Parameters is listed below. Refer to
"Parameters" Chapter 4 for a complete listing of all GS4 AC drives parameters, including details
and Modbus addresses.
For EtherNet/IP and Modbus TCP card parameters and information, please see Appendix B.
For detailed BACnet parameter information, please see the BACnet section of this chapter,
5–18.
s – s
ummary erial
Parameter
P9.00
VFD Comm Address
P9.01
Modbus Baud Rate
P9.02
Modbus Protocol
P9.03
Modbus Fault Select
P9.04
Time Out Detection
P9.05
Time Out Duration
P9.06
Parameter Copy
P9.07
Parameter Lock
P9.08
Restore to Default
P9.09~P9.24
Block Transfer Parameters; refer to separate "Block Transfer Parameters" summary table,
P9.25
reserved
RS-485 Last Known Speed
P9.26
Reference
P9.27
RS-485 RUN Command
P9.28 RS-485 Direction Command
P9.29
RS-485 External Fault
Page 5–2
P s
araMeters UMMarY
C p
ommuniCaTion arameTers
GS4 Serial Communication Parameters Summary (P9.xx)
Range
1 to 254
0: 4�8k
1: 9�6k
2: 19�2k
1: 7N2 (ASCII)
2: 7E1 (ASCII)
3: 7O1 (ASCII)
4: 7E2 (ASCII)
5: 7O2 (ASCII)
6: 8N1 (ASCII)
7: 8N2 (ASCII)
8: 8E1 (ASCII)
9: 8O1 (ASCII)
0: Warn & Continue Operation
1: Warn & Ramp to Stop
2: Warn & Coast to Stop
3: No Warning & Continue Operation
0: Disable
1: Enable
0�1 to 100�0 seconds
0: Disable Copy Keypad Function
1: Enable Copy Keypad Function
0: Normal Operation (allow changes)
1: Prevent any Changes to Parameters
0: no function
1: Parameter Lock
2: no function
3: no function
4: no function
5: Reset kWh Display to Zero
6: Reset PLC (clear PLC)
7: no function
8: no function
9: Reset 50Hz Default
10: Reset 60Hz Default
n/a
0�00~600�00 Hz
0: Stop
1: Run
0: Forward
1: Reverse
0: No Fault
1: External Fault
(table continued next page)
DuRA
pulse
3: 38�4k
4: 57�6k
5: 115�2k
10: 8E2 (ASCII)
11: 8O2 (ASCII)
12: 8N1 (RTU)
13: 8N2 (RTU)
14: 8E1 (RTU)
15: 8O1 (RTU)
16: 8E2 (RTU)
17: 8O2 (RTU)
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
page
Modbus Address
Default
Setting
Hex Dec Octal
0900 42305 4400 1
0901 42306 4401 1
0902 42307 4402 12
0903 42308 4403 3
0904 42309 4404 0
0905 42310 4405 0�5
0906 42311 4406 0
0907 42312 4407 0
0908 42313 4410 0
page 5–5
0919 42330 4431 n/a
091A 42331 4432 60�00
091B 42332 4433 0
091C 42333 4434 0
091D 42334 4435 0
