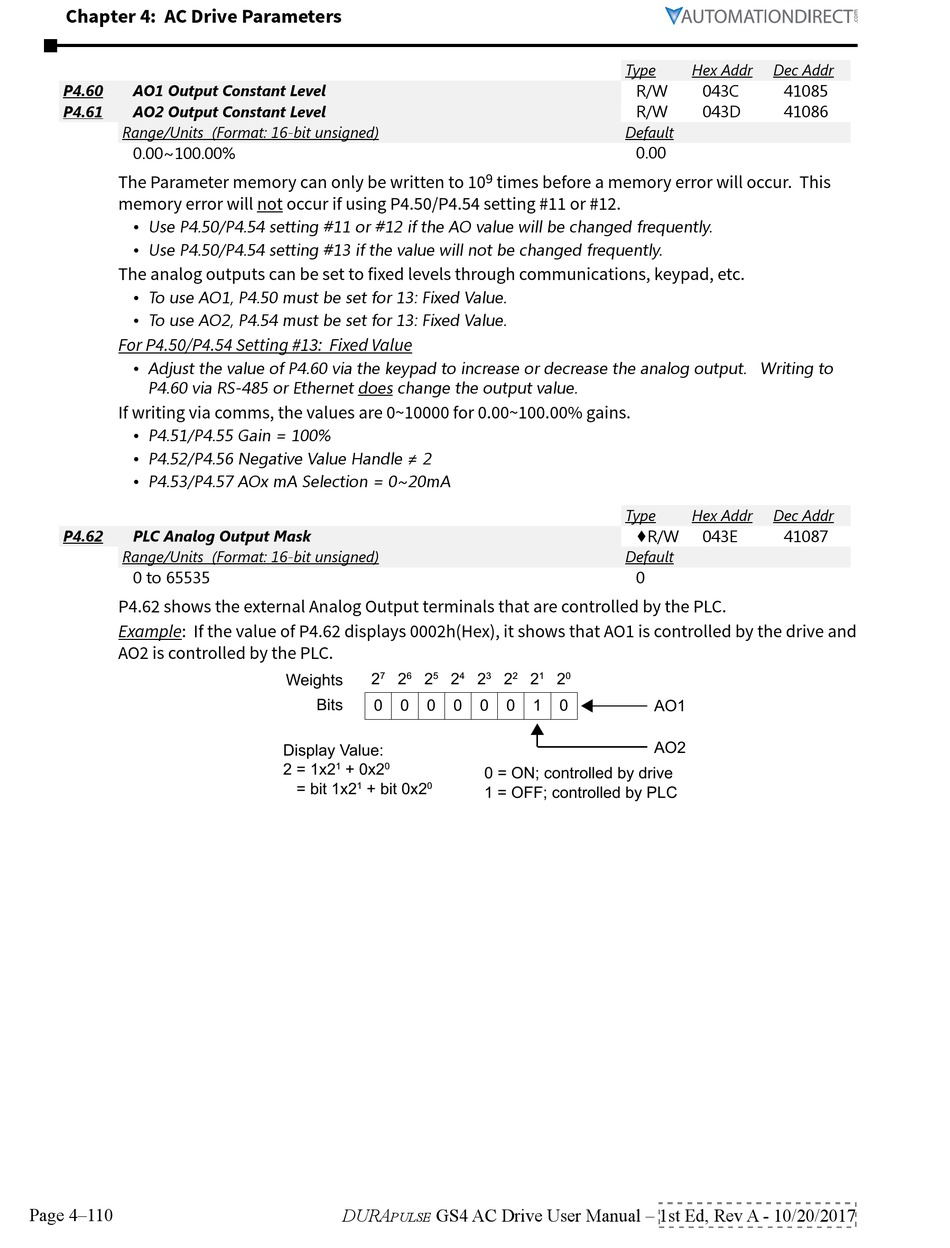

Automation Direct DURApulse GS4 User Manual page 204

Chapter 4: AC Drive Parameters
P4.60 AO1 Output Constant Level
P4.61 AO2 Output Constant Level
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
The Parameter memory can only be written to 10
memory error will not occur if using P4.50/P4.54 setting #11 or #12.
• Use P4�50/P4�54 setting #11 or #12 if the AO value will be changed frequently�
• Use P4�50/P4�54 setting #13 if the value will not be changed frequently�
The analog outputs can be set to fixed levels through communications, keypad, etc.
• To use AO1, P4�50 must be set for 13: Fixed Value�
• To use AO2, P4�54 must be set for 13: Fixed Value�
For P4.50/P4.54 Setting #13: Fixed Value
• Adjust the value of P4�60 via the keypad to increase or decrease the analog output� Writing to
P4�60 via RS-485 or Ethernet does change the output value�
If writing via comms, the values are 0~10000 for 0.00~100.00% gains.
• P4�51/P4�55 Gain = 100%
• P4.52/P4.56 Negative Value Handle ≠ 2
• P4�53/P4�57 AOx mA Selection = 0~20mA
P4.62 PLC Analog Output Mask
Range/Units (Format: 16-bit unsigned)
0 to 65535
P4.62 shows the external Analog Output terminals that are controlled by the PLC.
Example: If the value of P4.62 displays 0002h(Hex), it shows that AO1 is controlled by the drive and
AO2 is controlled by the PLC.
Page 4–110
2 2 2 2
Weights
7 6 5 4
Bits
0 0 0 0
Display Value:
2 = 1x2 + 0x2
1 0
= bit 1x2 + bit 0x2
1 0
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type
R/W
R/W
Default
0�00
9
times before a memory error will occur. This
Type
♦R/W
Default
0
2 2 2 2
3 2 1 0
0 0 1 0 AO1
AO2
0 = ON; controlled by drive
1 = OFF; controlled by PLC
Hex Addr Dec Addr
043C 41085
043D 41086
Hex Addr Dec Addr
043E 41087
