Appendix A: Accessories
MENU Key
Press MENU to return to the main menu�
Menu Content:
1) Param Setup
2) Quick Start
3) Keypad Lock
4) Fault Record
Direction: Left/Right/Up/Down
1) In the numeric value setting mode, it is used to move the cursor and change the numeric value.
2) In the menu/text selection mode, it is used for item selection.
Function Keys
1) F1 is JOG function
2) The F2, F3, F4 keys are reserved for future use.
LOCAL Key
1) This key is executed by the parameter settings of the source of Local frequency and Local operation.
2) Pressing the LOCAL key with the drive stopped will switch the operation and frequency to the LOCAL
3) The selected mode, LOCAL or REMOTE, will be displayed on the GS4-KPD.
4) When P3.58=0 then LOCAL correlates to HAND mode. The Digital Input Definition must not be set to 33
Refer to P3.58 for more detail and other options on how the drive behaves when switching between LOCAL
and REMOTE.
REMOTE Key
1) This key is executed by the parameter settings of the source of Remote frequency and Remote
2) Pressing the REMOTE key with the drive stopped will switch the operation and frequency to the
3) The selected mode, LOCAL or REMOTE, will be displayed on the GS4-KPD.
4) When P3.58=0 then LOCAL correlates to HAND mode. The Digital Input definition must not be set to 33
Refer to P3.58 for more detail and other options on how the drive behaves when switching between LOCAL
and REMOTE.
Steady ON: Operation indicator of the AC motor drive, including DC brake, zero speed, standby, restart
after fault and speed search�
Blinking: Drive is decelerating to stop or in the status of base block�
Steady OFF: Drive is not currently executing an operational (RUN) command�
Steady ON: Stop indicator of the AC motor drive�
Blinking: Drive is in the standby status�
Steady OFF: Drive is not currently executing an operational (STOP) command�
Operation Direction LED
1) Green light is on, the drive is running forward or will run forward when given a run command.
2) Red light is on, the drive is running backwards or will run backwards when given a run command.
3) Alternating green/red light: the drive is changing direction.
ERR_COMM_RUN
Descriptions reserved for future use�
Page A–40

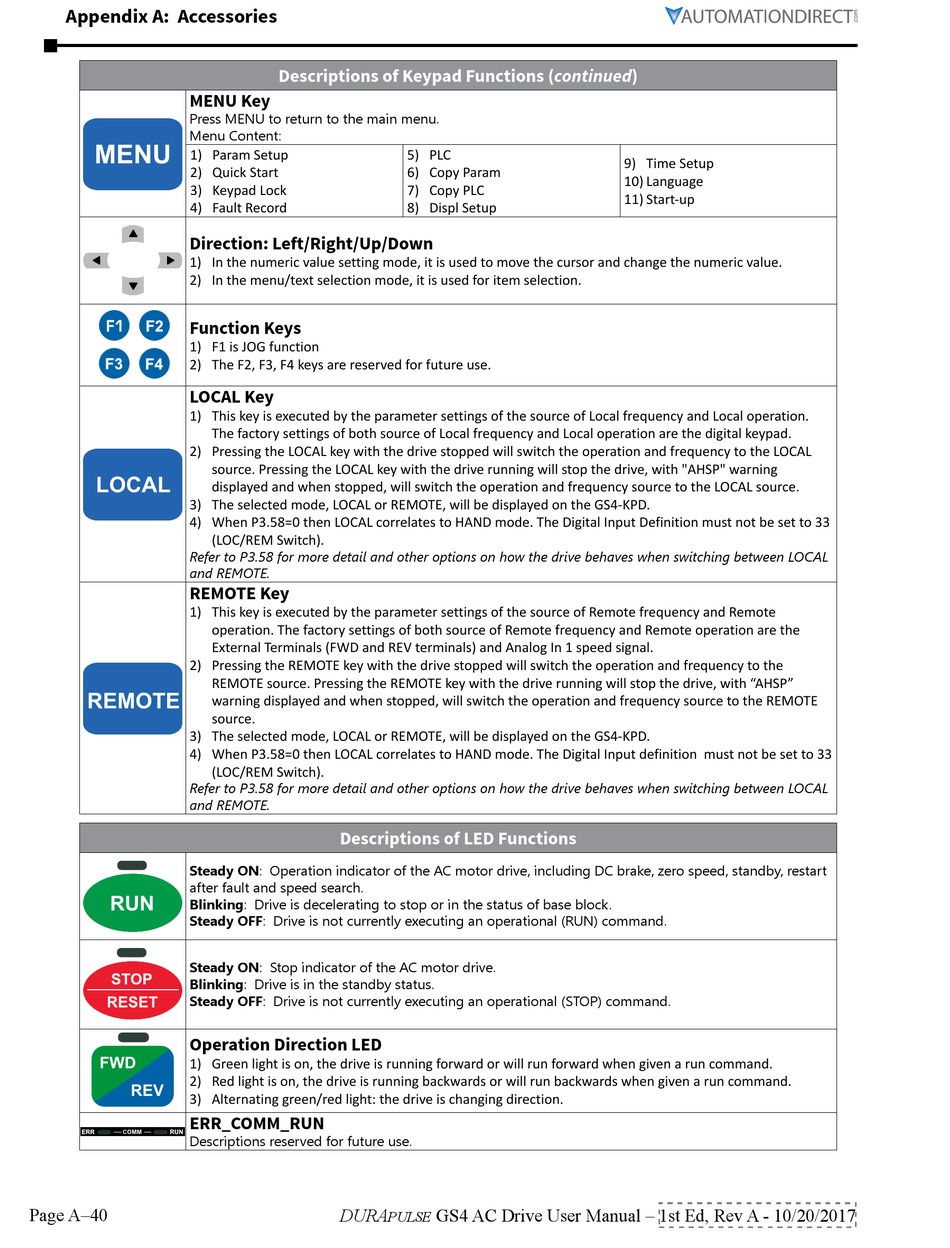

Descriptions of Keypad Functions (continued)
The factory settings of both source of Local frequency and Local operation are the digital keypad.
source. Pressing the LOCAL key with the drive running will stop the drive, with "AHSP" warning
displayed and when stopped, will switch the operation and frequency source to the LOCAL source.
(LOC/REM Switch).
operation. The factory settings of both source of Remote frequency and Remote operation are the
External Terminals (FWD and REV terminals) and Analog In 1 speed signal.
REMOTE source. Pressing the REMOTE key with the drive running will stop the drive, with "AHSP"
warning displayed and when stopped, will switch the operation and frequency source to the REMOTE
source.
(LOC/REM Switch).
Descriptions of LED Functions
DuRA
pulse
5) PLC
6) Copy Param
7) Copy PLC
8) Displ Setup
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
9) Time Setup
10) Language
11) Start-up
