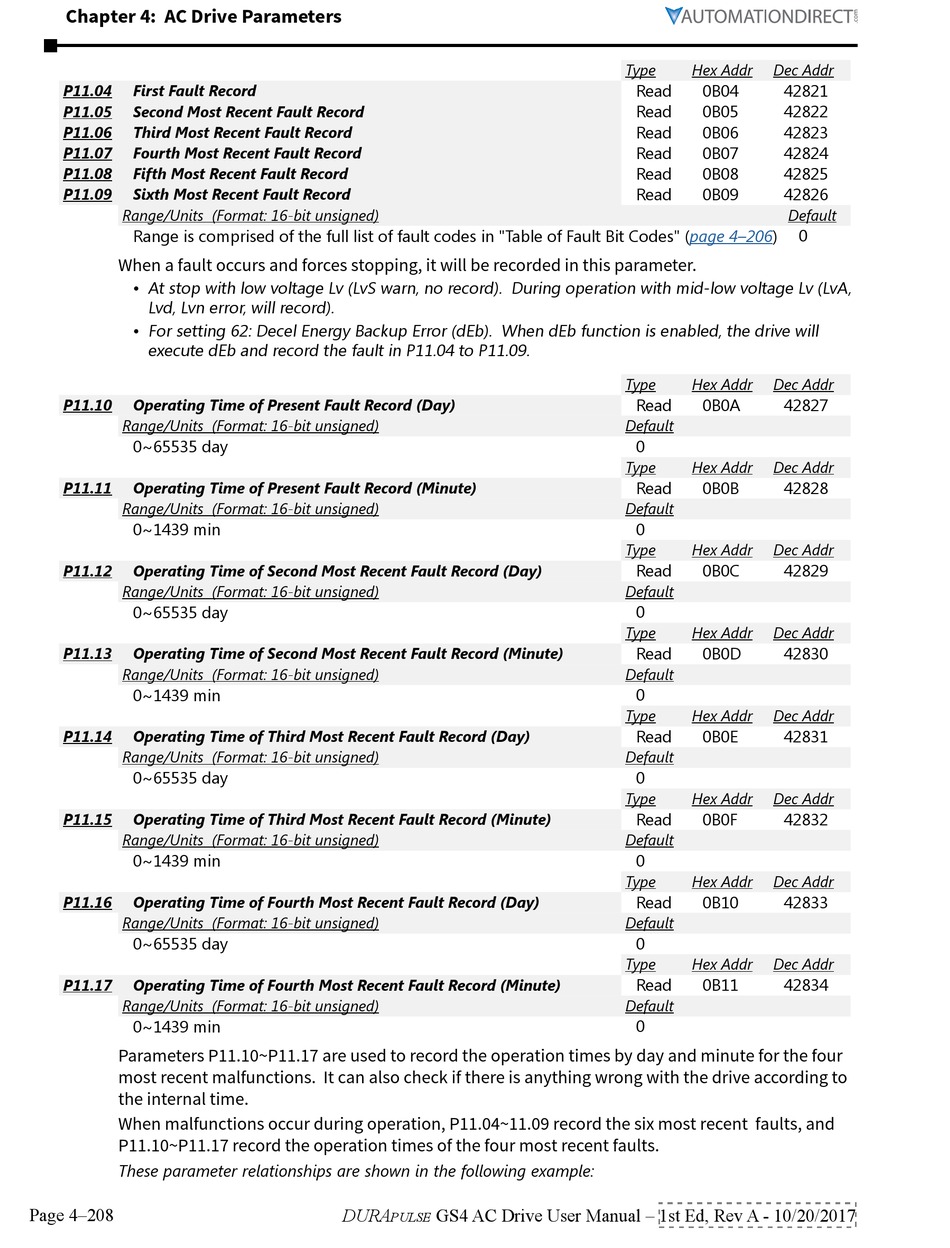

Chapter 4: AC Drive Parameters
P11.04 First Fault Record
P11.05 Second Most Recent Fault Record
P11.06 Third Most Recent Fault Record
P11.07 Fourth Most Recent Fault Record
P11.08 Fifth Most Recent Fault Record
P11.09 Sixth Most Recent Fault Record
Range/Units (Format: 16-bit unsigned)
Range is comprised of the full list of fault codes in "Table of Fault Bit Codes"
When a fault occurs and forces stopping, it will be recorded in this parameter.
• At stop with low voltage Lv (LvS warn, no record)� During operation with mid-low voltage Lv (LvA,
Lvd, Lvn error, will record)�
• For setting 62: Decel Energy Backup Error (dEb)� When dEb function is enabled, the drive will
execute dEb and record the fault in P11�04 to P11�09�
P11.10 Operating Time of Present Fault Record (Day)
Range/Units (Format: 16-bit unsigned)
0~65535 day
P11.11 Operating Time of Present Fault Record (Minute)
Range/Units (Format: 16-bit unsigned)
0~1439 min
P11.12 Operating Time of Second Most Recent Fault Record (Day)
Range/Units (Format: 16-bit unsigned)
0~65535 day
P11.13 Operating Time of Second Most Recent Fault Record (Minute)
Range/Units (Format: 16-bit unsigned)
0~1439 min
P11.14 Operating Time of Third Most Recent Fault Record (Day)
Range/Units (Format: 16-bit unsigned)
0~65535 day
P11.15 Operating Time of Third Most Recent Fault Record (Minute)
Range/Units (Format: 16-bit unsigned)
0~1439 min
P11.16 Operating Time of Fourth Most Recent Fault Record (Day)
Range/Units (Format: 16-bit unsigned)
0~65535 day
P11.17 Operating Time of Fourth Most Recent Fault Record (Minute)
Range/Units (Format: 16-bit unsigned)
0~1439 min
Parameters P11.10~P11.17 are used to record the operation times by day and minute for the four
most recent malfunctions. It can also check if there is anything wrong with the drive according to
the internal time.
When malfunctions occur during operation, P11.04~11.09 record the six most recent faults, and
P11.10~P11.17 record the operation times of the four most recent faults.
These parameter relationships are shown in the following example:
Page 4–208
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr Dec Addr
Read 0B04 42821
Read 0B05 42822
Read 0B06 42823
Read 0B07 42824
Read 0B08 42825
Read 0B09 42826
Default
(page 4–206) 0
Type Hex Addr Dec Addr
Read 0B0A 42827
Default
0
Type Hex Addr Dec Addr
Read 0B0B 42828
Default
0
Type Hex Addr Dec Addr
Read 0B0C 42829
Default
0
Type Hex Addr Dec Addr
Read 0B0D 42830
Default
0
Type Hex Addr Dec Addr
Read 0B0E 42831
Default
0
Type Hex Addr Dec Addr
Read 0B0F 42832
Default
0
Type Hex Addr Dec Addr
Read 0B10 42833
Default
0
Type Hex Addr Dec Addr
Read 0B11 42834
Default
0
