Conduit Box Installation - Frame F - Automation Direct DURApulse GS4 User Manual

Appendix A: Accessories
C b i
onduiT ox

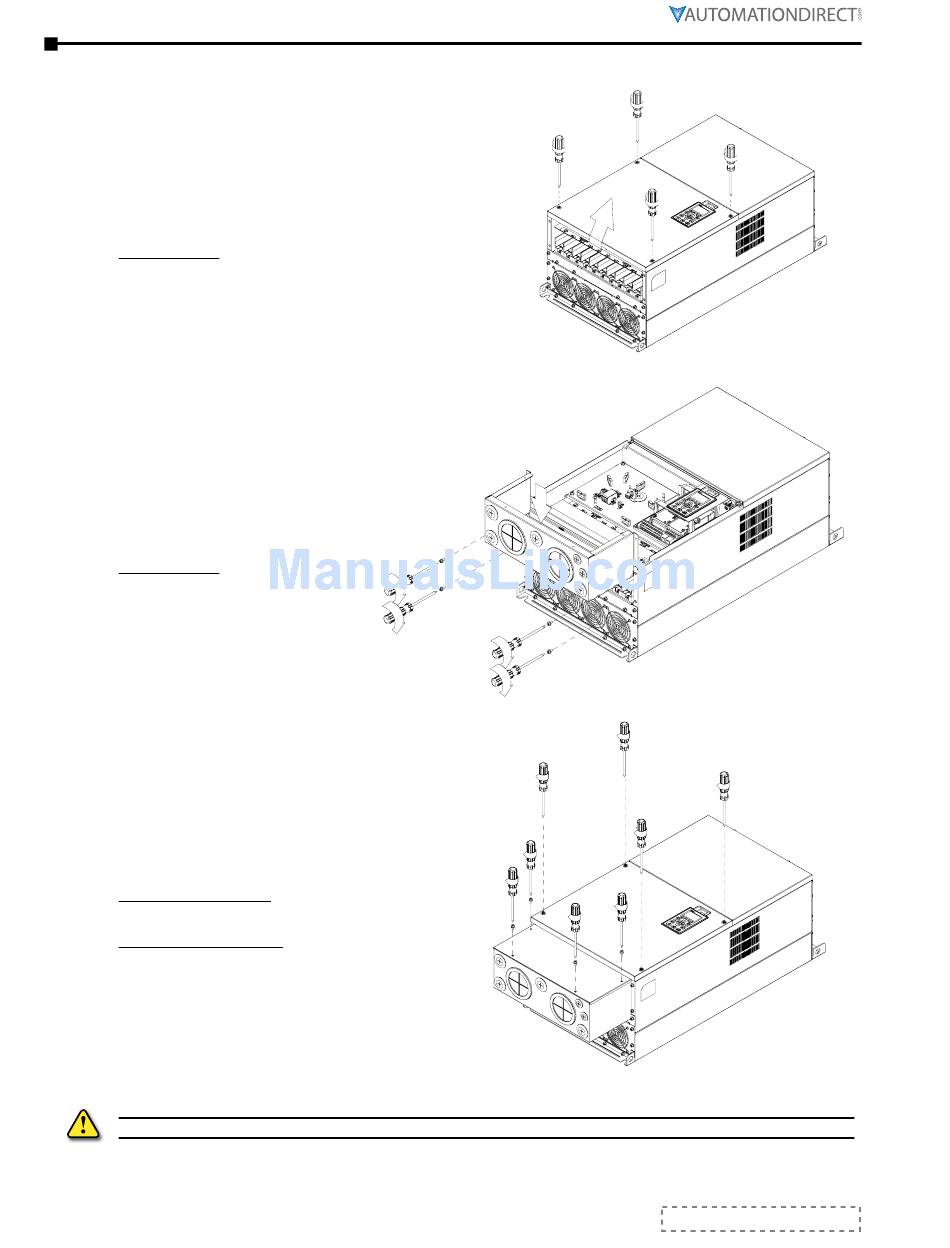

Loosen the cover screws to remove the cover, as
shown.
Screw torque: 14~16 kg·cm (12.2~13.9 Ib·in)
Install the conduit box by
fastening the 4 screws, as
shown.
Screw torque:
24~26 kg·cm (20.8~22.6 Ib·in)
Install the covers of conduit box and driver by
fastening all the screws as shown.
Screw #9~12 torque:
14~16 kg·cm (12.2~13.9 lb·in.)
Screw #13~16 Torque:
24~26 kg·cm (20.8~22.6 lb·in.)
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
