Appendix C: Digital and Analog I/O Parameter Maps
2 P
araMeters

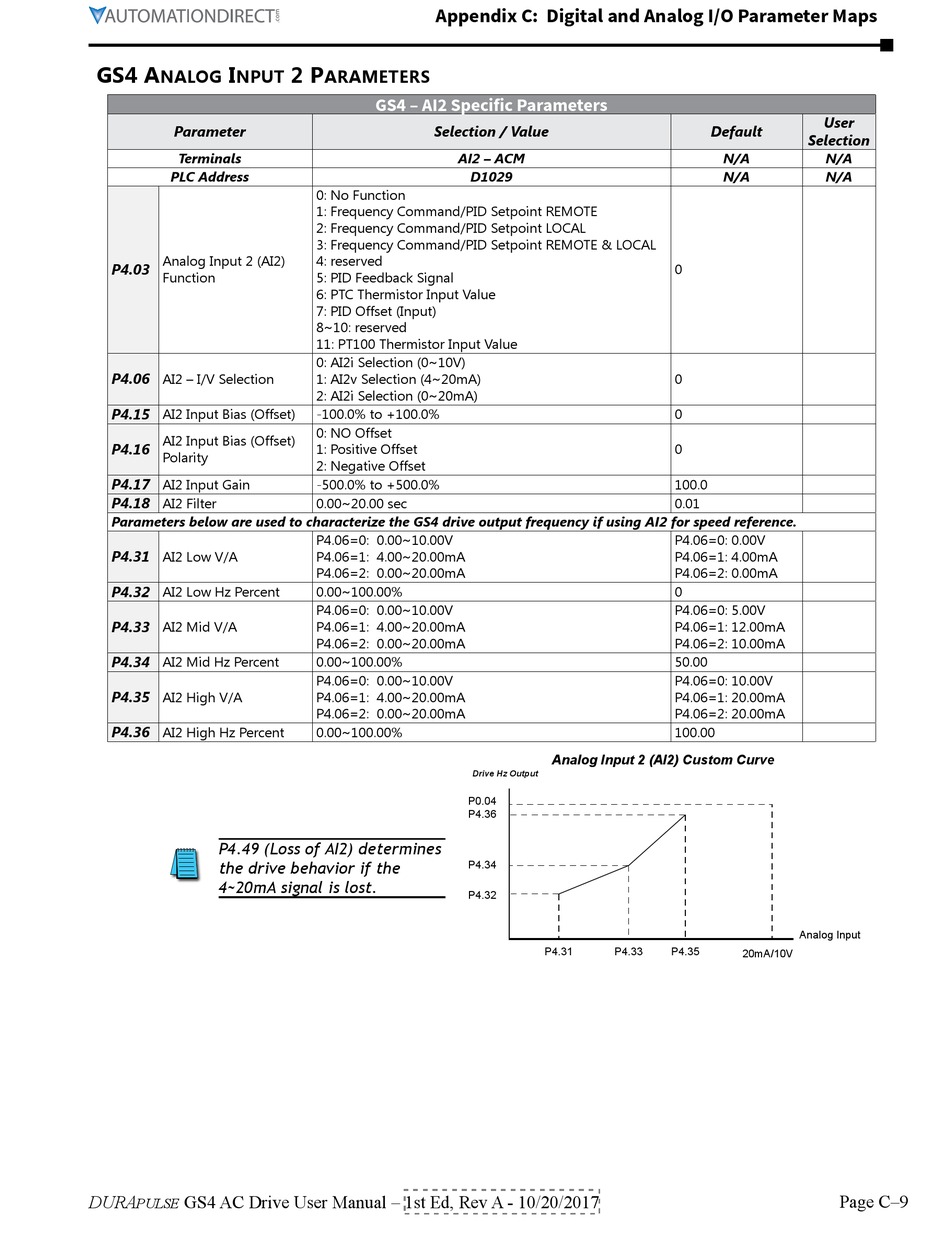

GS4 – AI2 Specific Parameters
Selection / Value
AI2 – ACM
0: No Function
1: Frequency Command/PID Setpoint REMOTE
2: Frequency Command/PID Setpoint LOCAL
3: Frequency Command/PID Setpoint REMOTE & LOCAL
4: reserved
5: PID Feedback Signal
6: PTC Thermistor Input Value
7: PID Offset (Input)
8~10: reserved
11: PT100 Thermistor Input Value
0: AI2i Selection (0~10V)
1: AI2v Selection (4~20mA)
2: AI2i Selection (0~20mA)
-100�0% to +100�0%
0: NO Offset
1: Positive Offset
2: Negative Offset
-500�0% to +500�0%
0�00~20�00 sec
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
0�00~100�00%
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
0�00~100�00%
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
0�00~100�00%
P0.04
P4.36
P4.34
P4.32
D1029
Analog Input 2 (AI2) Custom Curve
Drive Hz Output
P4.31 P4.33
User
Default
Selection
N/A N/A
N/A N/A
0
0
0
0
100�0
0�01
P4 �06=0: 0�00V
P4 �06=1: 4�00mA
P4 �06=2: 0�00mA
0
P4 �06=0: 5�00V
P4 �06=1: 12�00mA
P4 �06=2: 10�00mA
50�00
P4 �06=0: 10�00V
P4 �06=1: 20�00mA
P4 �06=2: 20�00mA
100�00
Analog Input
P4.35
20mA/10V
Page C–9
