The GS4 has 2 analog inputs (AO1 and AO2) which can be configured for a variety of uses. The
outputs are configured via parameters and DIP switch settings (located above the I/O terminal
strip). There are several parameters associated with each analog output that defines the signal
and adjusts gain, offset, etc. Both outputs share the same Analog Common (ACM).
• AO1: 0 ~ 10V or -10V to +10V (see P450 and the DIP switch AO1 above the I/O terminals)
• AO2: 0 ~ 10V or 4–20mA (see P454 and the DIP switch AO2 above the I/O terminals)
a o
nalog uTpuT

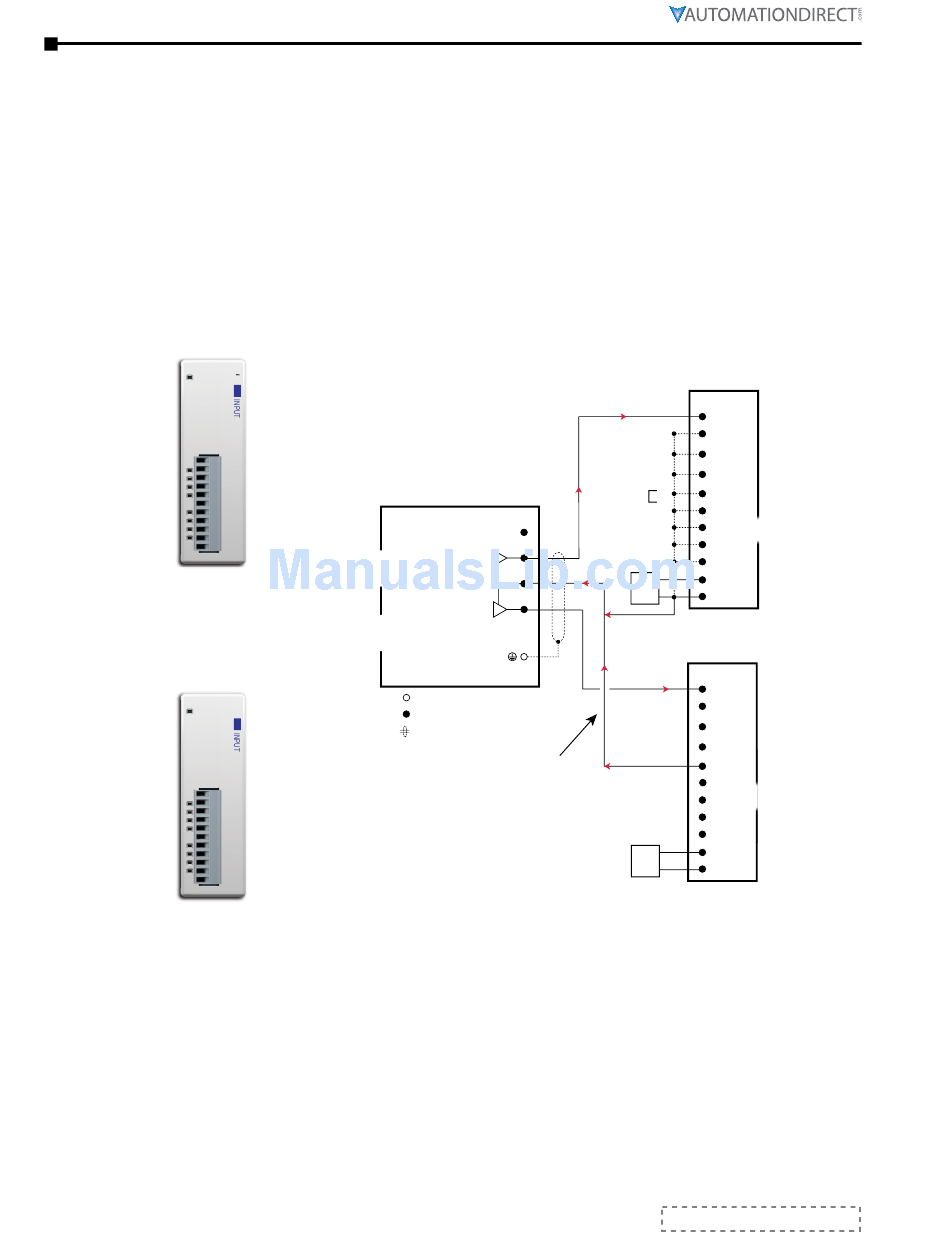

In this example AO1 is configured for 0~10V (P4.50 and DIP switch AO1).
CLICK Expansion module
C0-04AD-2
C0-04AD-2
CLICK Expansion module
C0-04AD-1
C0-04AD-1
Page D–8
o
uTpuTs
W v
ired for olTage and
0-10V
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
AO1 is configured
for 0~10V
(P4.50 and DIP switch AO1)
AO2 is configured
for 4~20mA
(P4.54 and DIP switch AO2)
0-20mA
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
DuRA
pulse
C
urrenT
GS4-xxxx
+10V Power Source
(20mA max.)
AO1
(0 to 10V)
ACM
AO2 4–20mA
(0–20 mA or 4–20 mA)
See Power
Wiring Diag.
Main circuit (power) terminals
Control circuit terminal
Shielded leads
Analog Common
(same return path
for both drive
analog outputs)
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Analog Voltage Sinking
Input Module
C0-04AD-2
CH1
CH2
CH3
CH4
0V 0V
Connect unused
CHx
channel(s)
0V
to 0V terminals. 0V 0V
0V 0V
All "0V" terminals
are connected internally.
0V 0V
0–10V 0V 0V
+ 24V 24V
24VDC
0V
Power
–
Supply
Analog Current Sinking
input Module
C0-04AD-1
CH1
CH2
CH3
CH4
0V 0V
0V 0V
0V 0V All "0V" terminals
are connected internally.
0V 0V
0V 0V
+ 24V 24V
24VDC
0V
Power
–
Supply
