Automation Direct DURApulse GS4 User Manual page 297

t s
erMinal PeciFications For

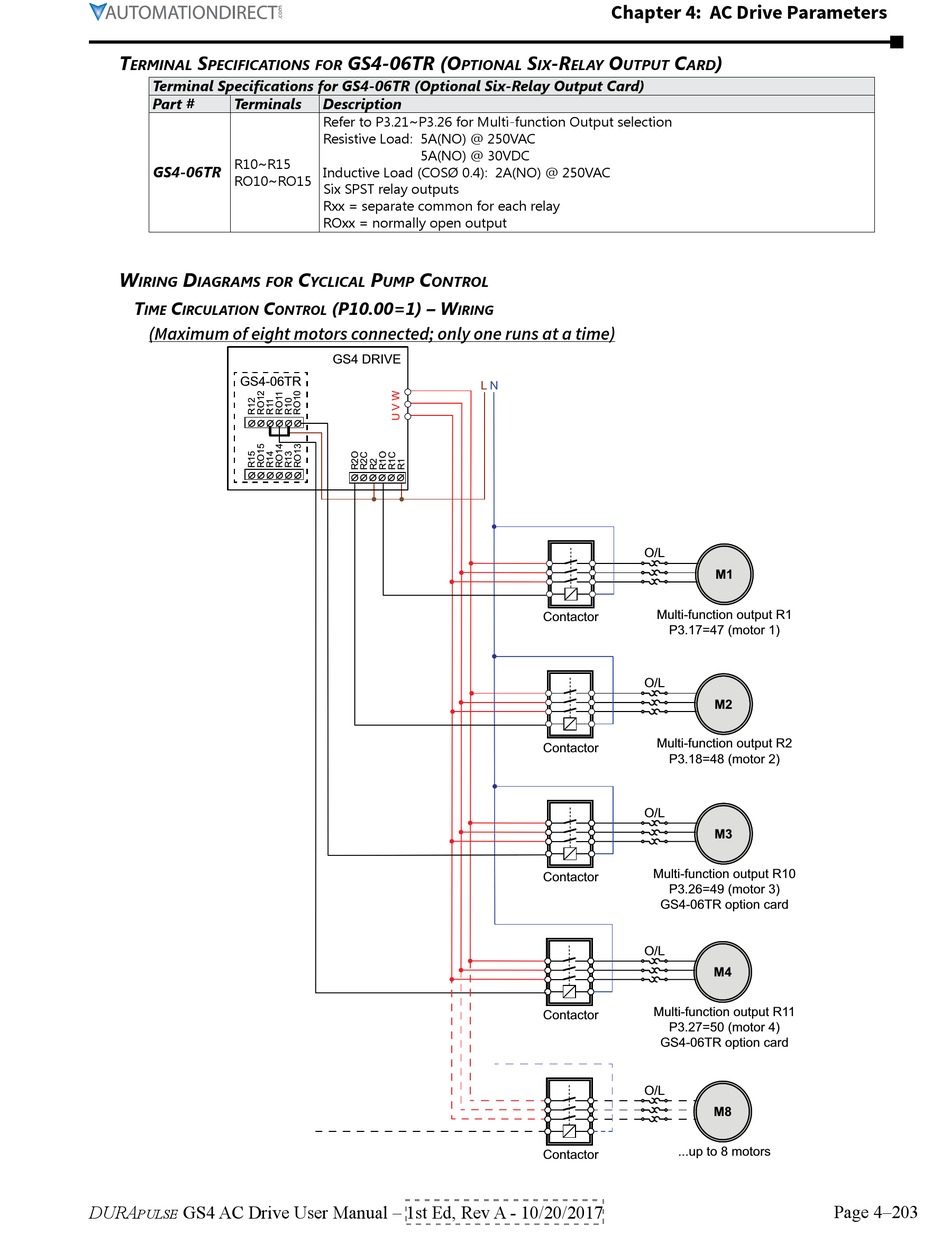

Terminal Specifications for GS4-06TR (Optional Six-Relay Output Card)
Part # Terminals
R10~R15
GS4-06TR
RO10~RO15
w d
iring iagraMs For
t c c
iMe irculation
(Maximum of eight motors connected; only one runs at a time)
GS4-06TR
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
gs4-06tr (o
Description
Refer to P3�21~P3�26 for Multi-function Output selection
Resistive Load: 5A(NO) @ 250VAC
5A(NO) @ 30VDC
In ductive Load (COSØ 0�4): 2A(NO) @ 250VAC
Six SPST relay outputs
Rxx = separate common for each relay
ROxx = normally open output
c P c
yclical uMP ontrol
(P10.00=1) – w
ontrol
GS4 DRIVE
Chapter 4: AC Drive Parameters
s -r o
Ptional ix elay utPut
iring
L N
Contactor
Contactor
Contactor
Contactor
Contactor
c )
ard
O/L
M1
Multi-function output R1
P3.17=47 (motor 1)
O/L
M2
Multi-function output R2
P3.18=48 (motor 2)
O/L
M3
Multi-function output R10
P3.26=49 (motor 3)
GS4-06TR option card
O/L
M4
Multi-function output R11
P3.27=50 (motor 4)
GS4-06TR option card
O/L
M8
...up to 8 motors
Page 4–203
