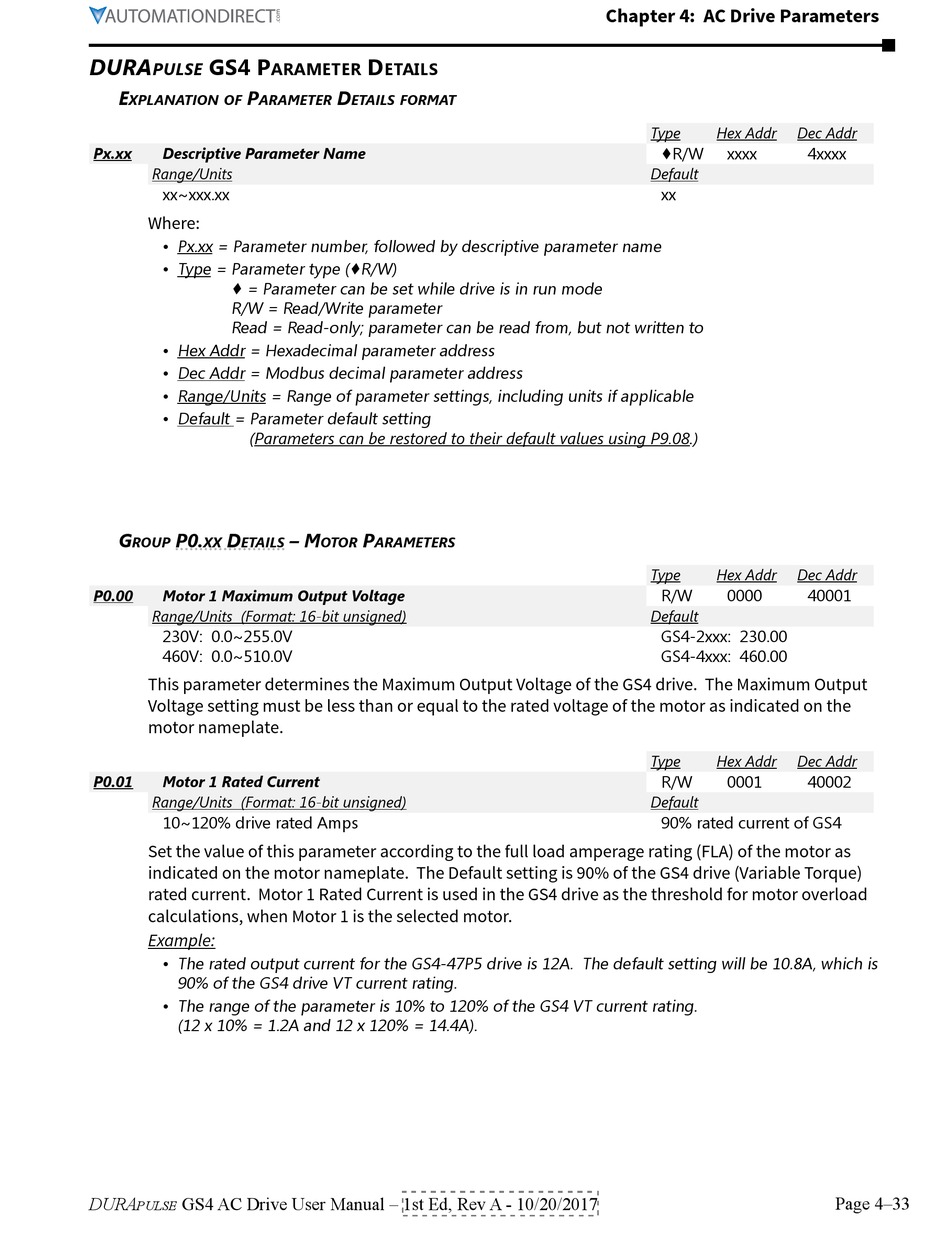

Automation Direct DURApulse GS4 User Manual page 127

dura GS4 P
Pulse
e P
xPlanation oF araMeter
Px.xx Descriptive Parameter Name
Range/Units
xx~xxx�xx
Where:
• Px�xx = Parameter number, followed by descriptive parameter name
• Type = Parameter type (♦R/W)
♦ = Parameter can be set while drive is in run mode
R/W = Read/Write parameter
Read = Read-only; parameter can be read from, but not written to
• Hex Addr = Hexadecimal parameter address
• Dec Addr = Modbus decimal parameter address
• Range/Units = Range of parameter settings, including units if applicable
• Default = Parameter default setting
(Parameters can be restored to their default values using P9.08.)
g P0. d
rouP xx etails
P0.00 Motor 1 Maximum Output Voltage
Range/Units (Format: 16-bit unsigned)
230V: 0�0~255�0V
460V: 0�0~510�0V
This parameter determines the Maximum Output Voltage of the GS4 drive. The Maximum Output
Voltage setting must be less than or equal to the rated voltage of the motor as indicated on the
motor nameplate.
P0.01 Motor 1 Rated Current
Range/Units (Format: 16-bit unsigned)
10~120% drive rated Amps
Set the value of this parameter according to the full load amperage rating (FLA) of the motor as
indicated on the motor nameplate. The Default setting is 90% of the GS4 drive (Variable Torque)
rated current. Motor 1 Rated Current is used in the GS4 drive as the threshold for motor overload
calculations, when Motor 1 is the selected motor.
Example:
• The rated output current for the GS4-47P5 drive is 12A� The default setting will be 10�8A, which is
90% of the GS4 drive VT current rating�
• The range of the parameter is 10% to 120% of the GS4 VT current rating�
(12 x 10% = 1�2A and 12 x 120% = 14�4A)�
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
D
arameter etailS
d
etails ForMat
– M P
otor araMeters
Chapter 4: AC Drive Parameters
Type Hex Addr
♦R/W xxxx
Default
xx
Type Hex Addr
R/W 0000
Default
GS4-2xxx: 230�00
GS4-4xxx: 460�00
Type Hex Addr
R/W 0001
Default
90% rated current of GS4
Dec Addr
4xxxx
Dec Addr
40001
Dec Addr
40002
Page 4–33
