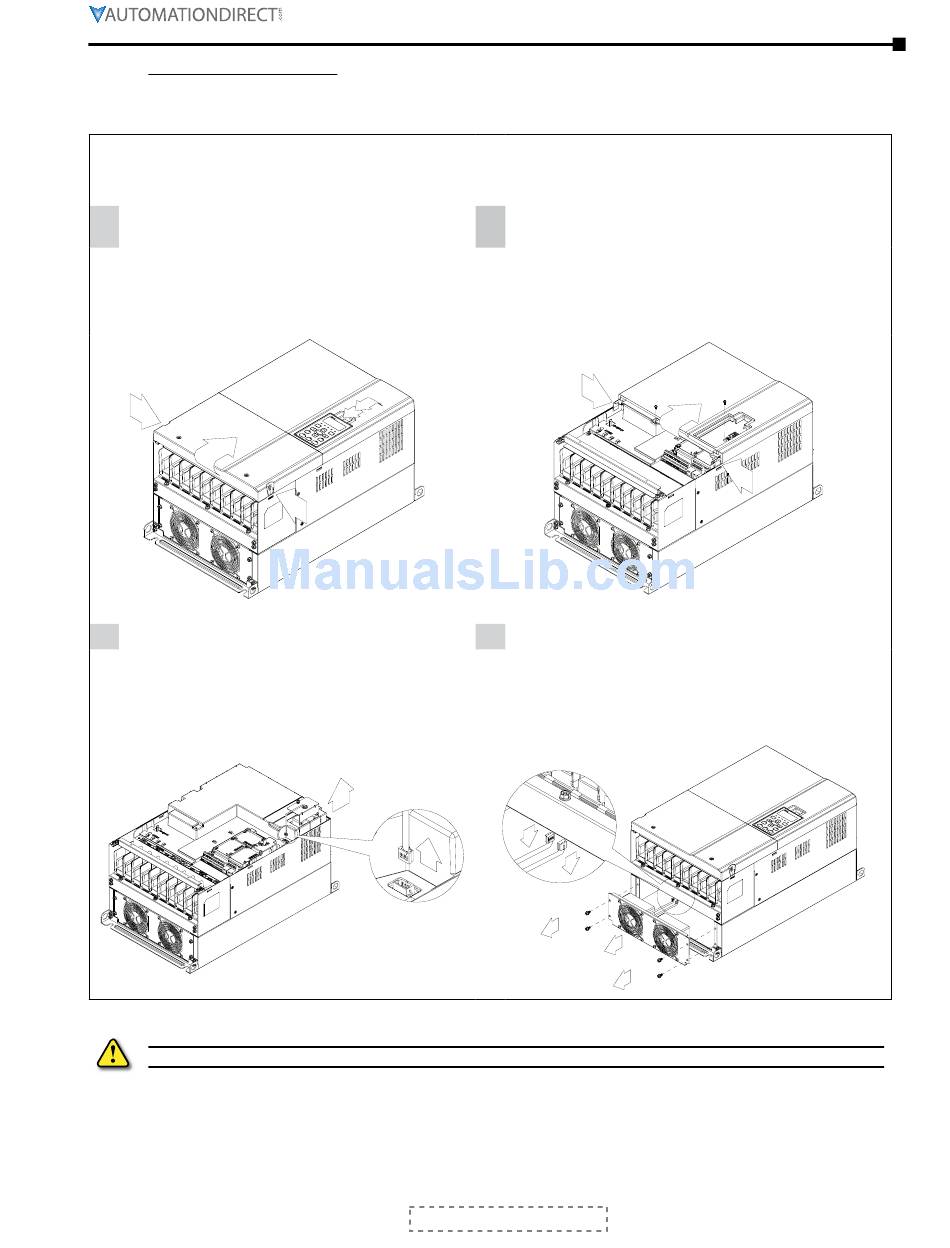

Fan Removal (continued)
f d
rame
Applicable models:
GS4-2040, GS4-2050, GS4-4075, GS4-4100
Loosen screw 1 and 2, press the tab on the
1
right and the left to remove the cover, follow
the direction the arrows indicate. Press the
tab on top of digital keypad GS4-KPD to
properly remove the keypad.
Screw torque: 10 - 12 kg·cm (8.6 - 10.4 lb·in)
1
2
3 Loosen screw 5 and disconnect the fan power.
Screw torque: 10 - 12 kg·cm (8.6 - 10.4 lb·in)
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
5
Loosen screw 3 and 4, press the tab on the right
2
and the left to remove the cover.
Screw torque: 6 - 8 kg·cm (5.2 - 6.9 lb·in)
3
4 For heat sink fan:
Step 1. Loosen the screws.
Screw torque: 24 - 26 kg·cm (20.8 - 22.6 lb·in)
Step 2. Disconnect fan power and pull out the fan.
1
2
3
4
Appendix A: Accessories
4
Page A–51
