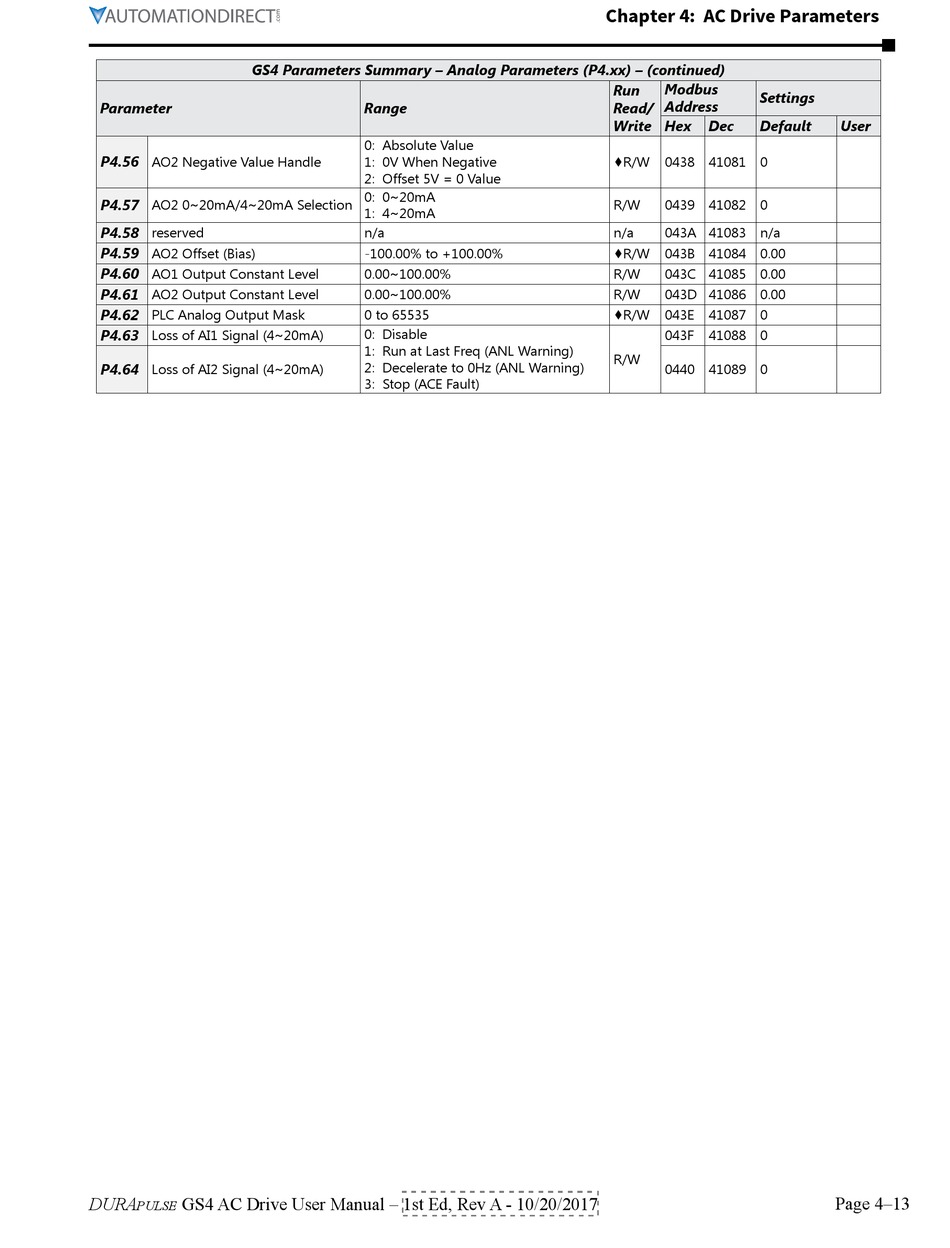

GS4 Parameters Summary – Analog Parameters (P4.xx) – (continued)
Parameter
P4.56 AO2 Negative Value Handle
P4.57
AO2 0~20mA/4~20mA Selection
P4.58
reserved
P4.59
AO2 Offset (Bias)
P4.60
AO1 Output Constant Level
P4.61
AO2 Output Constant Level
P4.62
PLC Analog Output Mask
P4.63
Loss of AI1 Signal (4~20mA)
P4.64
Loss of AI2 Signal (4~20mA)
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Range
0: Absolute Value
1: 0V When Negative
2: Offset 5V = 0 Value
0: 0~20mA
1: 4~20mA
n/a
-100�00% to +100�00%
0�00~100�00%
0�00~100�00%
0 to 65535
0: Disable
1: Run at Last Freq (ANL Warning)
2: Decelerate to 0Hz (ANL Warning)
3: Stop (ACE Fault)
Chapter 4: AC Drive Parameters
Modbus
Run
Settings
Address
Read/
Write Hex Dec Default
♦R/W 0438 41081 0
R/W 0439 41082 0
n/a 043A 41083 n/a
♦R/W 043B 41084 0�00
R/W 043C 41085 0�00
R/W 043D 41086 0�00
♦R/W 043E 41087 0
043F 41088 0
R/W
0440 41089 0
