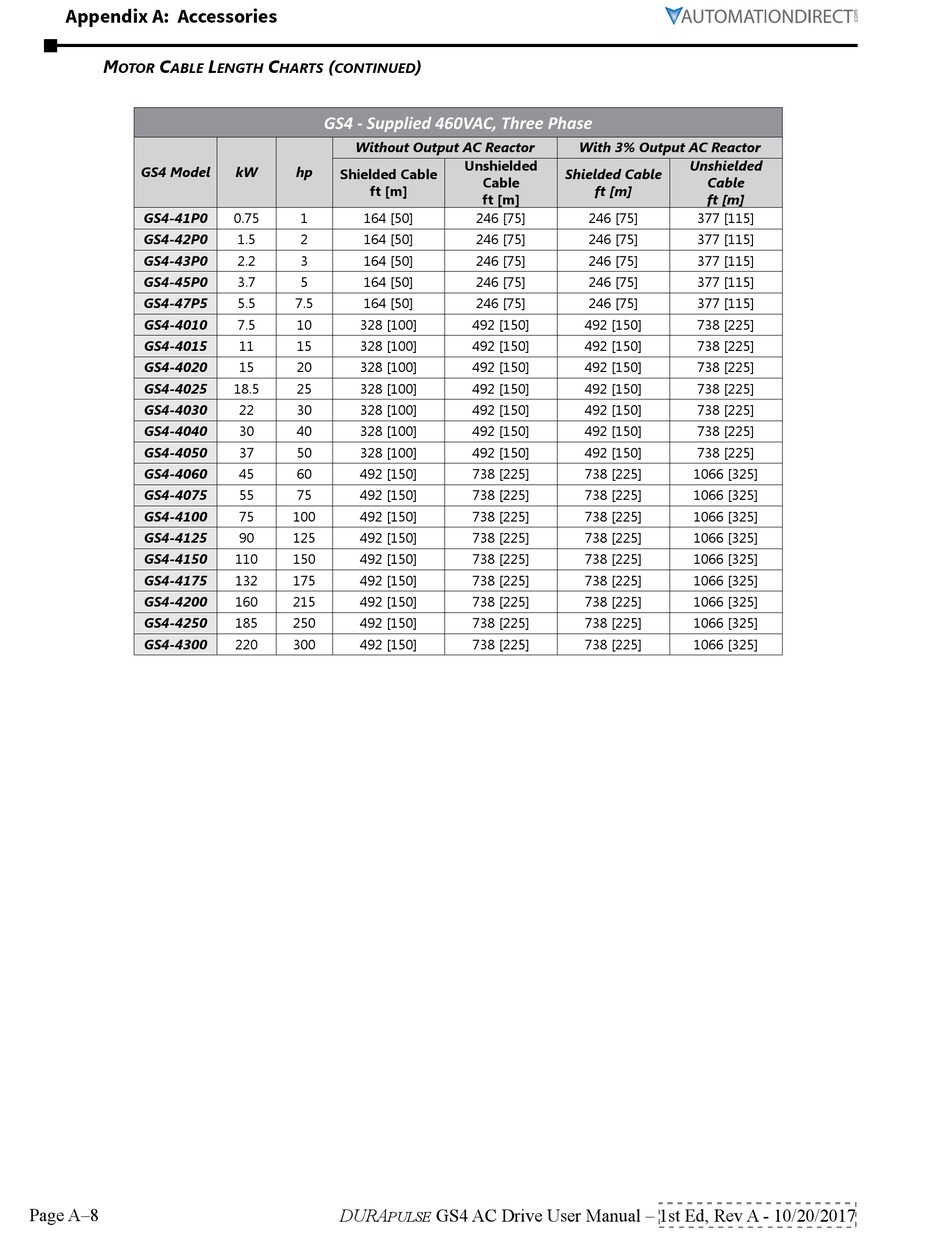

Appendix A: Accessories
m C
oTor able
GS4 Model
GS4-41P0
GS4-42P0
GS4-43P0
GS4-45P0
GS4-47P5
GS4-4010
GS4-4015
GS4-4020
GS4-4025
GS4-4030
GS4-4040
GS4-4050
GS4-4060
GS4-4075
GS4-4100
GS4-4125
GS4-4150
GS4-4175
GS4-4200
GS4-4250
GS4-4300
Page A–8
l C (
engTh harTs ConTinued
GS4 - Supplied 460VAC, Three Phase
Without Output AC Reactor
kW hp
Shielded Cable
ft [m]
0�75 1 164 [50]
1�5 2 164 [50]
2�2 3 164 [50]
3�7 5 164 [50]
5�5 7�5 164 [50]
7�5 10 328 [100]
11 15 328 [100]
15 20 328 [100]
18�5 25 328 [100]
22 30 328 [100]
30 40 328 [100]
37 50 328 [100]
45 60 492 [150]
55 75 492 [150]
75 100 492 [150]
90 125 492 [150]
110 150 492 [150]
132 175 492 [150]
160 215 492 [150]
185 250 492 [150]
220 300 492 [150]
DuRA
)
Unshielded
Shielded Cable
Cable
ft [m]
246 [75]
246 [75]
246 [75]
246 [75]
246 [75]
492 [150]
492 [150]
492 [150]
492 [150]
492 [150]
492 [150]
492 [150]
738 [225]
738 [225]
738 [225]
738 [225]
738 [225]
738 [225]
738 [225]
738 [225]
738 [225]
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
With 3% Output AC Reactor
Unshielded
Cable
ft [m]
ft [m]
246 [75] 377 [115]
246 [75] 377 [115]
246 [75] 377 [115]
246 [75] 377 [115]
246 [75] 377 [115]
492 [150] 738 [225]
492 [150] 738 [225]
492 [150] 738 [225]
492 [150] 738 [225]
492 [150] 738 [225]
492 [150] 738 [225]
492 [150] 738 [225]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
738 [225] 1066 [325]
