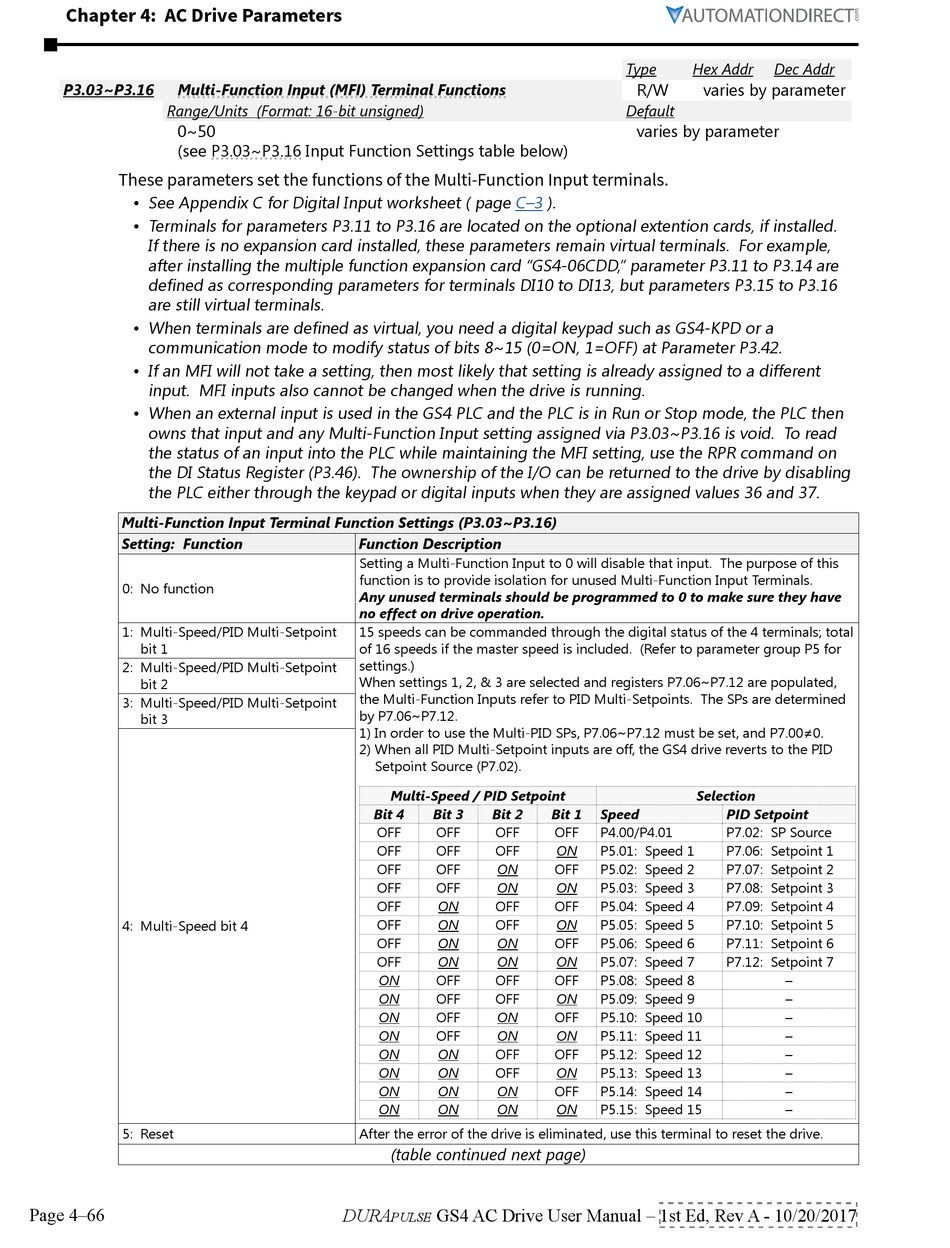

Automation Direct DURApulse GS4 User Manual page 160

Chapter 4: AC Drive Parameters
P3.03~P3.16 Multi-Function Input (MFI) Terminal Functions
Range/Units (Format: 16-bit unsigned)
0~50
(see P3�03~P3�16 Input Function Settings table below)
These parameters set the functions of the Multi-Function Input terminals.
• See Appendix C for Digital Input worksheet ( page
• Terminals for parameters P3�11 to P3�16 are located on the optional extention cards, if installed�
If there is no expansion card installed, these parameters remain virtual terminals� For example,
after installing the multiple function expansion card "GS4-06CDD," parameter P3�11 to P3�14 are
defined as corresponding parameters for terminals DI10 to DI13, but parameters P3�15 to P3�16
are still virtual terminals�
• When terminals are defined as virtual, you need a digital keypad such as GS4-KPD or a
communication mode to modify status of bits 8~15 (0=ON, 1=OFF) at Parameter P3�42�
• If an MFI will not take a setting, then most likely that setting is already assigned to a different
input� MFI inputs also cannot be changed when the drive is running�
• When an external input is used in the GS4 PLC and the PLC is in Run or Stop mode, the PLC then
owns that input and any Multi-Function Input setting assigned via P3�03~P3�16 is void� To read
the status of an input into the PLC while maintaining the MFI setting, use the RPR command on
the DI Status Register (P3�46)� The ownership of the I/O can be returned to the drive by disabling
the PLC either through the keypad or digital inputs when they are assigned values 36 and 37�
Multi-Function Input Terminal Function Settings (P3.03~P3.16)
Setting: Function
0: No function
1: Multi-Speed/PID Multi-Setpoint
bit 1
2: Multi-Speed/PID Multi-Setpoint
bit 2
3: Multi-Speed/PID Multi-Setpoint
bit 3
4: Multi-Speed bit 4
5: Reset
Page 4–66
C–3
Function Description
Setting a Multi-Function Input to 0 will disable that input� The purpose of this
function is to provide isolation for unused Multi-Function Input Terminals�
Any unused terminals should be programmed to 0 to make sure they have
no effect on drive operation.
15 speeds can be commanded through the digital status of the 4 terminals; total
of 16 speeds if the master speed is included� (Refer to parameter group P5 for
settings�)
When settings 1, 2, & 3 are selected and registers P7�06~P7�12 are populated,
the Multi-Function Inputs refer to PID Multi-Setpoints� The SPs are determined
by P7�06~P7�12�
1) In order to use the Multi-PID SPs, P7.06~P7.12 must be set, and P7.00≠0.
2) When all PID Multi-Setpoint inputs are off, the GS4 drive reverts to the PID
Setpoint Source (P7�02)�
Multi-Speed / PID Setpoint
Bit 4 Bit 3 Bit 2
OFF OFF OFF
OFF OFF OFF
OFF OFF ON
OFF OFF ON
OFF ON OFF
OFF ON OFF
OFF ON ON
OFF ON ON
ON OFF OFF
ON OFF OFF
ON OFF ON
ON OFF ON
ON ON OFF
ON ON OFF
ON ON ON
ON ON ON
After the error of the drive is eliminated, use this terminal to reset the drive�
(table continued next page)
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr
R/W varies by parameter
Default
varies by parameter
)�
Selection
Bit 1 Speed
OFF P4�00/P4�01
ON P5�01: Speed 1
OFF P5�02: Speed 2
ON P5�03: Speed 3
OFF P5�04: Speed 4
ON P5�05: Speed 5
OFF P5�06: Speed 6
ON P5�07: Speed 7
OFF P5�08: Speed 8
ON P5�09: Speed 9
OFF P5�10: Speed 10
ON P5�11: Speed 11
OFF P5�12: Speed 12
ON P5�13: Speed 13
OFF P5�14: Speed 14
ON P5�15: Speed 15
Dec Addr
PID Setpoint
P7�02: SP Source
P7�06: Setpoint 1
P7�07: Setpoint 2
P7�08: Setpoint 3
P7�09: Setpoint 4
P7�10: Setpoint 5
P7�11: Setpoint 6
P7�12: Setpoint 7
–
–
–
–
–
–
–
–
