gs4-fmkiT-C i

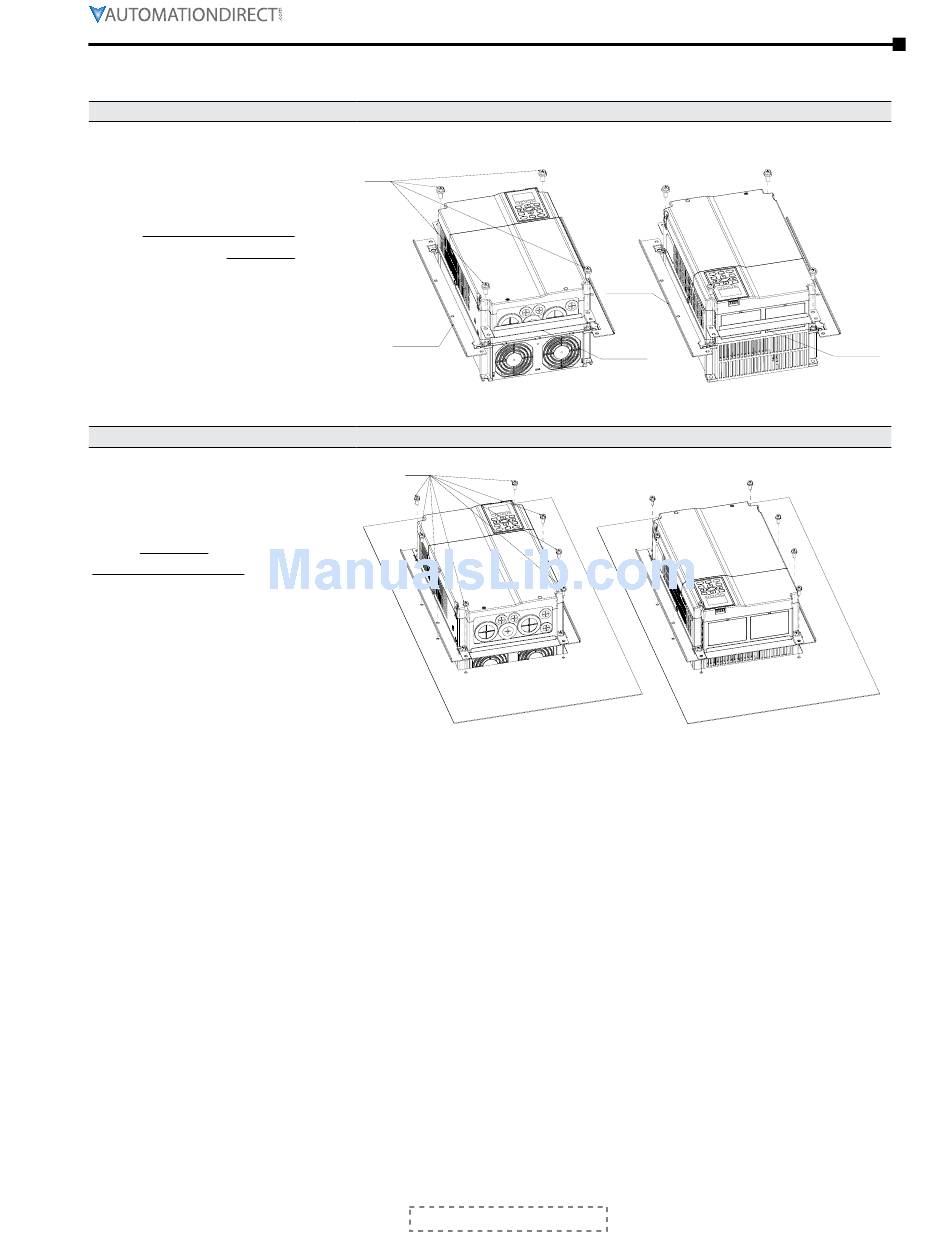

Install accessories 1 and 2 by

fastening 4 of the screws 1 (M8).

Screw torque:

50 - 55 kg·cm (43.4 - 47.7 Ib·in).

For plate installation, place 8

of the screws 2 (M6) through

accessories 1 and 2 and then

fasten to the plate.

Screw torque:

25 - 30 kg·cm (5.21 - 6.94 Ib·in).

GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
