Chapter 4: AC Drive Parameters
Parameter
P8.02
User Defined Format
P8.03
User Defined Max
P8.04
User Defined Setpoint
P8.05
Output Frequency Gain
P8.06
Password Input
P8.07
Password Set Up
P8.08
Power On Counter
P8.09
Power On Day
P8.10
Power On Minute
Page 4–22

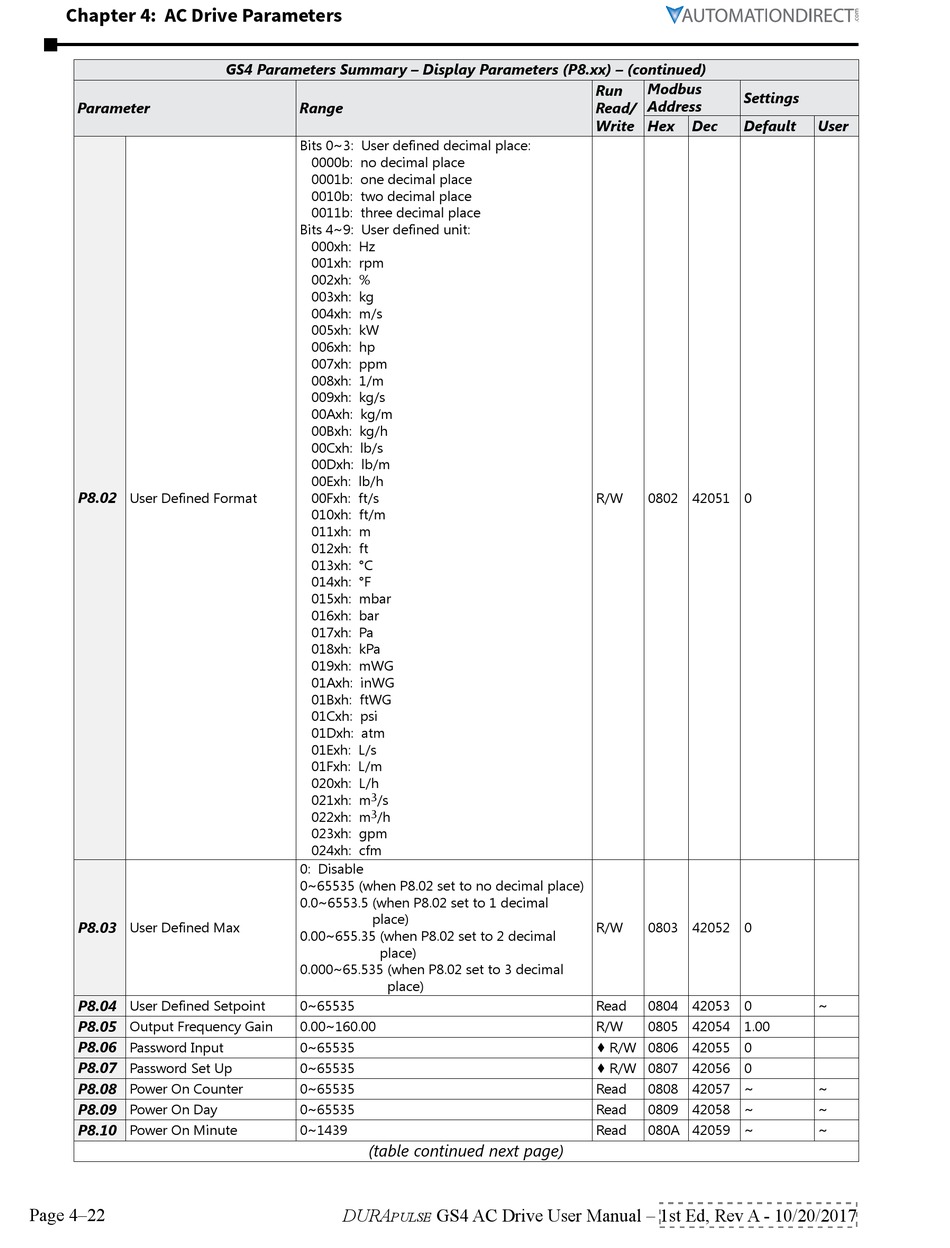

GS4 Parameters Summary – Display Parameters (P8.xx) – (continued)
Range
Bi ts 0~3: User defined decimal place:
0000b: no decimal place
0001b: one decimal place
0010b: two decimal place
0011b: three decimal place
Bi ts 4~9: User defined unit:
000xh: Hz
001xh: rpm
002xh: %
003xh: kg
004xh: m/s
005xh: kW
006xh: hp
007xh: ppm
008xh: 1/m
009xh: kg/s
00Axh: kg/m
00Bxh: kg/h
00Cxh: lb/s
00Dxh: lb/m
00Exh: lb/h
00Fxh: ft/s
010xh: ft/m
011xh: m
012xh: ft
013xh: °C
014xh: °F
015xh: mbar
016xh: bar
017xh: Pa
018xh: kPa
019xh: mWG
01Axh: inWG
01Bxh: ftWG
01Cxh: psi
01Dxh: atm
01Exh: L/s
01Fxh: L/m
020xh: L/h
021xh: m 3 /s
3
022xh: m /h
023xh: gpm
024xh: cfm
0: Disable
0~65535 (when P8�02 set to no decimal place)
0�0~6553�5 (when P8�02 set to 1 decimal
place)
0�00~655�35 (when P8�02 set to 2 decimal
place)
0�000~65�535 (when P8�02 set to 3 decimal
place)
0~65535
0�00~160�00
0~65535
0~65535
0~65535
0~65535
0~1439
(table continued next page)
DURA
pulse
Run
Read/
Write
R/W
R/W
Read
R/W
♦ R/W 0806 42055 0
♦ R/W 0807 42056 0
Read
Read
Read
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Modbus
Settings
Address
Hex Dec Default User
0802 42051 0
0803 42052 0
0804 42053 0 ~
0805 42054 1�00
0808 42057 ~ ~
0809 42058 ~ ~
080A 42059 ~ ~
