Chapter 4: AC Drive Parameters

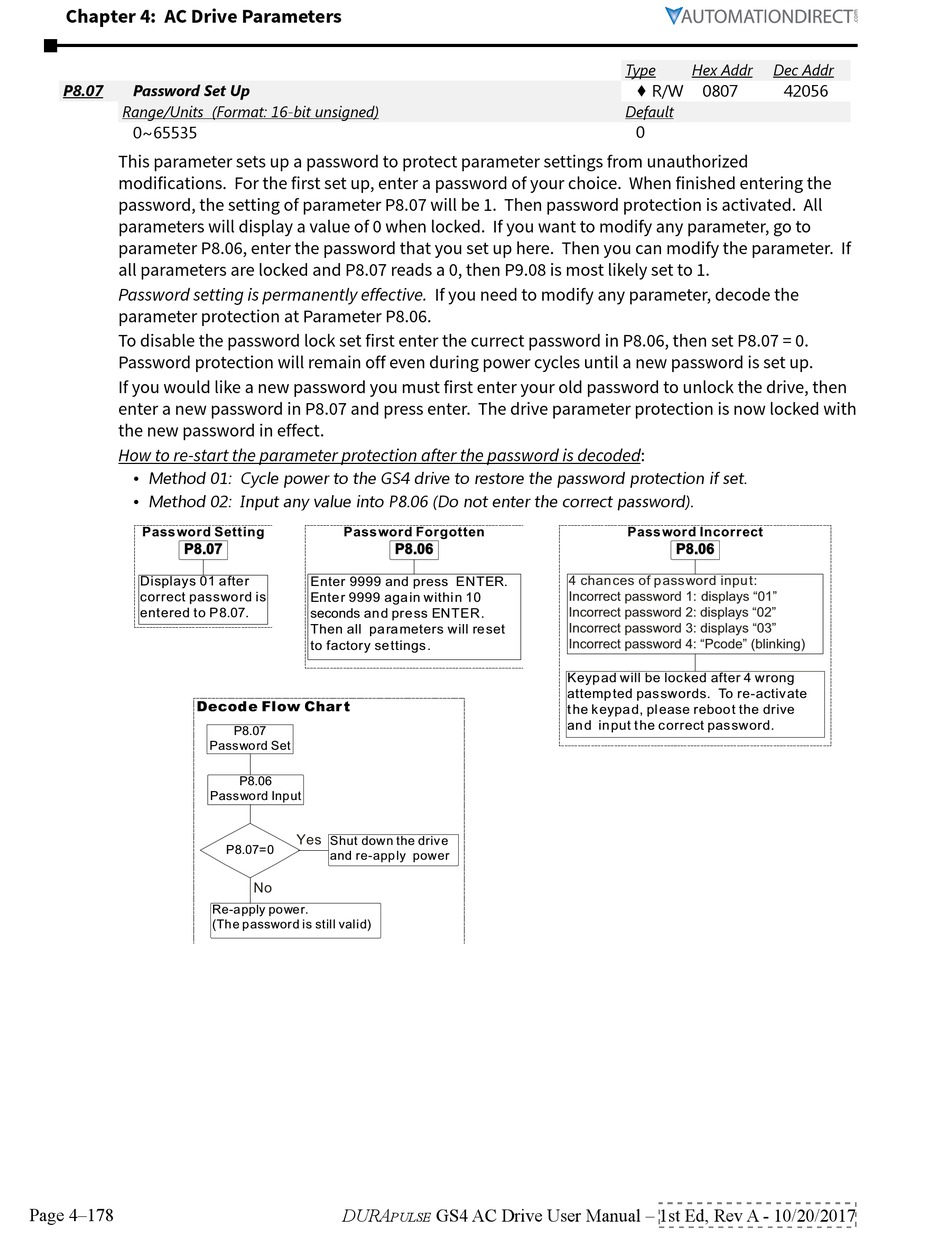

P8.07 Password Set Up
Range/Units (Format: 16-bit unsigned)
0~65535
This parameter sets up a password to protect parameter settings from unauthorized
modifications. For the first set up, enter a password of your choice. When finished entering the
password, the setting of parameter P8.07 will be 1. Then password protection is activated. All
parameters will display a value of 0 when locked. If you want to modify any parameter, go to
parameter P8.06, enter the password that you set up here. Then you can modify the parameter. If
all parameters are locked and P8.07 reads a 0, then P9.08 is most likely set to 1.
Password setting is permanently effective. If you need to modify any parameter, decode the
parameter protection at Parameter P8.06.
To disable the password lock set first enter the currect password in P8.06, then set P8.07 = 0.
Password protection will remain off even during power cycles until a new password is set up.
If you would like a new password you must first enter your old password to unlock the drive, then
enter a new password in P8.07 and press enter. The drive parameter protection is now locked with
the new password in effect.
How to re-start the parameter protection after the password is decoded:
• Method 01: Cycle power to the GS4 drive to restore the password protection if set�
• Method 02: Input any value into P8�06 (Do not enter the correct password)�
Pass word Setting
P8.07
Displays 01 after
correct password is
entered to P8.07.
Decode Flow Char t
Page 4–178
Pass word Forgotten
P8.06
Enter 9999 and press ENTER.
Ente r 9999 aga in withi n 10
seconds an d pre ss ENTER.
Then all pa ra meters will re set
to factory se ttings.
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr
♦ R/W 0807
Default
0
Pass word Incorrect
P8.06
4 chan ces of p ass word inpu t:
Incorrect password 1: displays "01"
Incorrect password 2: displays "02"
Incorrect password 3: displays "03"
Incorrect password 4: "Pcode" (blinking)
Keyp ad will be loc ked after 4 wrong
attemp ted pas swords. To re-activ ate
t he k eypa d, pl ease reboo t the drive
an d in put t he c orrect pas sword.
Dec Addr
42056
