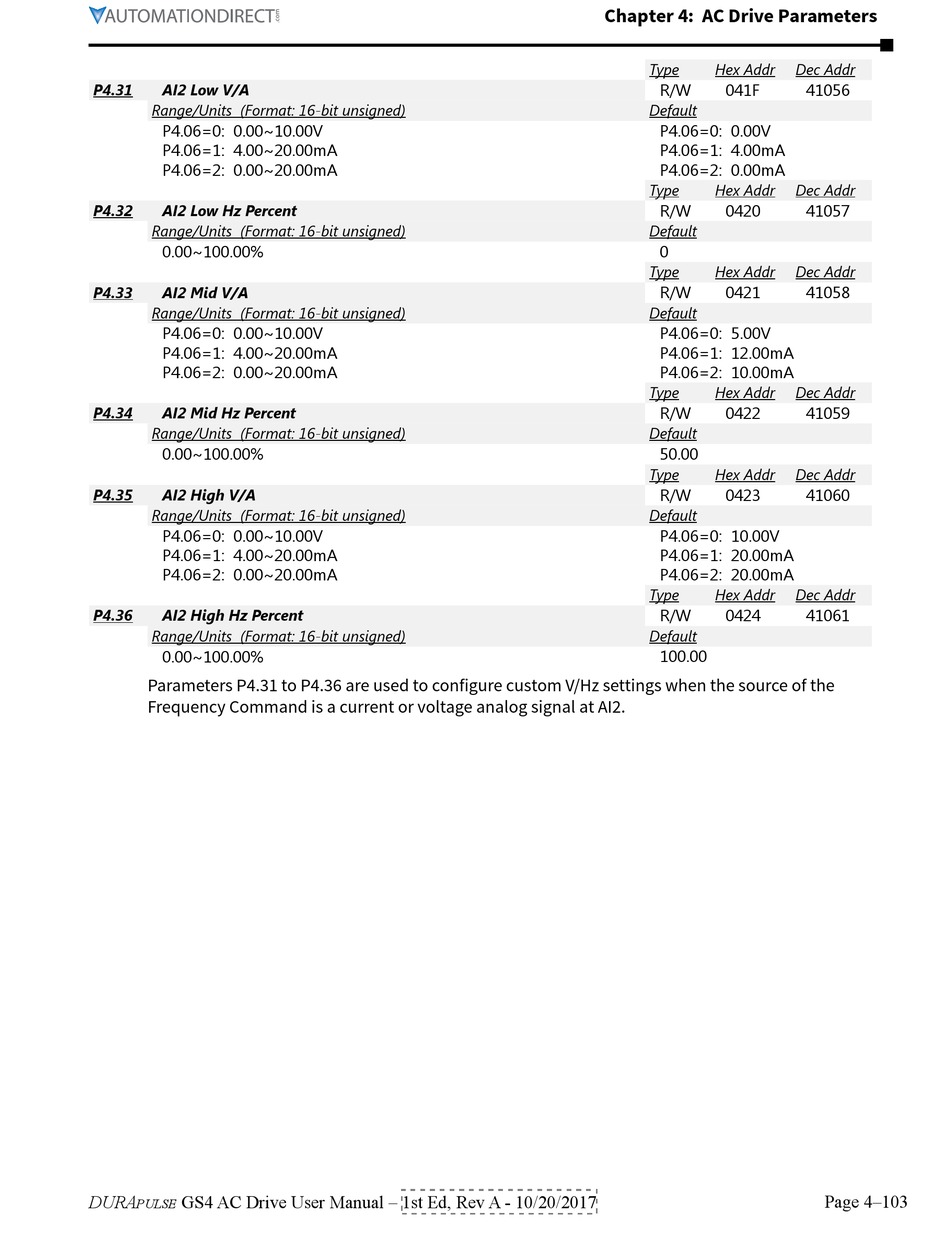

Automation Direct DURApulse GS4 User Manual page 197

P4.31 AI2 Low V/A
Range/Units (Format: 16-bit unsigned)
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
P4.32 AI2 Low Hz Percent
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
P4.33 AI2 Mid V/A
Range/Units (Format: 16-bit unsigned)
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
P4.34 AI2 Mid Hz Percent
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
P4.35 AI2 High V/A
Range/Units (Format: 16-bit unsigned)
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
P4.36 AI2 High Hz Percent
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
Parameters P4.31 to P4.36 are used to configure custom V/Hz settings when the source of the
Frequency Command is a current or voltage analog signal at AI2.
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Chapter 4: AC Drive Parameters
Type Hex Addr
R/W 041F
Default
P4 �06=0: 0�00V
P4 �06=1: 4�00mA
P4 �06=2: 0�00mA
Type Hex Addr
R/W 0420
Default
0
Type Hex Addr
R/W 0421
Default
P4 �06=0: 5�00V
P4 �06=1: 12�00mA
P4 �06=2: 10�00mA
Type Hex Addr
R/W 0422
Default
50�00
Type Hex Addr
R/W 0423
Default
P4 �06=0: 10�00V
P4 �06=1: 20�00mA
P4 �06=2: 20�00mA
Type Hex Addr
R/W 0424
Default
100�00
Dec Addr
41056
Dec Addr
41057
Dec Addr
41058
Dec Addr
41059
Dec Addr
41060
Dec Addr
41061
Page 4–103
