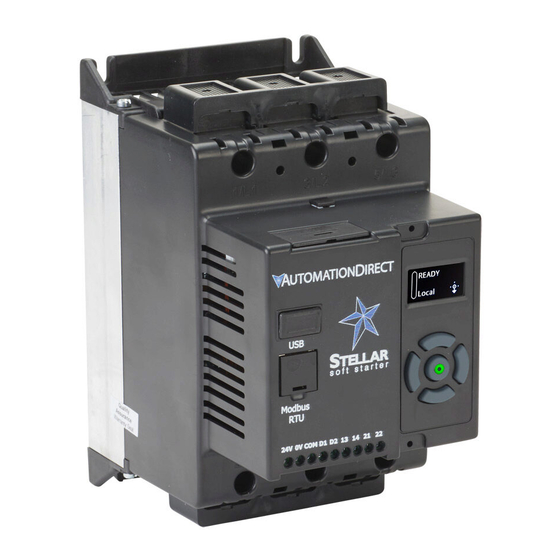

Summary of Contents for Automation Direct Stellar SR35 Series
- Page 1 ® Sr35 S tellar tarter uick tart uide...
-
Page 2: Table Of Contents
SR35 Quick-Start Guide able of onTenTs Safety 3 Important information 3 Mechanical Installation 4 Mounting 4... -
Page 3: Safety
SR35 Quick-Start Guide Safety mporTanT InformaTIon Installers should read and understand the instructions in this guide prior to installing, operating and maintaining the soft start. The following symbols may appear in this guide or on the soft start to warn of potential hazards or to draw attention to certain information. -
Page 4: Mechanical Installation
SR35 Quick-Start Guide Mechanical Installation ounTIng Fix the unit to a flat, vertical surface using the mounting holes (or slots) on its base-plate. The mechanical outline diagrams, shown on page 6, give the dimensions and mounting hole positions for each model. Ensure that: •... -
Page 5: Handling
SR35 Quick-Start Guide andlIng The SR35 soft start range is comprised of three frame sizes of various weights and dimensions. See “Dimensions” on page 6 for further information. Prior to installing the SR35 unit, the installer should carry out a risk assessment. If considered appropriate, a suitable handling device should be used. -
Page 6: Dimensions & Weights
SR35 Quick-Start Guide & W ImensIons eIgHTs 1: sr35-017 sr35-065 – d rame ImensIons 108 [4.25] 148 [5.83] 90 [3.54] 197kg [375lb] eIgHT Note: SR35 soft starters may be horizontally mounted with deration. See Horizontal Mounting Rating Tables learanCe ImensIons 1: sr35-017 sr35-065 –... - Page 7 SR35 Quick-Start Guide & W ImensIons eIgHTs 2: sr35-077 sr35-192 – d rame ImensIons 147 [5.8] 237 [9.3] 75 [3.0] 6 kg [1322lb] eIgHT Note: SR35 soft starters may be horizontally mounted with deration. See Horizontal Mounting Rating Tables learanCe ImensIons 2: sr35-077 sr35-192 –...
- Page 8 SR35 Quick-Start Guide & W ImensIons eIgHTs 3: sr35-242 sr35-361 – d rame ImensIons 205 [8.1] 332 [13.1] 60 [2.4] 162.9 [6.4] 160 [6.3] 15kg [3310lb] eIgHT Note: SR35 soft starters may be horizontally mounted with deration. See Horizontal Mounting Rating Tables learanCe ImensIons 3: sr35-242...
-
Page 9: Electrical Installation
SR35 Quick-Start Guide Electrical Installation arnIngs solaTIon : sr35 autIon uses semIconDuctor DeVIces In the maIn cIrcuIt anD Is not DesIgneD to proVIDe IsolatIon or thIs reason IsolatIon means must be InstalleD In the supply cIrcuIt In accorDance wIth the approprIate wIrIng anD safety regulatIons leCTrICal onTrol upply... -
Page 10: Electrical Connections
SR35 Quick-Start Guide leCTrICal onneCTIons 3-Phase Electrical Supply USB Connector Connections (L1, L2, L3) RJ45 connector (Modbus RTU) Control Terminals AC Induction Motor Connections (T1, T2, T3) oWer IrCuIT IrIng Iagram pHase Protection Switch Gear (Provided by customer) Stellar® SR35 Series Soft Starter Quick Start Guide – 1st Ed – 07/09/2020... -
Page 11: Single-Phase Operation
SR35 Quick-Start Guide Ingle Hase peraTIon SR35 soft starters may be operated with a single-phase supply and motor. The base rating of the unit is unchanged. oWer IrCuIT IrIng Iagram pHase NOTE: Refer to the SR35 single-phase AC motor connectivity insert for additional single-phase motor wiring details. -
Page 12: Control Terminal Connections
SR35 Quick-Start Guide onTrol ermInal onneCTIons onTrol ermInal unCTIons Control Terminal Functions Function Terminal Description Default Note Selectable 24Vdc Control Supply +Us Control Supply -Us Digital Inputs Common Digital Input 1 Digital Input 2 13/14 Main Contactor Control (Run Relay) 21/22 Fault Relay 1) 24VDC Specification: See “General Specifications”... -
Page 13: 3-Wire Control Circuit Wiring Diagram
SR35 Quick-Start Guide onTrol IrCuIT IrIng Iagram 3-Wire Control Circuit Wiring Diagram Stop Start NOTE: 110 – 230V control supply possible with optional control supply module SR35-PSU onTrol IrCuIT IrIng Iagram 2-Wire Control Wiring Diagram Stop K22 Start K21 NOTE: 110 – 230V control supply possible with optional control supply module SR35-PSU Stellar®... -
Page 14: Motor Overload
SR35 Quick-Start Guide Motor Overload The SR35 provides full motor overload protection, configurable through the user interface. Overload trip settings are determined by the Motor Current setting and the Trip Class setting. Trip class choices are Class 10, Class 20, and Class 30. The SR35 soft starters are protected using full I T motor overload with memory. -
Page 15: Configuration And Parameters
SR35 Quick-Start Guide Configuration and Parameters Isplay and onTrols 1 Status messages READY 2 Instantaneous motor current Local 3 Control scheme; Local, Control Terminal, Modbus RTU 4 Keypad guidance wizard; Displays which keys are valid for specific menu items ... -
Page 16: How To Configure The Sr35
SR35 Quick-Start Guide sr35 oW To onfIgure THe Operation: Local Motor Start Example Navigation Method Quick Return to Status Screen Auto Application Setup (Center button to adjust) Stellar® SR35 Series Soft Starter Quick Start Guide – 1st Ed – 07/09/2020... -
Page 17: Auto Application Setup Parameter Settings
SR35 Quick-Start Guide pplICaTIon eTup arameTer eTTIngs Auto Application Setup Parameter Settings Initial Start Stop Trip Current Current Volts Time Time Class Limit Limit Time Unit Default Heavy Agitator Compressor 1 Compressor 2 Conveyor Loaded Conveyor Unloaded Crusher Fan High Inertia Fan Low Inertia Grinder... -
Page 18: Technical Information/Specification
SR35 Quick-Start Guide Technical Information/Specification eneral peCIfICaTIons General Specifications Product Standard EN 60947-4-2: 2012 Rated operational voltages 200VAC to 600VAC (See Key to part numbers) Rated operational current See “Rating Tables” on page 23 Rating index Rated frequencies 50 – 60Hz ± 5Hz Rated duty Uninterrupted Form designation... - Page 19 SR35 Quick-Start Guide General Specifications ( continued from previous page ) Supply input 0, 24V Kind of current, rated frequency Rated voltage U 24VDC Control Supply 12VA (SR35-017 to SR35- 065) Maximum power consumption 48VA (SR35-077 to SR35- As Standard 361) Programmable opto-isolated inputs D1, D2...
-
Page 20: Electromagnetic Compatibility
SR35 Quick-Start Guide leCTromagneTIC ompaTIbIlITy Electromagnetic Compatibility EMC Emission levels EN 55011 Class A IEC 61000-4-2 8kV/air discharge or 4kV/contact discharge IEC 61000-4-3 10 V/m 2kV/5kHz (main and power ports) IEC 61000-4-4 EMC Immunity levels 1kV/5kHz (signal ports) 2kV line-to-ground IEC 61000-4-5 1kV line-to-line IEC 61000-4-6... -
Page 21: Environmental Specifications
SR35 Quick-Start Guide nVIronmenTal peCIfICaTIons Environmental Specifications Model (SR35-) Frame Size Heat output (W) Weight kg [lb] 197 [420] Model (SR35-) Frame Size Heat output (W) Weight kg [lb] 600 [1323] Model (SR35-) Frame Size Heat output (W) Weight kg [lb] 1500 [3310] -20°C [-4°F] to 40°C [104°F] ;... -
Page 22: Short Circuit Protection
SR35 Quick-Start Guide HorT IrCuIT roTeCTIon Short Circuit Protection – SR35 Frame Size 1 Type designation (SR35-) 065-6 Rated operational current Rated conditional short circuit current Class J time-delay Maximum fuse #1 rating Z UL Listed inverse- Maximum time delay circuit rating Z breaker #1 Mersen 6,9 URD 30__... -
Page 23: Ratings Tables
SR35 Quick-Start Guide aTIngs ables Ratings Table – Vertically Mounted Trip Class Trip Class Trip Class : AC-53a: : AC-53a: : AC-53a: 220– 440– 550– 230V 400V 500V 200V 208V 3.5-17: 4-19: 4-29: 240V 480V 600V – – SR35-017 – SR35-017 SR35-022 SR35-017... - Page 24 ® Stellar SR35 Soft Starter Quick-Start Guide – First Edition – 01/22/2020...
