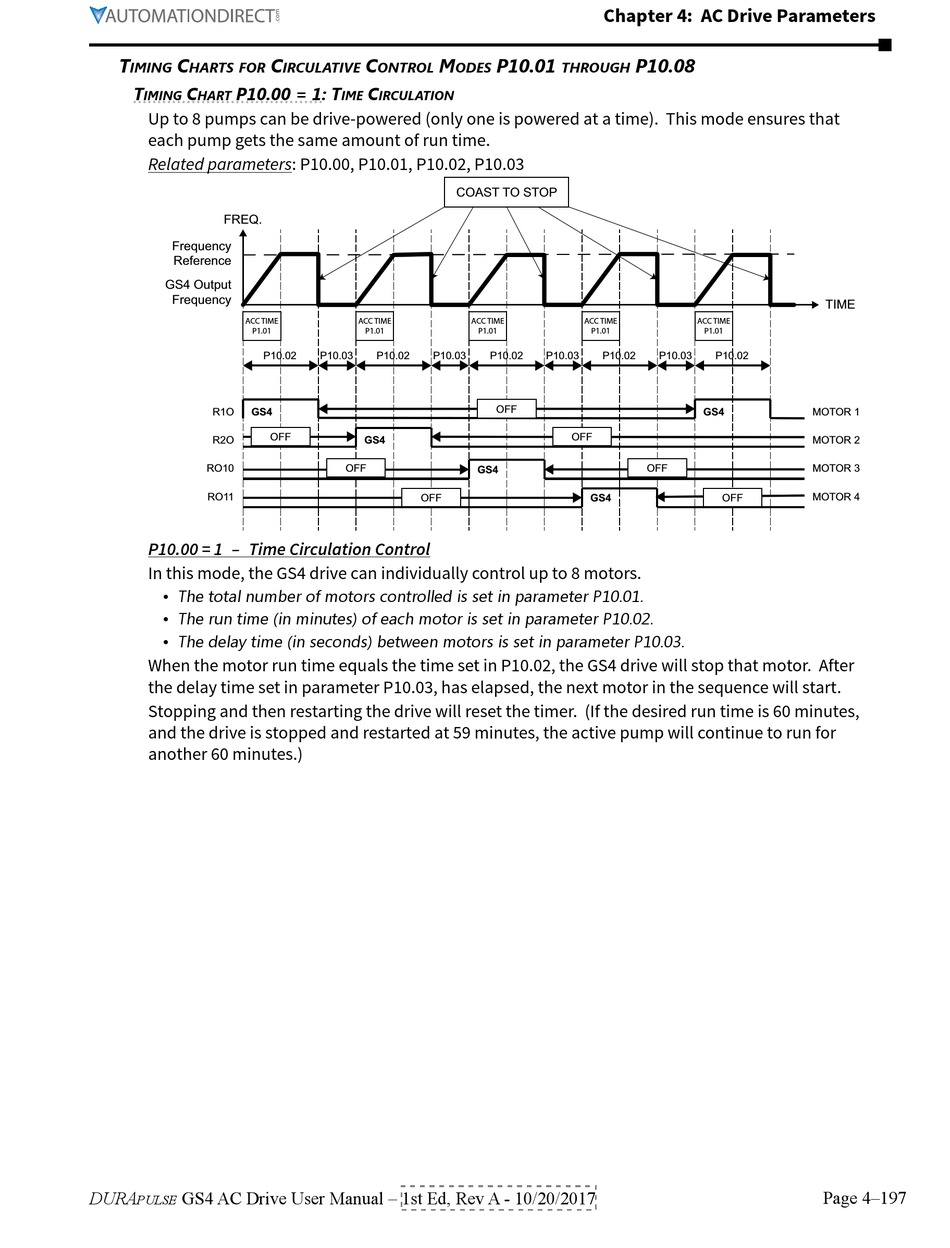

Up to 8 pumps can be drive-powered (only one is powered at a time). This mode ensures that
each pump gets the same amount of run time.
Related parameters: P10.00, P10.01, P10.02, P10.03
FREQ.
Frequency
Reference
GS4 Output
Frequency
ACC TIME
P1.01
P10.02
R1O GS4
R2O
RO10
RO11
P10.00 = 1 – Time Circulation Control
In this mode, the GS4 drive can individually control up to 8 motors.
• The total number of motors controlled is set in parameter P10�01�
• The run time (in minutes) of each motor is set in parameter P10�02�
• The delay time (in seconds) between motors is set in parameter P10�03�
When the motor run time equals the time set in P10.02, the GS4 drive will stop that motor. After
the delay time set in parameter P10.03, has elapsed, the next motor in the sequence will start.
Stopping and then restarting the drive will reset the timer. (If the desired run time is 60 minutes,
and the drive is stopped and restarted at 59 minutes, the active pump will continue to run for
another 60 minutes.)
