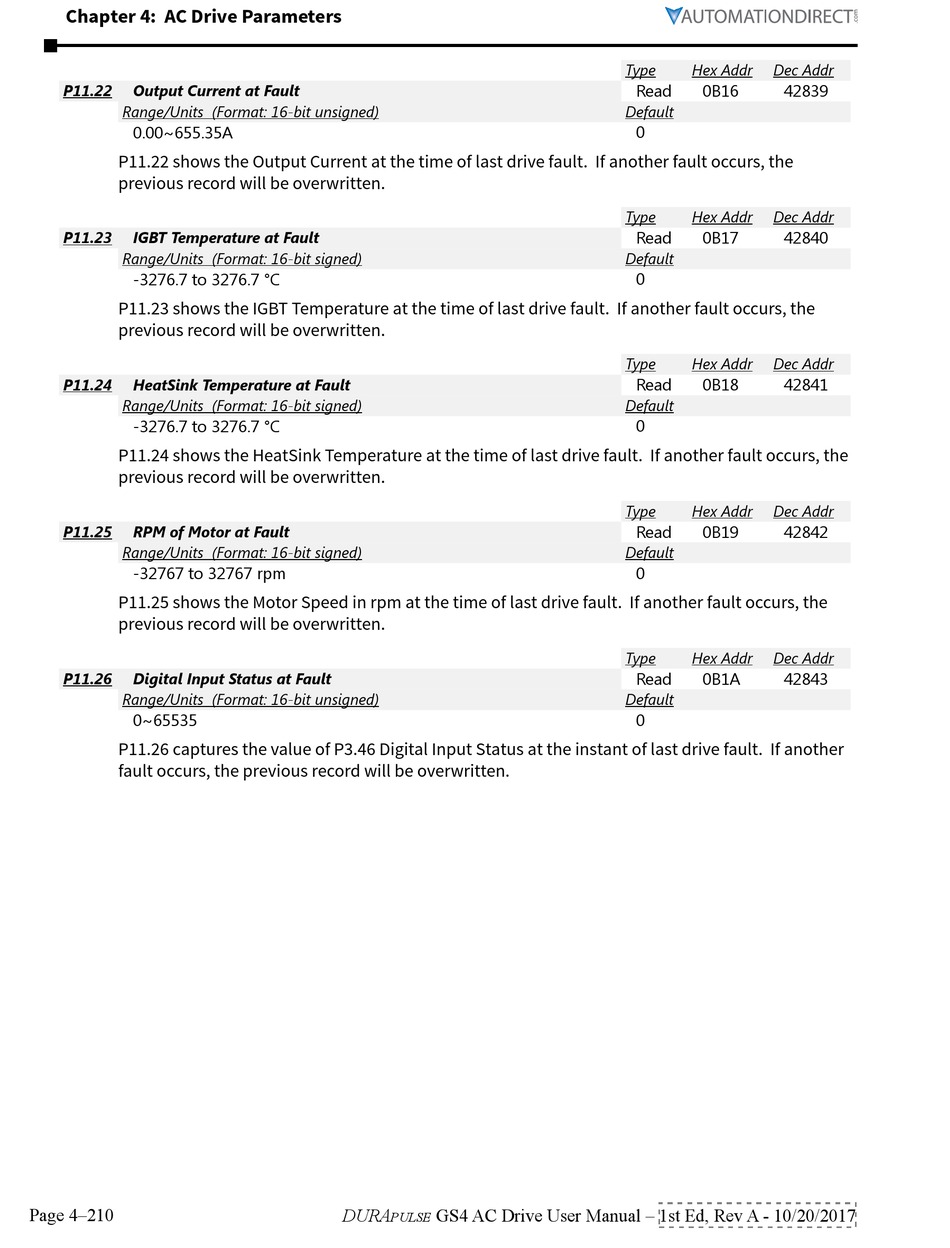

Automation Direct DURApulse GS4 User Manual page 304

Chapter 4: AC Drive Parameters
P11.22 Output Current at Fault
Range/Units (Format: 16-bit unsigned)
0�00~655�35A
P11.22 shows the Output Current at the time of last drive fault. If another fault occurs, the
previous record will be overwritten.
P11.23 IGBT Temperature at Fault
Range/Units (Format: 16-bit signed)
-3276�7 to 3276�7 °C
P11.23 shows the IGBT Temperature at the time of last drive fault. If another fault occurs, the
previous record will be overwritten.
P11.24 HeatSink Temperature at Fault
Range/Units (Format: 16-bit signed)
-3276�7 to 3276�7 °C
P11.24 shows the HeatSink Temperature at the time of last drive fault. If another fault occurs, the
previous record will be overwritten.
P11.25 RPM of Motor at Fault
Range/Units (Format: 16-bit signed)
-32767 to 32767 rpm
P11.25 shows the Motor Speed in rpm at the time of last drive fault. If another fault occurs, the
previous record will be overwritten.
P11.26 Digital Input Status at Fault
Range/Units (Format: 16-bit unsigned)
0~65535
P11.26 captures the value of P3.46 Digital Input Status at the instant of last drive fault. If another
fault occurs, the previous record will be overwritten.
Page 4–210
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr Dec Addr
Read 0B16 42839
Default
0
Type Hex Addr Dec Addr
Read 0B17 42840
Default
0
Type Hex Addr Dec Addr
Read 0B18 42841
Default
0
Type Hex Addr Dec Addr
Read 0B19 42842
Default
0
Type Hex Addr Dec Addr
Read 0B1A 42843
Default
0
