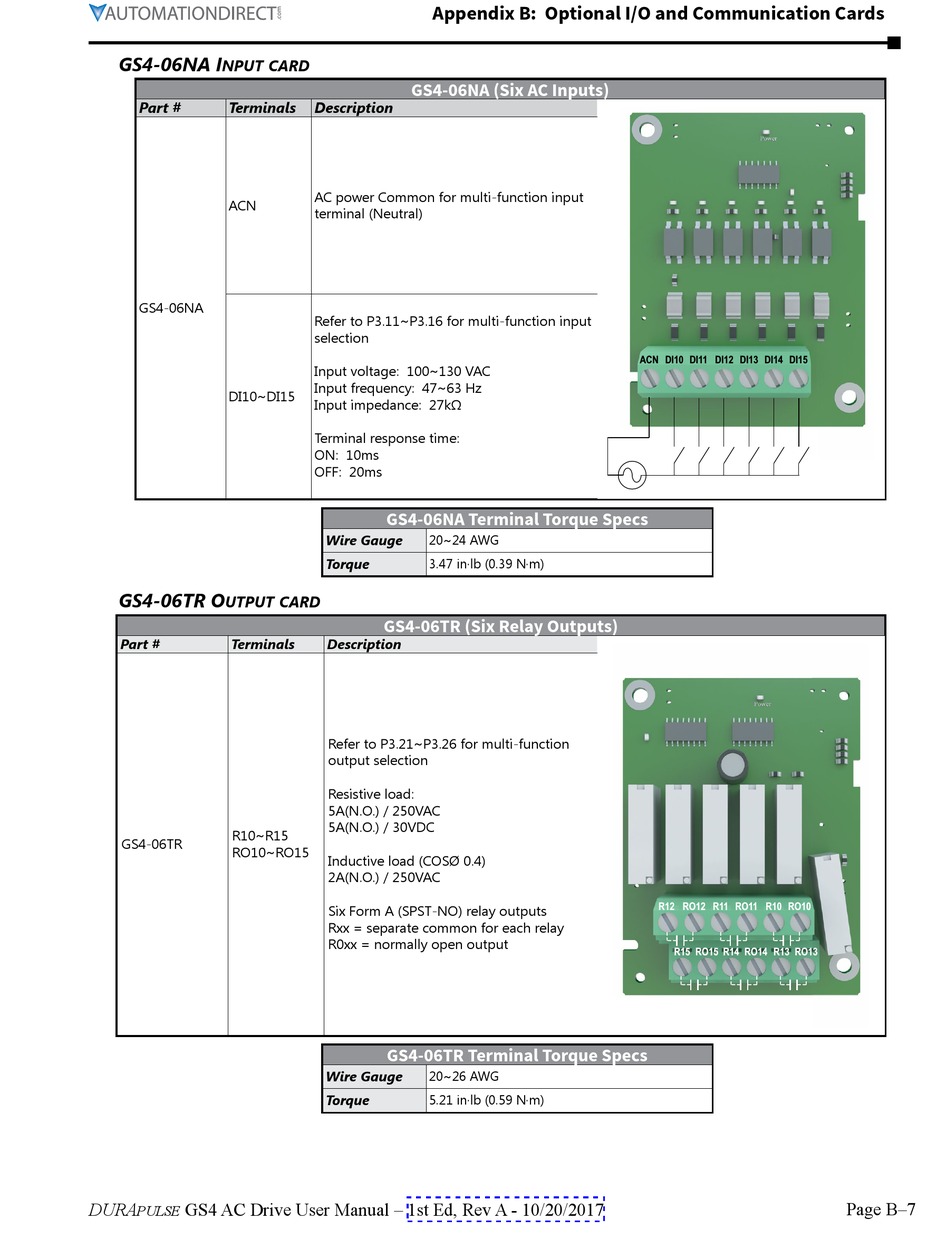

gs4-06na i
npuT Card
Part # Terminals
ACN
GS4-06NA
DI10~DI15
gs4-06Tr o
uTpuT Card
Part # Terminals
R10~R15
GS4-06TR
RO10~RO15
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Appendix B: Optional I/O and Communication Cards
GS4-06NA (Six AC Inputs)
Description
AC power Common for multi-function input
terminal (Neutral)
Refer to P3�11~P3�16 for multi-function input
selection
Input voltage: 100~130 VAC
Input frequency: 47~63 Hz
Input impedance: 27kΩ
Terminal response time:
ON: 10ms
OFF: 20ms
GS4-06NA Terminal Torque Specs
Wire Gauge
20~24 AWG
Torque 3�47 in·lb (0�39 N·m)
GS4-06TR (Six Relay Outputs)
Description
Refer to P3�21~P3�26 for multi-function
output selection
Resistive load:
5A(N�O�) / 250VAC
5A(N�O�) / 30VDC
Inductive load (COSØ 0�4)
2A(N�O�) / 250VAC
Six Form A (SPST-NO) relay outputs
Rxx = separate common for each relay
R0xx = normally open output
GS4-06TR Terminal Torque Specs
Wire Gauge
20~26 AWG
Torque
5�21 in·lb (0�59 N·m)
ACN DI10 DI11 DI12 DI13 DI14 DI15
R12 RO12 R11 RO11 R10 RO10
R15 RO15 R14 RO14 R13 RO13
Page B–7
