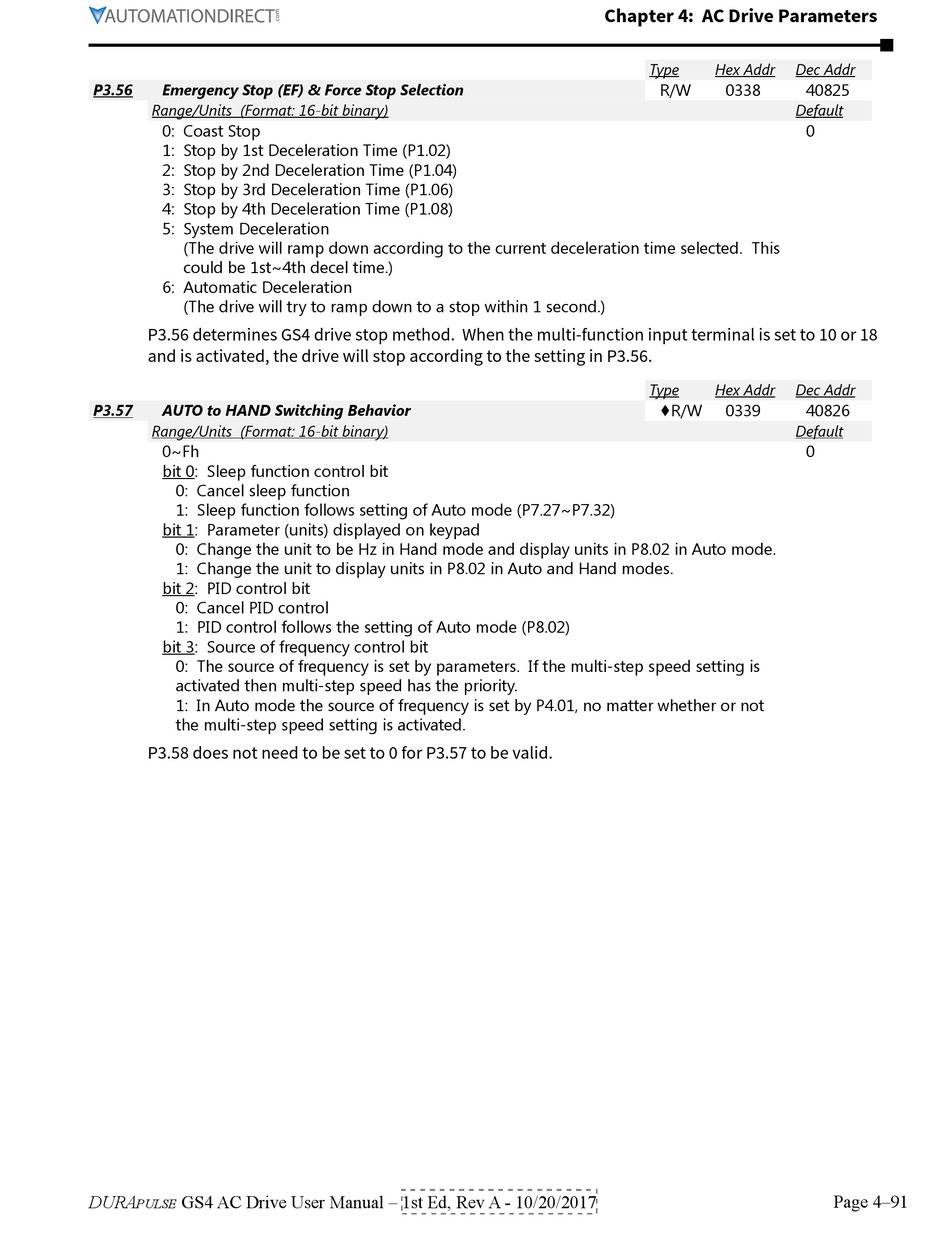

Automation Direct DURApulse GS4 User Manual page 185

P3.56 Emergency Stop (EF) & Force Stop Selection
Range/Units (Format: 16-bit binary)
0: Coast Stop
1: Stop by 1st Deceleration Time (P1�02)
2: Stop by 2nd Deceleration Time (P1�04)
3: Stop by 3rd Deceleration Time (P1�06)
4: Stop by 4th Deceleration Time (P1�08)
5: System Deceleration
(The drive will ramp down according to the current deceleration time selected� This
could be 1st~4th decel time�)
6: Automatic Deceleration
(The drive will try to ramp down to a stop within 1 second�)
P3.56 determines GS4 drive stop method. When the multi-function input terminal is set to 10 or 18
and is activated, the drive will stop according to the setting in P3.56.
P3.57 AUTO to HAND Switching Behavior
Range/Units (Format: 16-bit binary)
0~Fh
bi t 0: Sleep function control bit
0: Cancel sleep function
1: Sleep function follows setting of Auto mode (P7�27~P7�32)
bi t 1: Parameter (units) displayed on keypad
0: Change the unit to be Hz in Hand mode and display units in P8�02 in Auto mode�
1: Change the unit to display units in P8�02 in Auto and Hand modes�
bi t 2: PID control bit
0: Cancel PID control
1: PID control follows the setting of Auto mode (P8�02)
bi t 3: Source of frequency control bit
0: The source of frequency is set by parameters� If the multi-step speed setting is
activated then multi-step speed has the priority�
1: In Auto mode the source of frequency is set by P4�01, no matter whether or not
the multi-step speed setting is activated�
P3.58 does not need to be set to 0 for P3.57 to be valid.
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Chapter 4: AC Drive Parameters
Type Hex Addr
R/W 0338
Type Hex Addr
♦R/W 0339
Dec Addr
40825
Default
0
Dec Addr
40826
Default
0
Page 4–91
