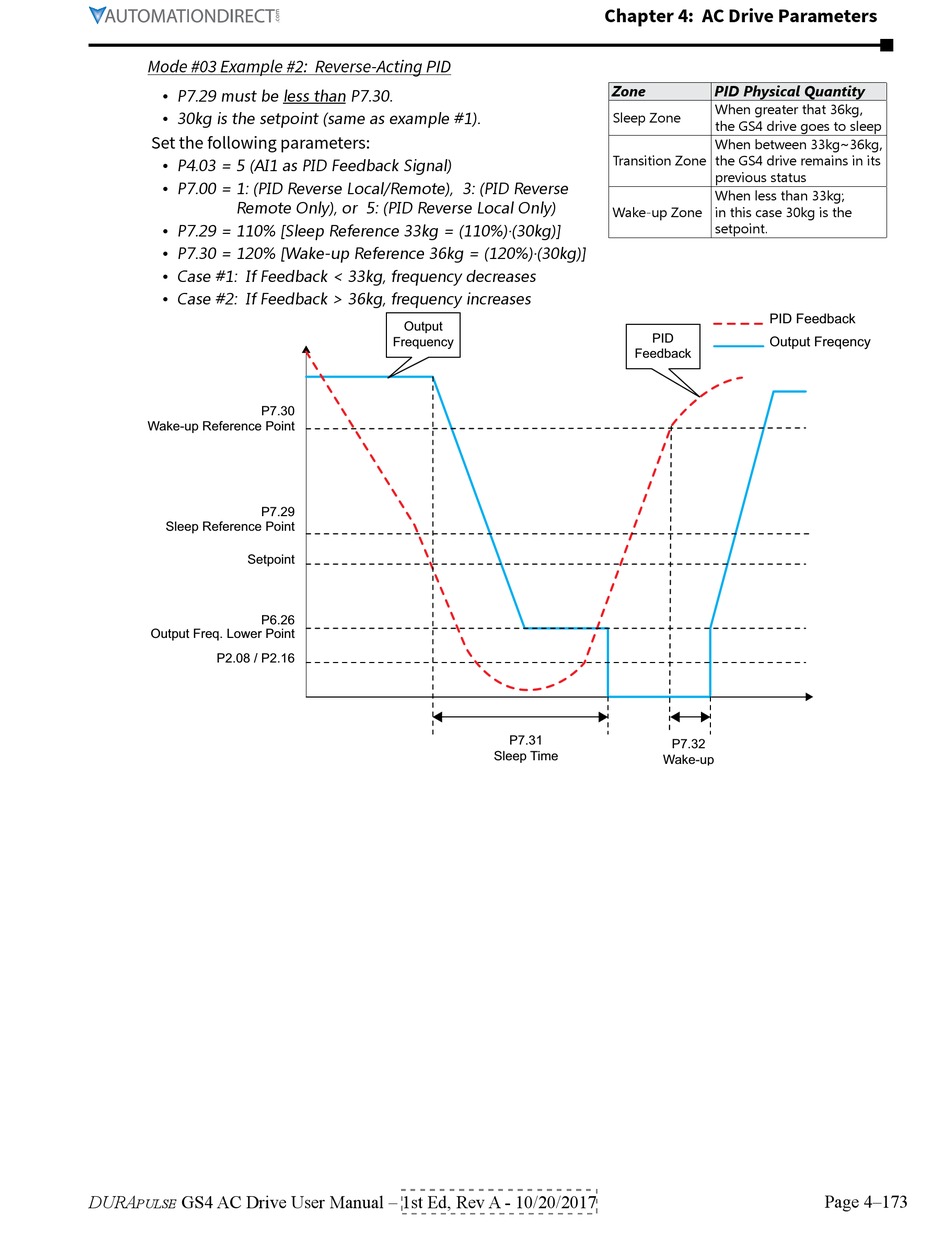

Mode #03 Example #2: Reverse-Acting PID
• P7�29 must be less than P7�30�
• 30kg is the setpoint (same as example #1)�
Set the following parameters:
• P4�03 = 5 (AI1 as PID Feedback Signal)
• P7�00 = 1: (PID Reverse Local/Remote), 3: (PID Reverse
Remote Only), or 5: (PID Reverse Local Only)
• P7�29 = 110% [Sleep Reference 33kg = (110%)·(30kg)]
• P7�30 = 120% [Wake-up Reference 36kg = (120%)·(30kg)]
• Case #1: If Feedback < 33kg, frequency decreases
• Case #2: If Feedback > 36kg, frequency increases
P7.30
Wake-up Reference Point
P7.29
Sleep Reference Point
Setpoint
P6.26
Output Freq. Lower Point
P2.08 / P2.16
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Output
Frequency
P7.31
Sleep Time
Chapter 4: AC Drive Parameters
Zone PID Physical Quantity
When greater that 36kg,
Sleep Zone
the GS4 drive goes to sleep
When between 33kg~36kg,
Transition Zone the GS4 drive remains in its
previous status
When less than 33kg;
Wake-up Zone in this case 30kg is the
setpoint�
PID Feedback
PID
Output Freqency
Feedback
P7.32
Wake-up
Delay Time
