Appendix A: Accessories

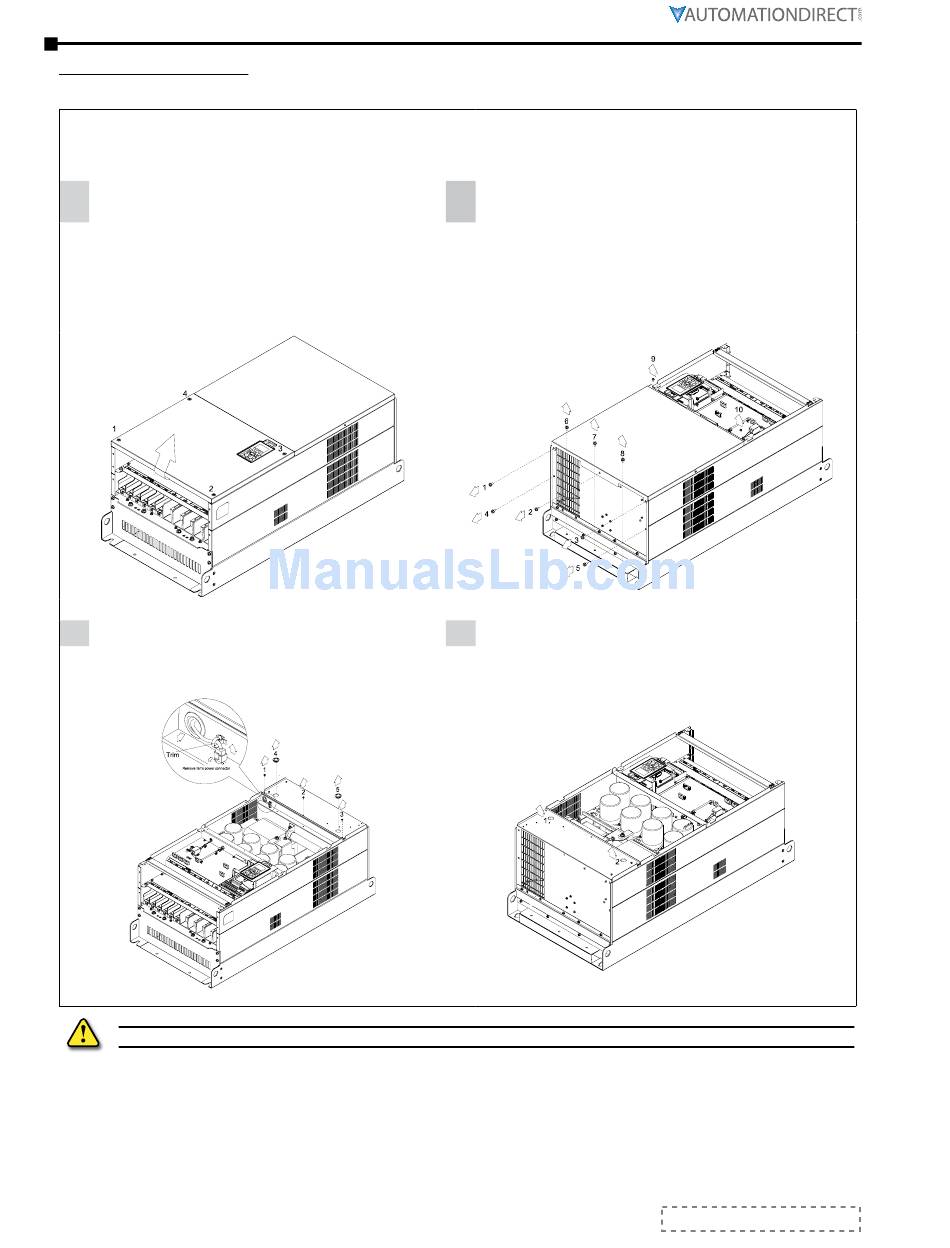

Fan Removal (continued)
f g
rame
Applicable models:
GS4-4250, GS4-4300
Loosen the screw and remove the cover.
1
Screw torque: 12 - 15 kg·cm (10.4 - 13 Ib·in)
3 Loosen screw 1 - 3 , remove bushing 4 and 5,
and disconnect the fan power.
Screw torque: 14 -16 kg·cm (12.2 - 13.9 lb·in).
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
Page A–54
For 1-8 shown in the figure: Loosen the screws
2
Screw torque: 35 - 40 kg·cm (30.4 - 34.7 lb·in)
For 9-10 shown in the figure: Loosen the screws
and remove the cover.
Screw torque: 14 - 16 kg·cm (12.2 - 13.9 Ib·in)
4 Pull out the fan.
