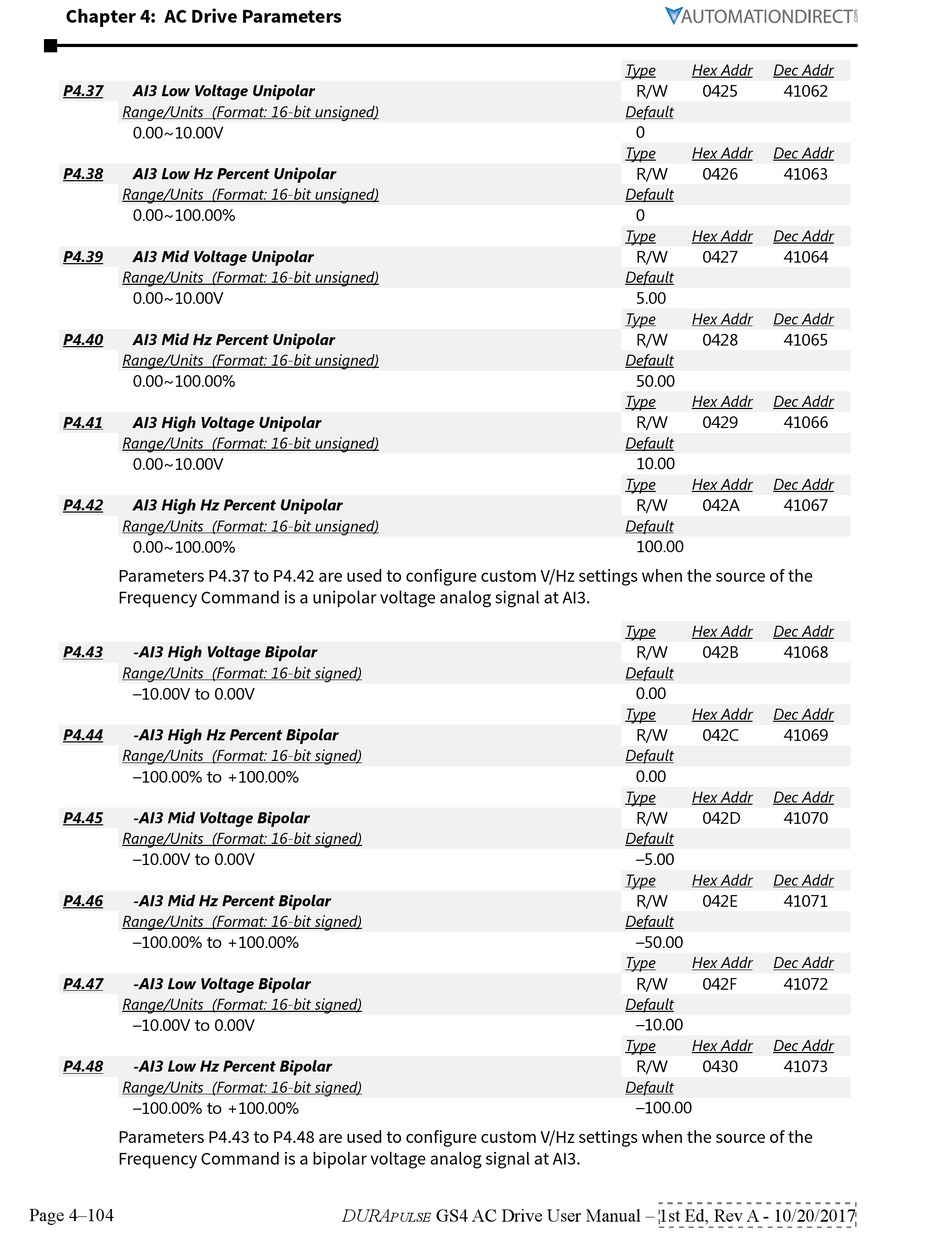

Automation Direct DURApulse GS4 User Manual page 198

Chapter 4: AC Drive Parameters
P4.37 AI3 Low Voltage Unipolar
Range/Units (Format: 16-bit unsigned)
0�00~10�00V
P4.38 AI3 Low Hz Percent Unipolar
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
P4.39 AI3 Mid Voltage Unipolar
Range/Units (Format: 16-bit unsigned)
0�00~10�00V
P4.40 AI3 Mid Hz Percent Unipolar
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
P4.41 AI3 High Voltage Unipolar
Range/Units (Format: 16-bit unsigned)
0�00~10�00V
P4.42 AI3 High Hz Percent Unipolar
Range/Units (Format: 16-bit unsigned)
0�00~100�00%
Parameters P4.37 to P4.42 are used to configure custom V/Hz settings when the source of the
Frequency Command is a unipolar voltage analog signal at AI3.
P4.43 -AI3 High Voltage Bipolar
Range/Units (Format: 16-bit signed)
–10�00V to 0�00V
P4.44 -AI3 High Hz Percent Bipolar
Range/Units (Format: 16-bit signed)
–100�00% to +100�00%
P4.45 -AI3 Mid Voltage Bipolar
Range/Units (Format: 16-bit signed)
–10�00V to 0�00V
P4.46 -AI3 Mid Hz Percent Bipolar
Range/Units (Format: 16-bit signed)
–100�00% to +100�00%
P4.47 -AI3 Low Voltage Bipolar
Range/Units (Format: 16-bit signed)
–10�00V to 0�00V
P4.48 -AI3 Low Hz Percent Bipolar
Range/Units (Format: 16-bit signed)
–100�00% to +100�00%
Parameters P4.43 to P4.48 are used to configure custom V/Hz settings when the source of the
Frequency Command is a bipolar voltage analog signal at AI3.
Page 4–104
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr Dec Addr
R/W 0425 41062
Default
0
Type Hex Addr Dec Addr
R/W 0426 41063
Default
0
Type Hex Addr Dec Addr
R/W 0427 41064
Default
5�00
Type Hex Addr Dec Addr
R/W 0428 41065
Default
50�00
Type Hex Addr Dec Addr
R/W 0429 41066
Default
10�00
Type Hex Addr Dec Addr
R/W 042A 41067
Default
100�00
Type Hex Addr Dec Addr
R/W 042B 41068
Default
0�00
Type Hex Addr Dec Addr
R/W 042C 41069
Default
0�00
Type Hex Addr Dec Addr
R/W 042D 41070
Default
–5�00
Type Hex Addr Dec Addr
R/W 042E 41071
Default
–50�00
Type Hex Addr Dec Addr
R/W 042F 41072
Default
–10�00
Type Hex Addr Dec Addr
R/W 0430 41073
Default
–100�00
