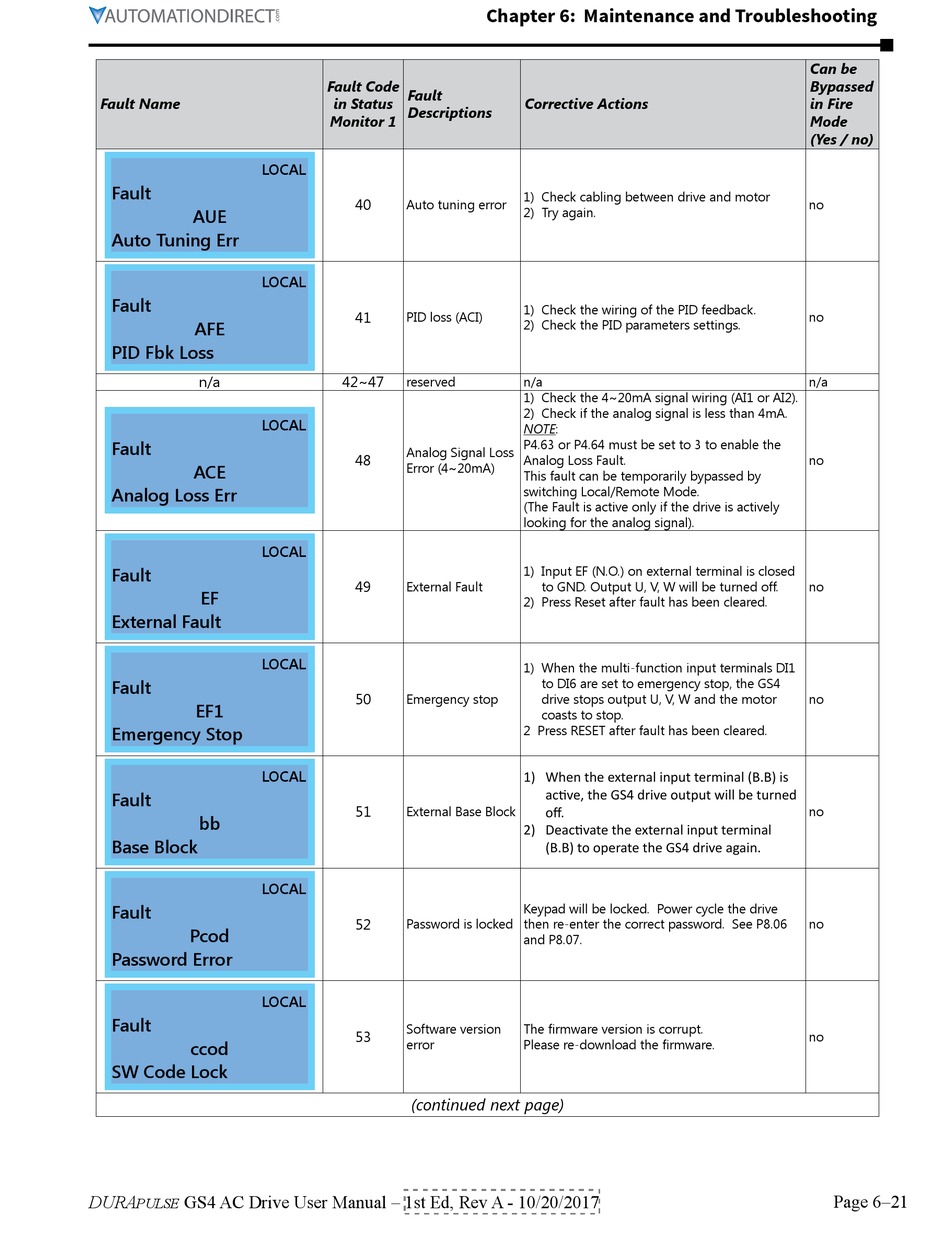

Automation Direct DURApulse GS4 User Manual page 353

Fault Name
LOCAL
Fault
AUE
Auto Tuning Err
LOCAL
Fault
AFE
PID Fbk Loss
n/a
LOCAL
Fault
ACE
Analog Loss Err
LOCAL
Fault
EF
External Fault
LOCAL
Fault
EF1
Emergency Stop
LOCAL
Fault
bb
Base Block
LOCAL
Fault
Pcod
Password Error
LOCAL
Fault
ccod
SW Code Lock
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Chapter 6: Maintenance and Troubleshooting
Fault Code
Fault
in Status
Descriptions
Monitor 1
40
Auto tuning error
41
PID loss (ACI)
42~47
reserved
Analog Signal Loss
48
Error (4~20mA)
49
External Fault
50
Emergency stop
51
External Base Block
52
Password is locked
Software version
53
error
(continued next page)
Corrective Actions
1) Check cabling between drive and motor
2) Try again�
1) Check the wiring of the PID feedback�
2) Check the PID parameters settings�
n/a
1) Check the 4~20mA signal wiring (AI1 or AI2)�
2) Check if the analog signal is less than 4mA�
NOTE:
P4�63 or P4�64 must be set to 3 to enable the
Analog Loss Fault�
This fault can be temporarily bypassed by
switching Local/Remote Mode�
(The Fault is active only if the drive is actively
looking for the analog signal)�
1) Input EF (N�O�) on external terminal is closed
to GND� Output U, V, W will be turned off�
2) Press Reset after fault has been cleared�
1) When the multi-function input terminals DI1
to DI6 are set to emergency stop, the GS4
drive stops output U, V, W and the motor
coasts to stop�
2 Press RESET after fault has been cleared�
1) When the external input terminal (B.B) is
active, the GS4 drive output will be turned
off.
2) Deactivate the external input terminal
(B.B) to operate the GS4 drive again.
Keypad will be locked� Power cycle the drive
then re-enter the correct password� See P8�06
and P8�07�
The firmware version is corrupt�
Please re-download the firmware�
Can be
Bypassed
in Fire
Mode
(Yes / no)
no
no
n/a
no
no
no
no
no
no
Page 6–21
