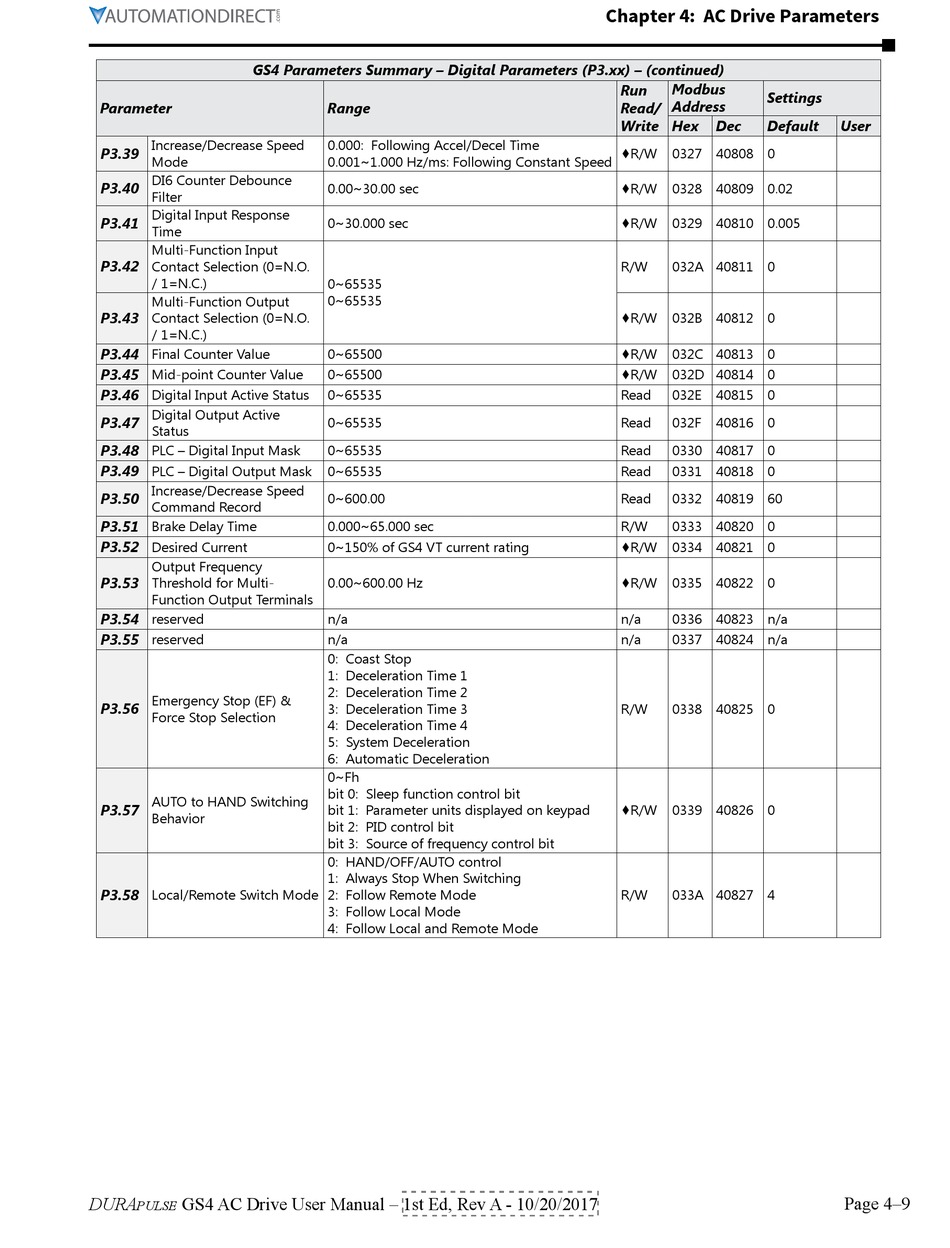

GS4 Parameters Summary – Digital Parameters (P3.xx) – (continued)
Parameter
Increase/Decrease Speed
P3.39
Mode
DI6 Counter Debounce
P3.40
Filter
Digital Input Response
P3.41
Time
Multi-Function Input
P3.42
Contact Selection (0=N�O�
/ 1=N�C�)
Multi-Function Output
P3.43
Contact Selection (0=N�O�
/ 1=N�C�)
P3.44
Final Counter Value
P3.45
Mid-point Counter Value
P3.46
Digital Input Active Status
Digital Output Active
P3.47
Status
P3.48
PLC – Digital Input Mask
P3.49
PLC – Digital Output Mask
Increase/Decrease Speed
P3.50
Command Record
P3.51
Brake Delay Time
P3.52
Desired Current
Output Frequency
P3.53 Threshold for Multi-
Function Output Terminals
P3.54
reserved
P3.55
reserved
Emergency Stop (EF) &
P3.56
Force Stop Selection
AUTO to HAND Switching
P3.57
Behavior
P3.58
Local/Remote Switch Mode
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Range
0�000: Following Accel/Decel Time
0�001~1�000 Hz/ms: Following Constant Speed
0�00~30�00 sec
0~30�000 sec
0~65535
0~65535
0~65500
0~65500
0~65535
0~65535
0~65535
0~65535
0~600�00
0�000~65�000 sec
0~150% of GS4 VT current rating
0�00~600�00 Hz
n/a
n/a
0: Coast Stop
1: Deceleration Time 1
2: Deceleration Time 2
3: Deceleration Time 3
4: Deceleration Time 4
5: System Deceleration
6: Automatic Deceleration
0~Fh
bit 0: Sleep function control bit
bit 1: Parameter units displayed on keypad
bit 2: PID control bit
bit 3: Source of frequency control bit
0: HAND/OFF/AUTO control
1: Always Stop When Switching
2: Follow Remote Mode
3: Follow Local Mode
4: Follow Local and Remote Mode
Chapter 4: AC Drive Parameters
Modbus
Run
Settings
Address
Read/
Write Hex Dec Default
♦R/W 0327 40808 0
♦R/W 0328 40809 0�02
♦R/W 0329 40810 0�005
R/W 032A 40811 0
♦R/W 032B 40812 0
♦R/W 032C 40813 0
♦R/W 032D 40814 0
Read 032E 40815 0
Read 032F 40816 0
Read 0330 40817 0
Read 0331 40818 0
Read 0332 40819 60
R/W 0333 40820 0
♦R/W 0334 40821 0
♦R/W 0335 40822 0
n/a 0336 40823 n/a
n/a 0337 40824 n/a
R/W 0338 40825 0
♦R/W 0339 40826 0
R/W 033A 40827 4
