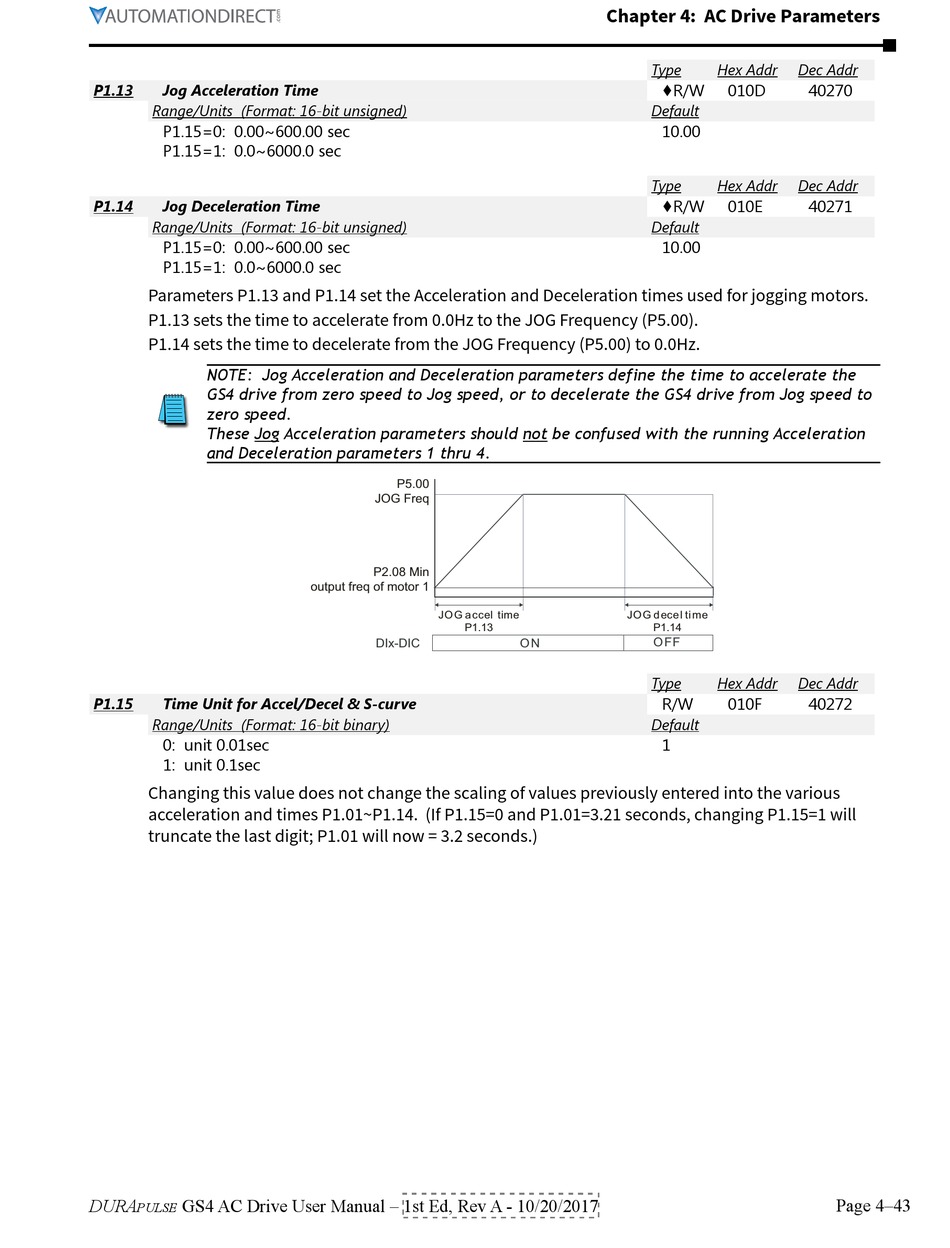

Automation Direct DURApulse GS4 User Manual page 137

P1.13 Jog Acceleration Time
Range/Units (Format: 16-bit unsigned)
P1�15=0: 0�00~600�00 sec
P1�15=1: 0�0~6000�0 sec
P1.14 Jog Deceleration Time
Range/Units (Format: 16-bit unsigned)
P1�15=0: 0�00~600�00 sec
P1�15=1: 0�0~6000�0 sec
Parameters P1.13 and P1.14 set the Acceleration and Deceleration times used for jogging motors.
P1.13 sets the time to accelerate from 0.0Hz to the JOG Frequency (P5.00).
P1.14 sets the time to decelerate from the JOG Frequency (P5.00) to 0.0Hz.
NOTE: Jog Acceleration and Deceleration parameters define the time to accelerate the
GS4 drive from zero speed to Jog speed, or to decelerate the GS4 drive from Jog speed to
zero speed.
These Jog Acceleration parameters should not be confused with the running Acceleration
and Deceleration parameters 1 thru 4.
P1.15 Time Unit for Accel/Decel & S-curve
Range/Units (Format: 16-bit binary)
0: unit 0�01sec
1: unit 0�1sec
Changing this value does not change the scaling of values previously entered into the various
acceleration and times P1.01~P1.14. (If P1.15=0 and P1.01=3.21 seconds, changing P1.15=1 will
truncate the last digit; P1.01 will now = 3.2 seconds.)
