Automation Direct DURApulse GS4 User Manual page 106

Chapter 4: AC Drive Parameters
Parameter
P4.35
AI2 High V/A
P4.36
AI2 High Hz Percent
P4.37
AI3 Low Voltage Unipolar
P4.38
AI3 Low Hz Percent Unipolar
P4.39 AI3 Mid Voltage Unipolar
P4.40
AI3 Mid Hz Percent Unipolar
P4.41
AI3 High Voltage Unipolar
P4.42
AI3 High Hz Percent Unipolar
P4.43
-AI3 High Voltage Bipolar
P4.44
-AI3 High Hz Percent Bipolar
P4.45
-AI3 Mid Voltage Bipolar
P4.46
-AI3 Mid Hz Percent Bipolar
P4.47
-AI3 Low Voltage Bipolar
P4.48
-AI3 Low Hz Percent Bipolar
P4.49
reserved
P4.50
Analog Output 1 (AO1)
P4.51
AO1 Gain
P4.52 AO1 Negative Value Handle
P4.53
AO1 0~20mA/4~20mA Selection
P4.54
Analog Output 2 (AO2)
P4.55
AO2 Gain
Page 4–12

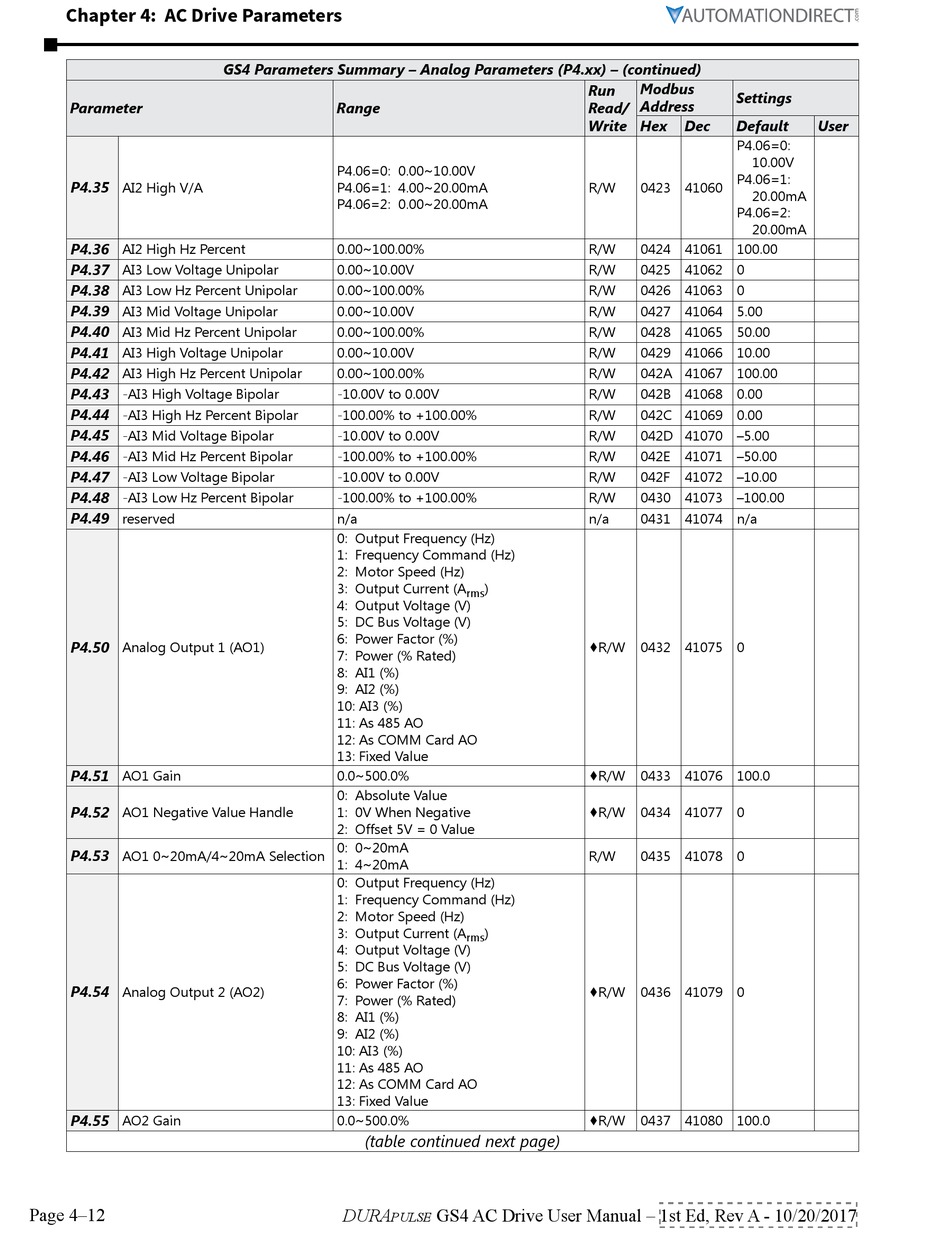

GS4 Parameters Summary – Analog Parameters (P4.xx) – (continued)
Range
P4�06=0: 0�00~10�00V
P4�06=1: 4�00~20�00mA
P4�06=2: 0�00~20�00mA
0�00~100�00%
0�00~10�00V
0�00~100�00%
0�00~10�00V
0�00~100�00%
0�00~10�00V
0�00~100�00%
-10�00V to 0�00V
-100�00% to +100�00%
-10�00V to 0�00V
-100�00% to +100�00%
-10�00V to 0�00V
-100�00% to +100�00%
n/a
0: Output Frequency (Hz)
1: Frequency Command (Hz)
2: Motor Speed (Hz)
3: Output Current (A
4: Output Voltage (V)
5: DC Bus Voltage (V)
6: Power Factor (%)
7: Power (% Rated)
8: AI1 (%)
9: AI2 (%)
10: AI3 (%)
11: As 485 AO
12: As COMM Card AO
13: Fixed Value
0�0~500�0%
0: Absolute Value
1: 0V When Negative
2: Offset 5V = 0 Value
0: 0~20mA
1: 4~20mA
0: Output Frequency (Hz)
1: Frequency Command (Hz)
2: Motor Speed (Hz)
3: Output Current (A
4: Output Voltage (V)
5: DC Bus Voltage (V)
6: Power Factor (%)
7: Power (% Rated)
8: AI1 (%)
9: AI2 (%)
10: AI3 (%)
11: As 485 AO
12: As COMM Card AO
13: Fixed Value
0�0~500�0%
(table continued next page)
DURA
pulse
Run
Read/
Write
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
n/a
)
rms
♦R/W
♦R/W
♦R/W
R/W
)
rms
♦R/W
♦R/W
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Modbus
Settings
Address
Hex Dec Default User
P4 �06=0:
10�00V
P4 �06=1:
0423 41060
20�00mA
P4 �06=2:
20�00mA
0424 41061 100�00
0425 41062 0
0426 41063 0
0427 41064 5�00
0428 41065 50�00
0429 41066 10�00
042A 41067 100�00
042B 41068 0�00
042C 41069 0�00
042D 41070 –5�00
042E 41071 –50�00
042F 41072 –10�00
0430 41073 –100�00
0431 41074 n/a
0432 41075 0
0433 41076 100�0
0434 41077 0
0435 41078 0
0436 41079 0
0437 41080 100�0
