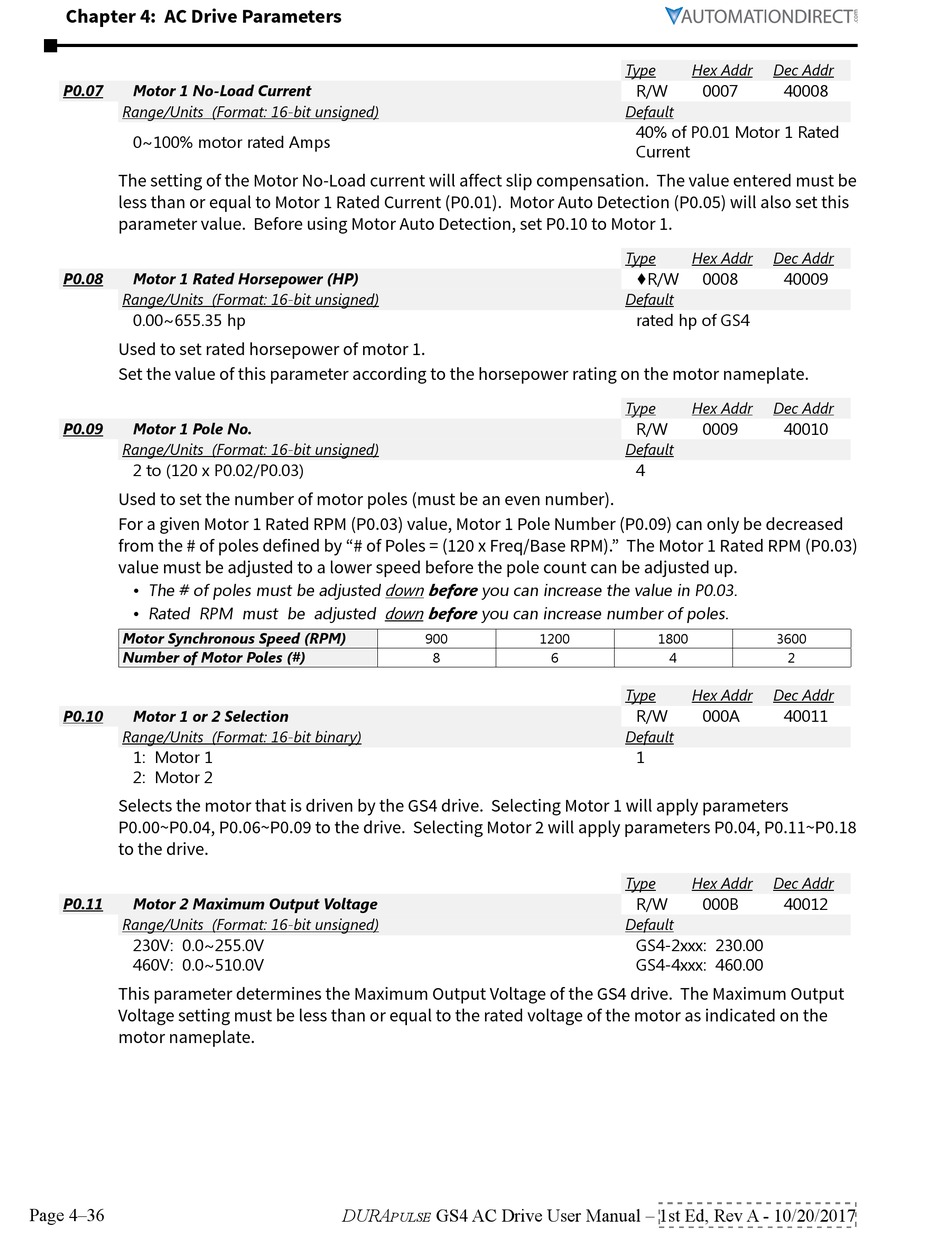

P0.07 Motor 1 No-Load Current
Range/Units (Format: 16-bit unsigned)
0~100% motor rated Amps
The setting of the Motor No-Load current will affect slip compensation. The value entered must be
less than or equal to Motor 1 Rated Current (P0.01). Motor Auto Detection (P0.05) will also set this
parameter value. Before using Motor Auto Detection, set P0.10 to Motor 1.
P0.08 Motor 1 Rated Horsepower (HP)
Range/Units (Format: 16-bit unsigned)
0�00~655�35 hp
Used to set rated horsepower of motor 1.
Set the value of this parameter according to the horsepower rating on the motor nameplate.
P0.09 Motor 1 Pole No.
Range/Units (Format: 16-bit unsigned)
2 to (120 x P0�02/P0�03)
Used to set the number of motor poles (must be an even number).
For a given Motor 1 Rated RPM (P0.03) value, Motor 1 Pole Number (P0.09) can only be decreased
from the # of poles defined by "# of Poles = (120 x Freq/Base RPM)." The Motor 1 Rated RPM (P0.03)
value must be adjusted to a lower speed before the pole count can be adjusted up.
• The # of poles must be adjusted down before you can increase the value in P0�03�
• Rated RPM must be adjusted down before you can increase number of poles�
Motor Synchronous Speed (RPM)
Number of Motor Poles (#)
P0.10 Motor 1 or 2 Selection
Range/Units (Format: 16-bit binary)
1: Motor 1
2: Motor 2
Selects the motor that is driven by the GS4 drive. Selecting Motor 1 will apply parameters
P0.00~P0.04, P0.06~P0.09 to the drive. Selecting Motor 2 will apply parameters P0.04, P0.11~P0.18
to the drive.
P0.11 Motor 2 Maximum Output Voltage
Range/Units (Format: 16-bit unsigned)
230V: 0�0~255�0V
460V: 0�0~510�0V
This parameter determines the Maximum Output Voltage of the GS4 drive. The Maximum Output
Voltage setting must be less than or equal to the rated voltage of the motor as indicated on the
motor nameplate.
