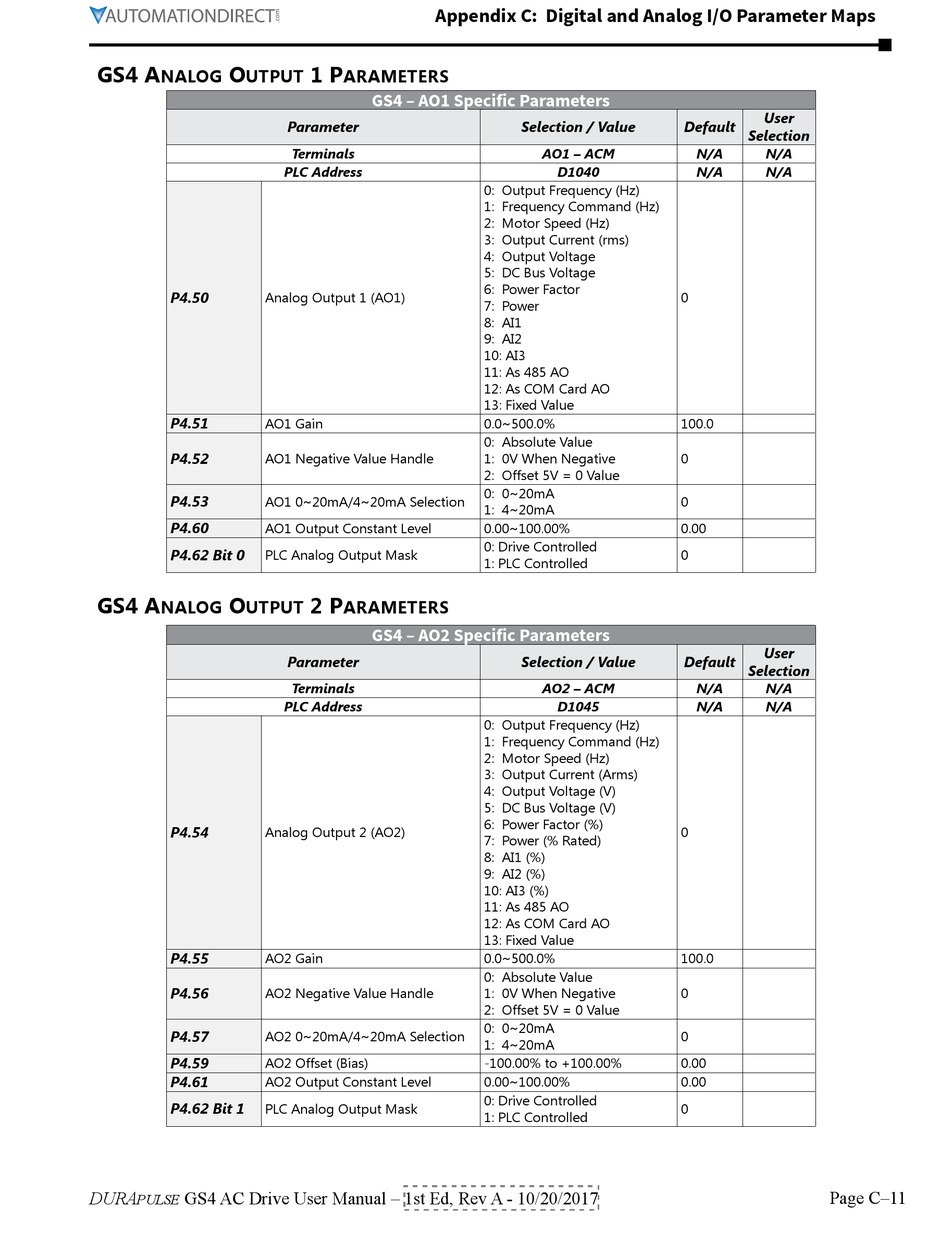

Gs4 Analog Output 1 Parameters; Gs4 Analog Output 2 Parameters - Automation Direct DURApulse GS4 User Manual

gs4 a O
nalOg UtPUt
P4.50
Analog Output 1 (AO1)
P4.51
AO1 Gain
P4.52
AO1 Negative Value Handle
P4.53 AO1 0~20mA/4~20mA Selection
P4.60
AO1 Output Constant Level
P4.62 Bit 0
PLC Analog Output Mask
gs4 a O
nalOg UtPUt
P4.54 Analog Output 2 (AO2)
P4.55
AO2 Gain
P4.56 AO2 Negative Value Handle
P4.57
AO2 0~20mA/4~20mA Selection
P4.59
AO2 Offset (Bias)
P4.61
AO2 Output Constant Level
P4.62 Bit 1
PLC Analog Output Mask
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Appendix C: Digital and Analog I/O Parameter Maps
1 P
araMeters
GS4 – AO1 Specific Parameters
Parameter
Terminals
PLC Address
2 P
araMeters
GS4 – AO2 Specific Parameters
Parameter
Terminals
PLC Address
Selection / Value
AO1 – ACM
D1040
0: Output Frequency (Hz)
1: Frequency Command (Hz)
2: Motor Speed (Hz)
3: Output Current (rms)
4: Output Voltage
5: DC Bus Voltage
6: Power Factor
7: Power
8: AI1
9: AI2
10: AI3
11: As 485 AO
12: As COM Card AO
13: Fixed Value
0�0~500�0%
0: Absolute Value
1: 0V When Negative
2: Offset 5V = 0 Value
0: 0~20mA
1: 4~20mA
0�00~100�00%
0: Drive Controlled
1: PLC Controlled
Selection / Value
AO2 – ACM
D1045
0: Output Frequency (Hz)
1: Frequency Command (Hz)
2: Motor Speed (Hz)
3: Output Current (Arms)
4: Output Voltage (V)
5: DC Bus Voltage (V)
6: Power Factor (%)
7: Power (% Rated)
8: AI1 (%)
9: AI2 (%)
10: AI3 (%)
11: As 485 AO
12: As COM Card AO
13: Fixed Value
0�0~500�0%
0: Absolute Value
1: 0V When Negative
2: Offset 5V = 0 Value
0: 0~20mA
1: 4~20mA
-100�00% to +100�00%
0�00~100�00%
0: Drive Controlled
1: PLC Controlled
User
Default
Selection
N/A N/A
N/A N/A
0
100�0
0
0
0�00
0
User
Default
Selection
N/A N/A
N/A N/A
0
100�0
0
0
0�00
0�00
0
