m aC d
ulTiple rives

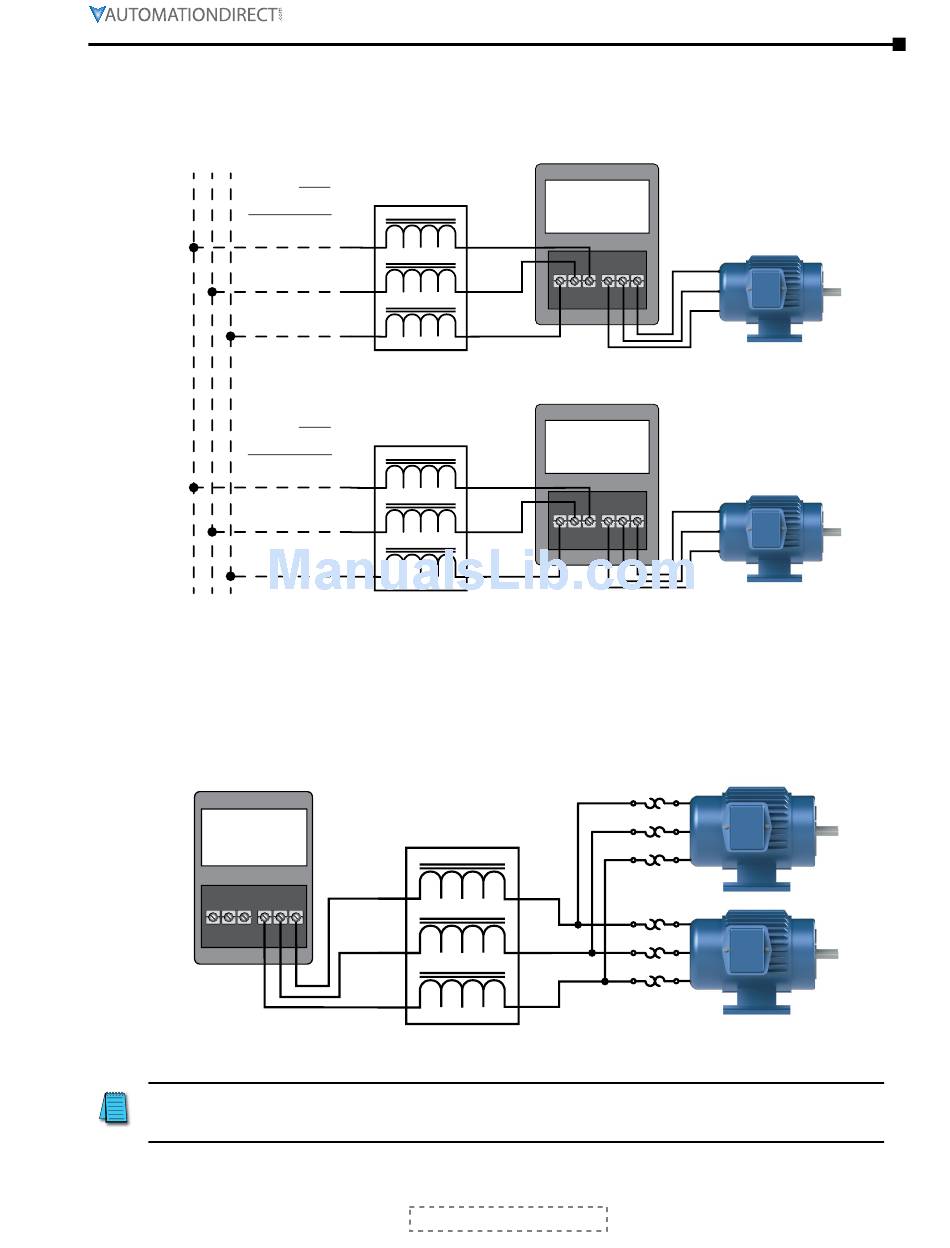

Individual line reactors are recommended when installing multiple GS4 drives on the same power
line. Individual line reactors eliminate cross-talk between multiple GS4 drives and provide
isolated protection for each GS4 drive for its own specific load.
Incoming power
and external
circuit protection
provided by
customer
Incoming power
and external
circuit protection
provided by
customer
Please refer to "Chapter 2: Installation and Wiring" for detailed wiring information for the GS4 drive.
m m
ulTiple oTors
A single output (load) reactor can be used with multiple motors on the same GS4 drive, but only
if the motors operate simultaneously. Size the reactor based upon the total horsepower of all
the motors, and select a reactor with a current rating greater than the sum of the motor full-load
currents. Overload relays are required for use in multi-motor applications.
GS4 Drive
Please refer to "Chapter 2: Installation and Wiring" for detailed wiring information for the GS4 drive.
A single reactor should be used with multiple motors ONLY when the motors will operate
simultaneously from a single AC drive. OVERLOAD RELAYS are required for use in multiple motor
applications.
