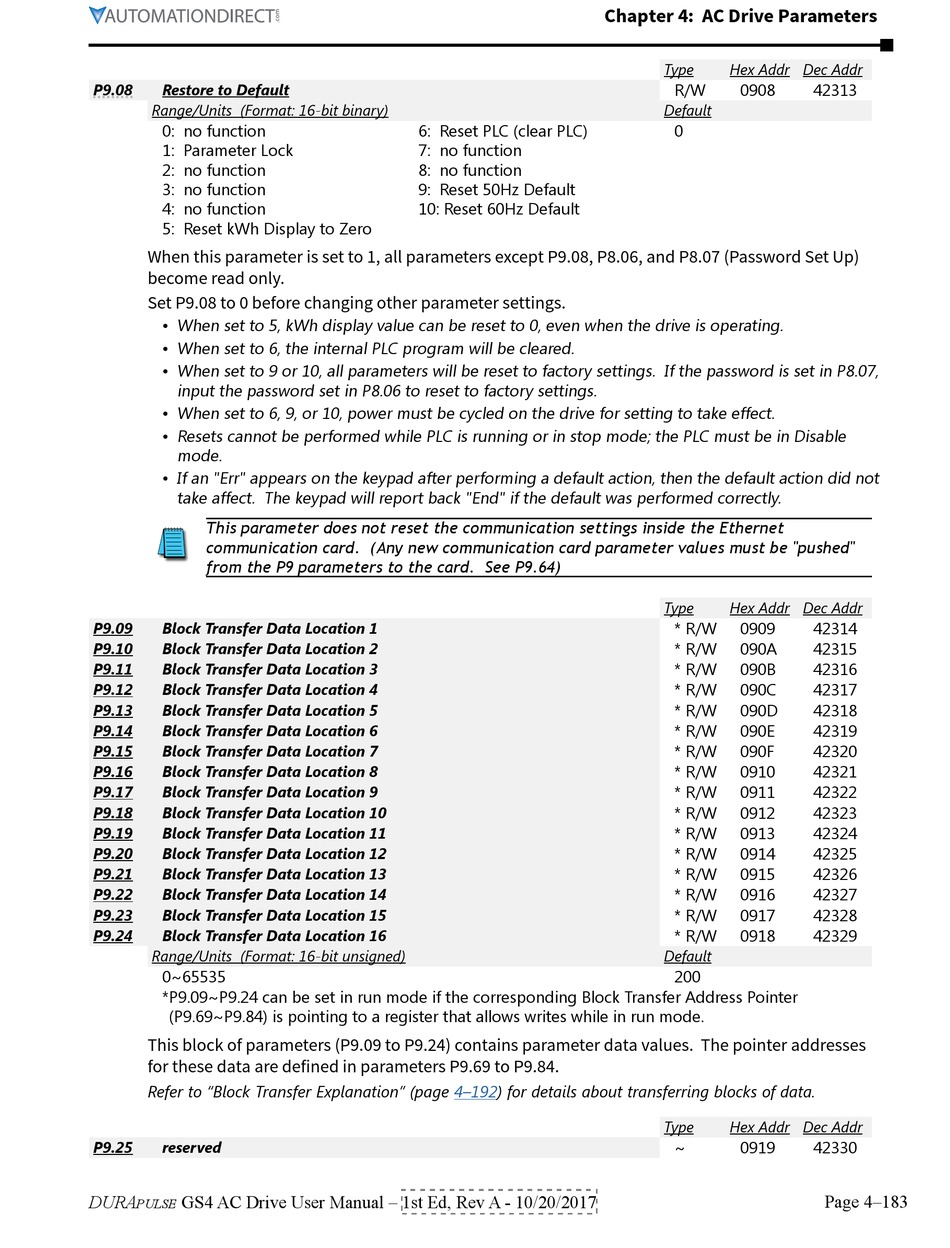

Automation Direct DURApulse GS4 User Manual page 277

P9.08 Restore to Default
Range/Units (Format: 16-bit binary)
0: no function
1: Parameter Lock
2: no function
3: no function
4: no function
5: Reset kWh Display to Zero
When this parameter is set to 1, all parameters except P9.08, P8.06, and P8.07 (Password Set Up)
become read only.
Set P9.08 to 0 before changing other parameter settings.
• When set to 5, kWh display value can be reset to 0, even when the drive is operating�
• When set to 6, the internal PLC program will be cleared�
• When set to 9 or 10, all parameters will be reset to factory settings� If the password is set in P8�07,
input the password set in P8�06 to reset to factory settings�
• When set to 6, 9, or 10, power must be cycled on the drive for setting to take effect�
• Resets cannot be performed while PLC is running or in stop mode; the PLC must be in Disable
mode�
• If an "Err" appears on the keypad after performing a default action, then the default action did not
take affect� The keypad will report back "End" if the default was performed correctly�
This parameter does not reset the communication settings inside the Ethernet
communication card. (Any new communication card parameter values must be "pushed"
from the P9 parameters to the card. See P9.64)
P9.09 Block Transfer Data Location 1
P9.10 Block Transfer Data Location 2
P9.11 Block Transfer Data Location 3
P9.12 Block Transfer Data Location 4
P9.13 Block Transfer Data Location 5
P9.14 Block Transfer Data Location 6
P9.15 Block Transfer Data Location 7
P9.16 Block Transfer Data Location 8
P9.17 Block Transfer Data Location 9
P9.18 Block Transfer Data Location 10
P9.19 Block Transfer Data Location 11
P9.20 Block Transfer Data Location 12
P9.21 Block Transfer Data Location 13
P9.22 Block Transfer Data Location 14
P9.23 Block Transfer Data Location 15
P9.24 Block Transfer Data Location 16
Range/Units (Format: 16-bit unsigned)
0~65535
* P9�09~P9�24 can be set in run mode if the corresponding Block Transfer Address Pointer
(P9�69~P9�84) is pointing to a register that allows writes while in run mode�
This block of parameters (P9.09 to P9.24) contains parameter data values. The pointer addresses
for these data are defined in parameters P9.69 to P9.84.
Refer to "Block Transfer Explanation" (page 4–192) for details about transferring blocks of data.
P9.25 reserved
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
6: Reset PLC (clear PLC)
7: no function
8: no function
9: Reset 50Hz Default
10: Reset 60Hz Default
Chapter 4: AC Drive Parameters
Type Hex Addr Dec Addr
R/W 0908
Default
0
Type Hex Addr Dec Addr
* R/W 0909
* R/W 090A
* R/W 090B
* R/W 090C
* R/W 090D
* R/W 090E
* R/W 090F
* R/W 0910
* R/W 0911
* R/W 0912
* R/W 0913
* R/W 0914
* R/W 0915
* R/W 0916
* R/W 0917
* R/W 0918
Default
200
Type Hex Addr Dec Addr
~ 0919
42313
42314
42315
42316
42317
42318
42319
42320
42321
42322
42323
42324
42325
42326
42327
42328
42329
42330
Page 4–183
