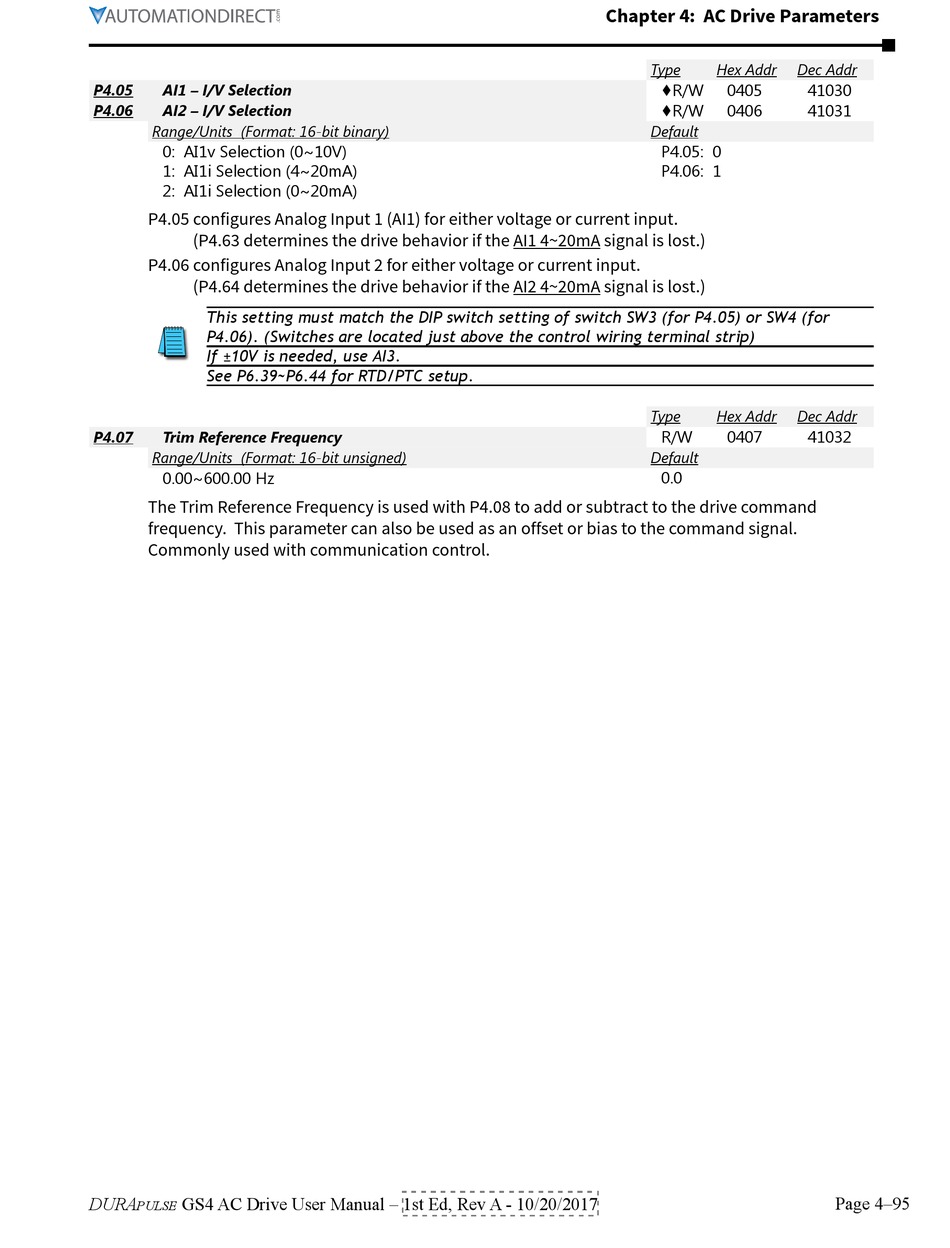

Automation Direct DURApulse GS4 User Manual page 189

P4.05 AI1 – I/V Selection
P4.06 AI2 – I/V Selection
Range/Units (Format: 16-bit binary)
0: AI1v Selection (0~10V)
1: AI1i Selection (4~20mA)
2: AI1i Selection (0~20mA)
P4.05 configures Analog Input 1 (AI1) for either voltage or current input.
(P4.63 determines the drive behavior if the AI1 4~20mA signal is lost.)
P4.06 configures Analog Input 2 for either voltage or current input.
(P4.64 determines the drive behavior if the AI2 4~20mA signal is lost.)
This setting must match the DIP switch setting of switch SW3 (for P4.05) or SW4 (for
P4.06). (Switches are located just above the control wiring terminal strip)
If ±10V is needed, use AI3.
See P6.39~P6.44 for RTD/PTC setup.
P4.07 Trim Reference Frequency
Range/Units (Format: 16-bit unsigned)
0�00~600�00 Hz
The Trim Reference Frequency is used with P4.08 to add or subtract to the drive command
frequency. This parameter can also be used as an offset or bias to the command signal.
Commonly used with communication control.
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Chapter 4: AC Drive Parameters
Type Hex Addr
♦R/W 0405
♦R/W 0406
Default
P4�05: 0
P4�06: 1
Type Hex Addr
R/W 0407
Default
0�0
Dec Addr
41030
41031
Dec Addr
41032
Page 4–95
