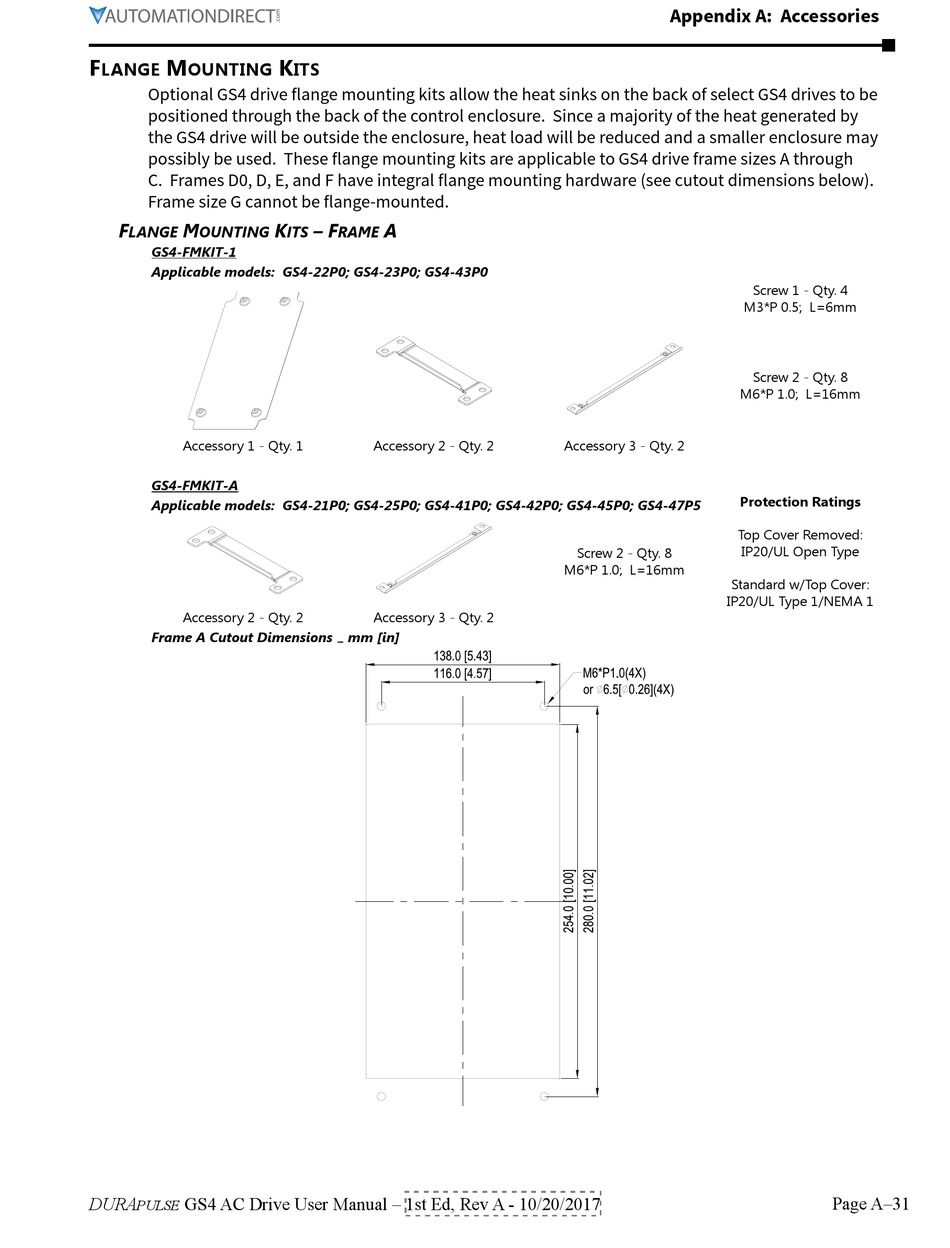

Flange Mounting Kits - Automation Direct DURApulse GS4 User Manual

f M
lange OUnting
Optional GS4 drive flange mounting kits allow the heat sinks on the back of select GS4 drives to be
positioned through the back of the control enclosure. Since a majority of the heat generated by
the GS4 drive will be outside the enclosure, heat load will be reduced and a smaller enclosure may
possibly be used. These flange mounting kits are applicable to GS4 drive frame sizes A through
C. Frames D0, D, E, and F have integral flange mounting hardware (see cutout dimensions below).
Frame size G cannot be flange-mounted.
f m
lange ounTing
GS4-FMKIT-1
Applicable models: GS4-22P0; GS4-23P0; GS4-43P0
Accessory 1 - Qty� 1
GS4-FMKIT-A
Applicable models: GS4-21P0; GS4-25P0; GS4-41P0; GS4-42P0; GS4-45P0; GS4-47P5
Accessory 2 - Qty� 2
Frame A Cutout Dimensions ̶ mm [in]
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
k
its
k – f a
iTs rame
Accessory 2 - Qty� 2
Accessory 3 - Qty� 2
Appendix A: Accessories
M6*P 1�0; L=16mm
Accessory 3 - Qty� 2
Protection Ratings
Top Cover Removed:
Screw 2 - Qty� 8
M6*P 1�0; L=16mm
Standard w/Top Cover:
IP20/UL Type 1/NEMA 1
Screw 1 - Qty� 4
M3*P 0�5; L=6mm
Screw 2 - Qty� 8
IP20/UL Open Type
Page A–31
