d f o
rive requenCy

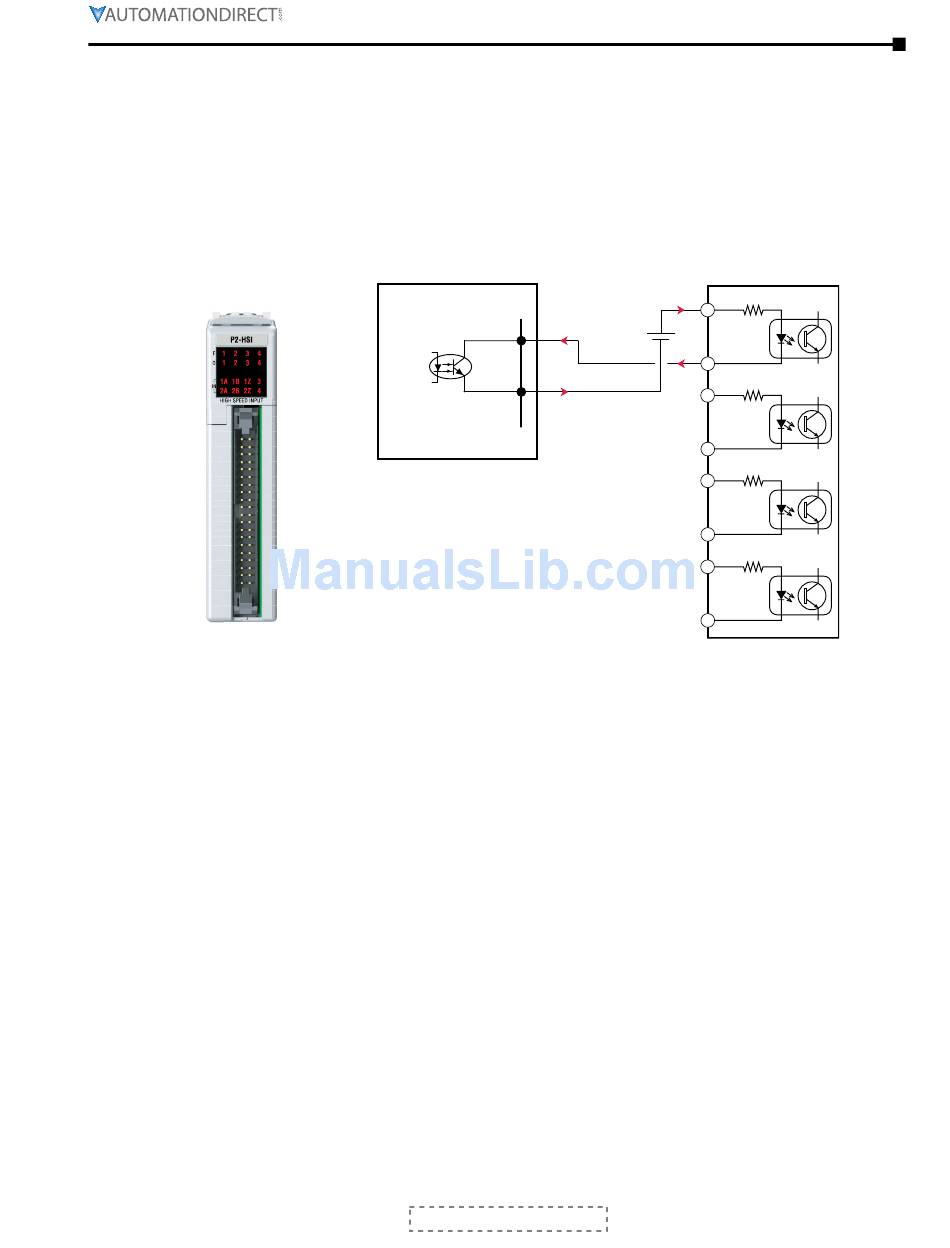

The GS4 has one high-speed pulse train output: FO. This pulse train output is based on the actual
main frequency output of the drive. A scaling factor is available to adjust the frequency.
P3.38 Frequency Output Scaling Factor:
• Actual FO pulses per second output = GS4 output frequency (Hz) x P338
Drive FO output is limited to 30V@ 30mA max. Max frequency is 100kHz (50% duty cycle).
The PLC high-speed input will have a certain amount of resistance built-in (P2-HSI module has 2kΩ
resistance). The drive terminal FO needs to see a minimum of 1kΩ resistance.
P2 Expansion Module
P2-HSI
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Appendix D: Using GS4 AC Drives with AutomationDirect PLCs
(h -
uTpuT igh speed pulse ouTpuT
GS4-xxxx
Digital Output Com.
)
5VDC to
24VDC
+
FO
–
DCM
FO output pulses
at drive output
frequency x P3.38
(scaling factor)
P2-HSI
2K Ohm
IN3+
IN3-
2K Ohm
IN4+
IN4-
2K Ohm
+1Z
-1Z
2K Ohm
+2Z
-2Z
Page D–9
