Copy Param - Copy Parameters Page (Keypad Copy) - Automation Direct DURApulse GS4 User Manual

Copy Param - Copy Parameters Page (Keypad Copy)

Copy Param
▲
001:
▼
002:
003:
001>
▼
1:Keypad→VFD
2:VFD→Keypad
VFD→ K
eypaD
001>
ExhaustFan
K → VFD
eypaD
001> P00-00
Keypad→VFD
10%
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Chapter 3: Keypad Operation and Quick-Start

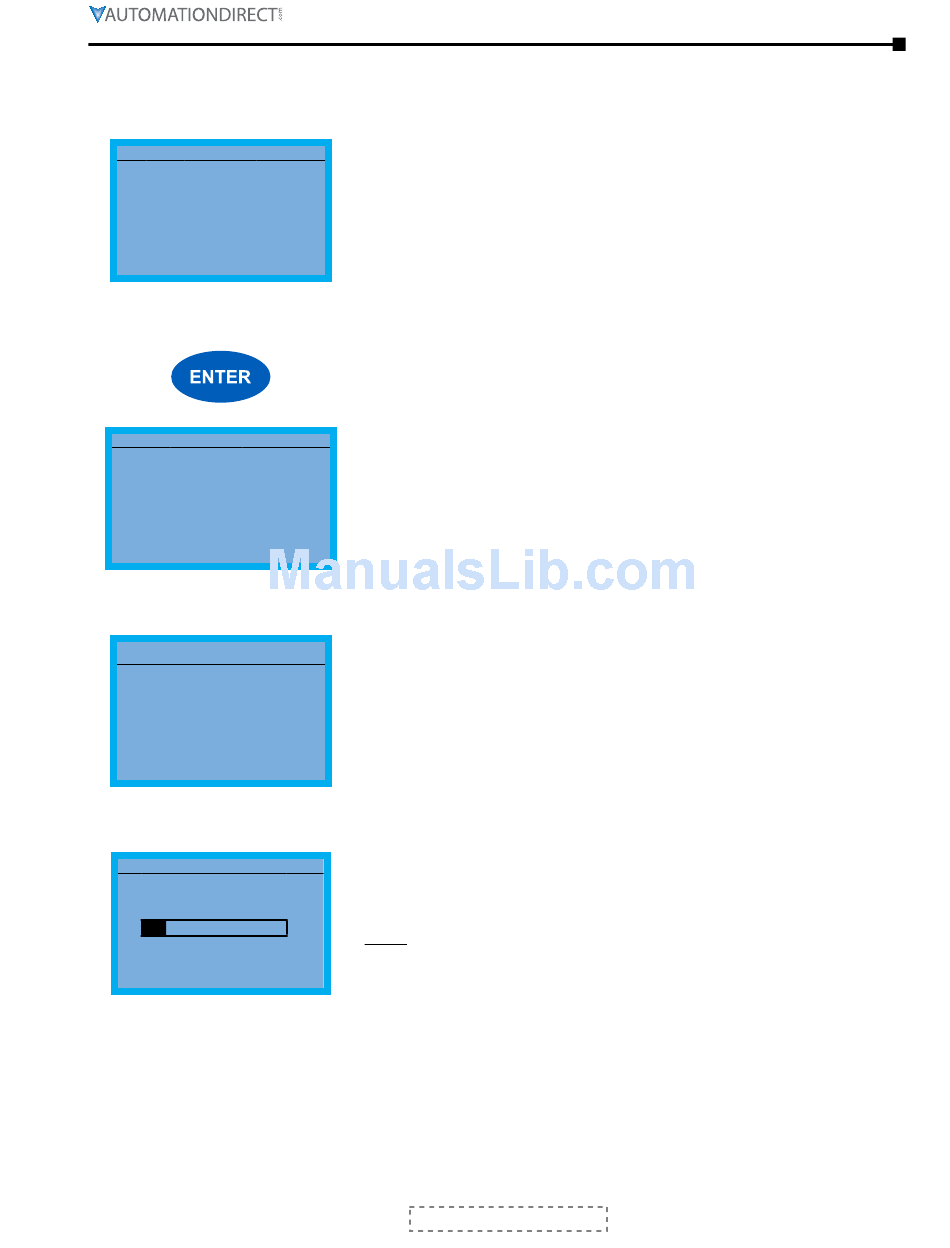

Copy Parameters is used to save up to four drive configurations
into the keypad. The keypad can then download any of these
configurations into the drive, or it can be moved to a different drive
and download the parameter settings of the original drive. Use the
Up and Down Direction keys to scroll through the four available copy
parameter locations. If a field is blank, then no copy has been made
to that location.
001: ExhaustFan
002: IntakeFan1
003: Filename02
004:
Press the Enter key to select the desired location for writing the
current parameter settings.
Use the Up and Down Direction keys to select Keypad→VFD to copy
the current parameter settings from the keypad to the drive or
VFD→Keypad to write the current parameter settings from the drive
to the keypad. Press the Enter key.
When VFD→Keypad is selected, the keypad will prompt you for a
filename to save the existing configuration into. Use the Left/Right
Arrows to scroll from character to character and the Up/Down Arrows
to change the alphanumeric character. Pressing Enter will begin the
transfer of parameters from the drive into the keypad.
When Keypad→VFD is selected, the keypad will begin the transfer of
the preselected file parameters from the keypad into the drive.
As shown in the example to the left, "001" is the file to be transferred.
(NOTE: P9.06, Parameter Copy Enable, must first be set to 1.)
Pressing F4 while in the Copy Param menu will prompt you to Delete
All 4 saved programs ("Press ENTER to clear").
